DV60-2

DV60-2 distributor (option) Diagram

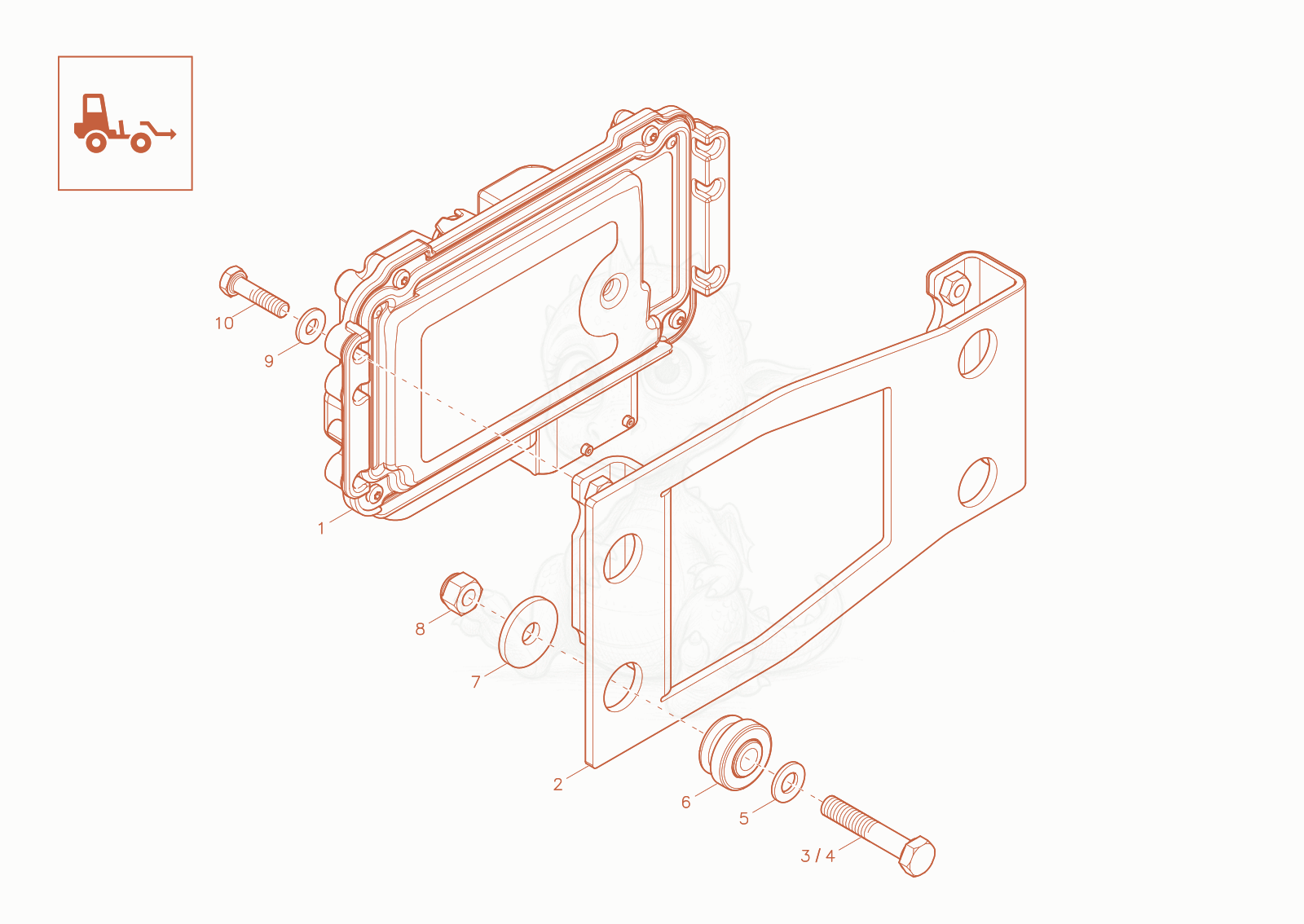

Exploded parts diagram of the distributor (option) of a Wacker Neuson DV60-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000513529
    $870.75
    Control unit RC 12-10/30 - 1000513529×1
  • 21000561443Not stocked
    bracket×1
  • 31000085392
    $0.83
    hex screw M8x40-8.8 A2C DIN933 - 1000085392×4
  • 41000015380Not stocked
    hex screw×4
  • 51000015431Not stocked
    washer×4
  • 61000438904Not stocked
    rubber buffer×4
  • 71000085607
    $0.73
    washer - 1000085607×4
  • 81000357534Not stocked
    hexagon nut×4
  • 91000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×4
  • 101000085384
    $0.84
    6-Point screw M6x25-8.8 A2C-DIN933 - 1000085384×4
