DV60-2

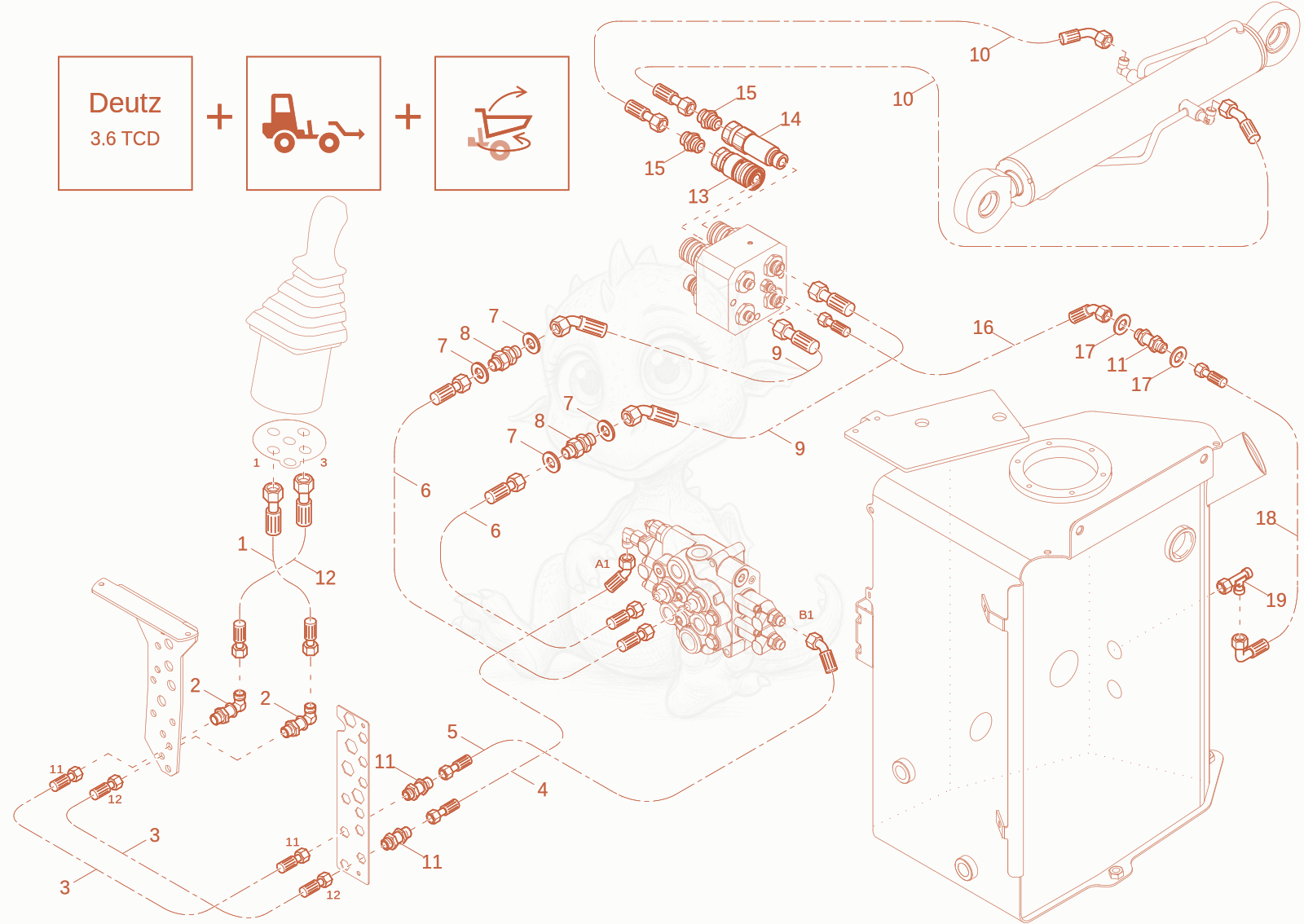

DV60-2 TILT CYLINDER OPERATION (Option) Diagram

Exploded parts diagram of the TILT CYLINDER OPERATION (Option) of a Wacker Neuson DV60-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000398900Not stocked
    Hose×1
  • 21000085047
    $9.99
    WSV08LOMDA3C - 1000085047×2
  • 31000481982
    $16.17
    SLHYDR 1 PL6,0PN8 0 PN8 0 L850,0A - 1000481982×2
  • 41000481879
    $22.70
    SLHYDR 1 PL6,0PN8 0 PN8 45 L1720 0 - 1000481879×1
  • 51000481909
    $20.57
    SLHYDR 1 PL6,0PN8 0 PN8 45 L1340 0 - 1000481909×1
  • 61000427552Not stocked
    Hose×2
  • 71000082620
    $0.08
    washer 23 - 1000082620×4
  • 81000015550Not stocked
    lock screw connection×2
  • 91000480609Not stocked
    Hose×2
  • 101000554530Not stocked
    Hose×2
  • 111000085075
    $4.46
    SV08-L - 1000085075×3
  • 121000482149Not stocked
    Hose×1
  • 131000538083Not stocked
    coupling×1
  • 141000538084Not stocked
    coupling×1
  • 151000015494Not stocked
    screw joint×2
  • 161000540603Not stocked
    Hose×1
  • 171000019126Not stocked
    u-washer×2
  • 181000540935Not stocked
    Hose×1
  • 191000085097
    $18.40
    EL08SOMDA3C - 1000085097×1
