DV90

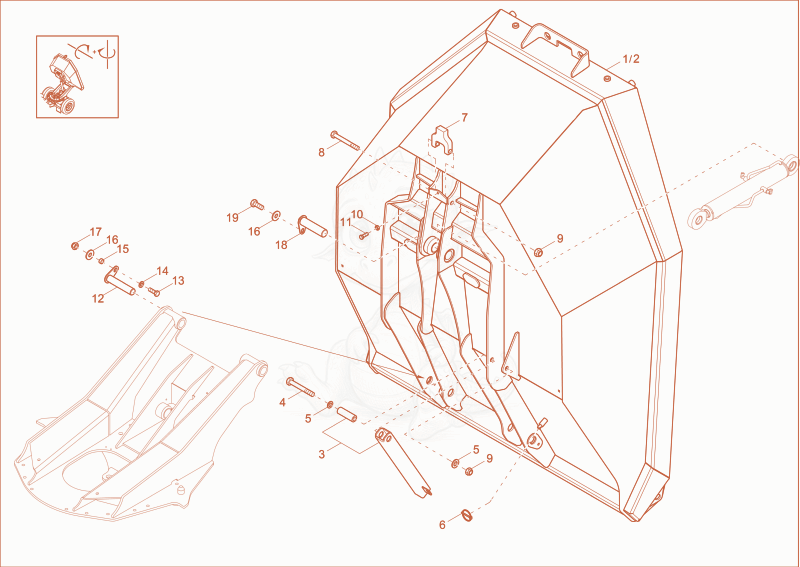

DV90 skip (option) Diagram

Exploded parts diagram of the skip (option) of a Wacker Neuson DV90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000405776
    $29,038.90
    Skip - 1000405776×1
  • 21000405781
    $29,038.90
    Skip - 1000405781×1
  • 31000396635Not stocked
    maintenance support×1
  • 41000355951Not stocked
    hex screw×1
  • 51000015441
    $0.98
    WASHER - 1000015441×2
  • 61000015457Not stocked
    cotter pin×1
  • 71000407281Not stocked
    swivel lock×1
  • 81000189843
    $10.31
    hex screw - 1000189843×1
  • 91000386501
    $4.37
    nut - 1000386501×2
  • 101000015415Not stocked
    hexagon nut×1
  • 111000085420
    $1.54
    hex screw - 1000085420×1
  • 121000325123Not stocked
    pin×2
  • 131000085370
    $1.35
    hex screw - 1000085370×2
  • 141000049219Not stocked
    washer×2
  • 151000154698
    $4.06
    WASHER - 1000154698×2
  • 161000085613
    $0.10
    washer - 1000085613×3
  • 171000357536Not stocked
    hexagon nut×2
  • 181000322845Not stocked
    pin tiltram×1
  • 191000085417
    $1.06
    hex screw - 1000085417×1
