DV90

DV90 boom offset cylinder Diagram

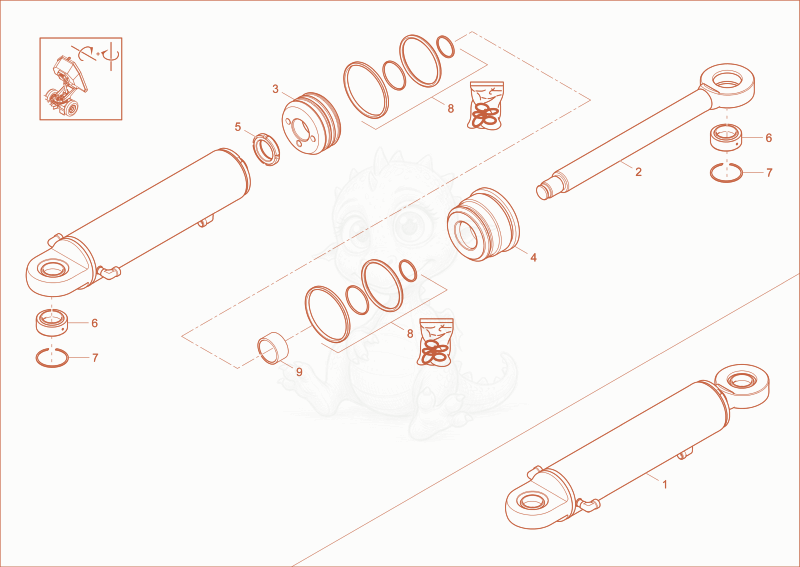

Exploded parts diagram of the boom offset cylinder of a Wacker Neuson DV90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000391527Not stocked
    boom offset cylinder×1
  • 21000407612Not stocked
    piston rod×1
  • 31000407617
    $110.26
    piston - 1000407617×1
  • 41000407624
    $173.94
    bushing - 1000407624×1
  • 51000399497
    $41.98
    Nut - 1000399497×1
  • 61000407636Not stocked
    pivoting bearing×2
  • 71000408063
    $10.96
    ring - 1000408063×2
  • 81000407606Not stocked
    seal kit×1
  • 91000407626Not stocked
    slide bearing×1
