DV90

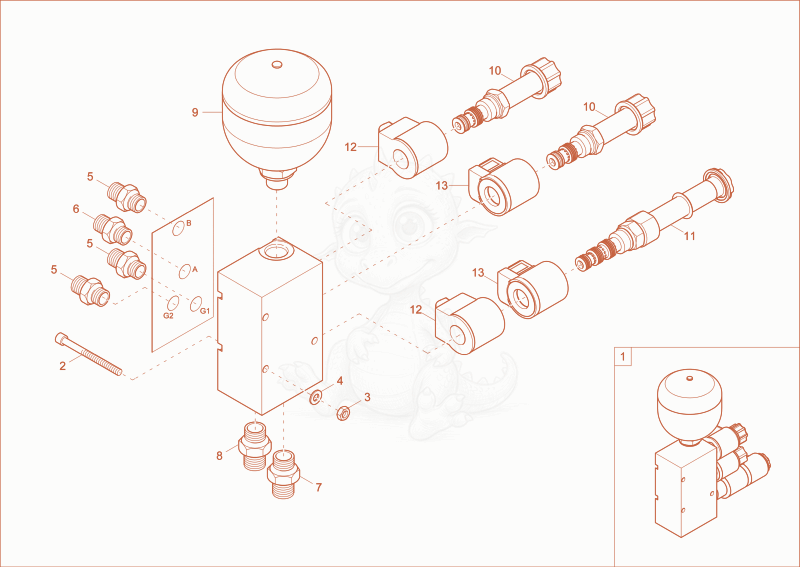

DV90 controloil unit Diagram

Exploded parts diagram of the controloil unit of a Wacker Neuson DV90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000403424Not stocked
    controloil unit×1
  • 21000085461
    $0.06
    cheese head screw M6x60-8.8 A2C - 1000085461×3
  • 31000015405Not stocked
    hexagon nut×3
  • 41000015430Not stocked
    u-washer×3
  • 51000015488Not stocked
    screw joint×3
  • 61000085128
    $3.13
    GE12LR1/4EDOMDA3C - 1000085128×1
  • 71000015489Not stocked
    screw joint×1
  • 81000015492
    $2.67
    GE12LREDOMDA3C - 1000015492×1
  • 91000263485
    $181.28
    accumulator - 1000263485×1
  • 101000317976Not stocked
    solenoid valve×2
  • 111000408421
    $253.55
    Valve - 1000408421×1
  • 121000290428
    $190.14
    magnet spool - 1000290428×2
  • 131000365401
    $22.47
    MAGNET SPOOL - 1000365401×2
