DV90

DV90 tilt ram (Option) Diagram

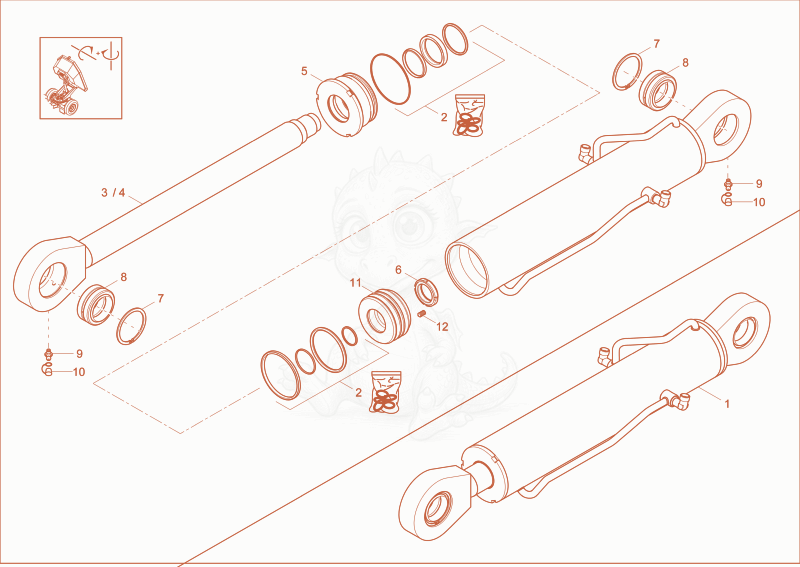

Exploded parts diagram of the tilt ram (Option) of a Wacker Neuson DV90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000458348Not stocked
    tilt ram×1
  • 21000407604Not stocked
    seal kit×1
  • 31000407610Not stocked
    piston rod×1
  • 41000478473Not stocked
    piston rod×1
  • 51000407622
    $432.60
    bushing - 1000407622×1
  • 61000407628
    $93.32
    nut - 1000407628×1
  • 71000408061
    $12.69
    ring - 1000408061×2
  • 81000407634Not stocked
    pivoting bearing×2
  • 91000015476Not stocked
    grease nipple×2
  • 101000015480Not stocked
    cap grease nipple×2
  • 111000407615
    $310.75
    piston - 1000407615×1
  • 121000478417
    $7.83
    thread pin - 1000478417×1
