DW50-2

DW50-2 device ASC (Option) Diagram

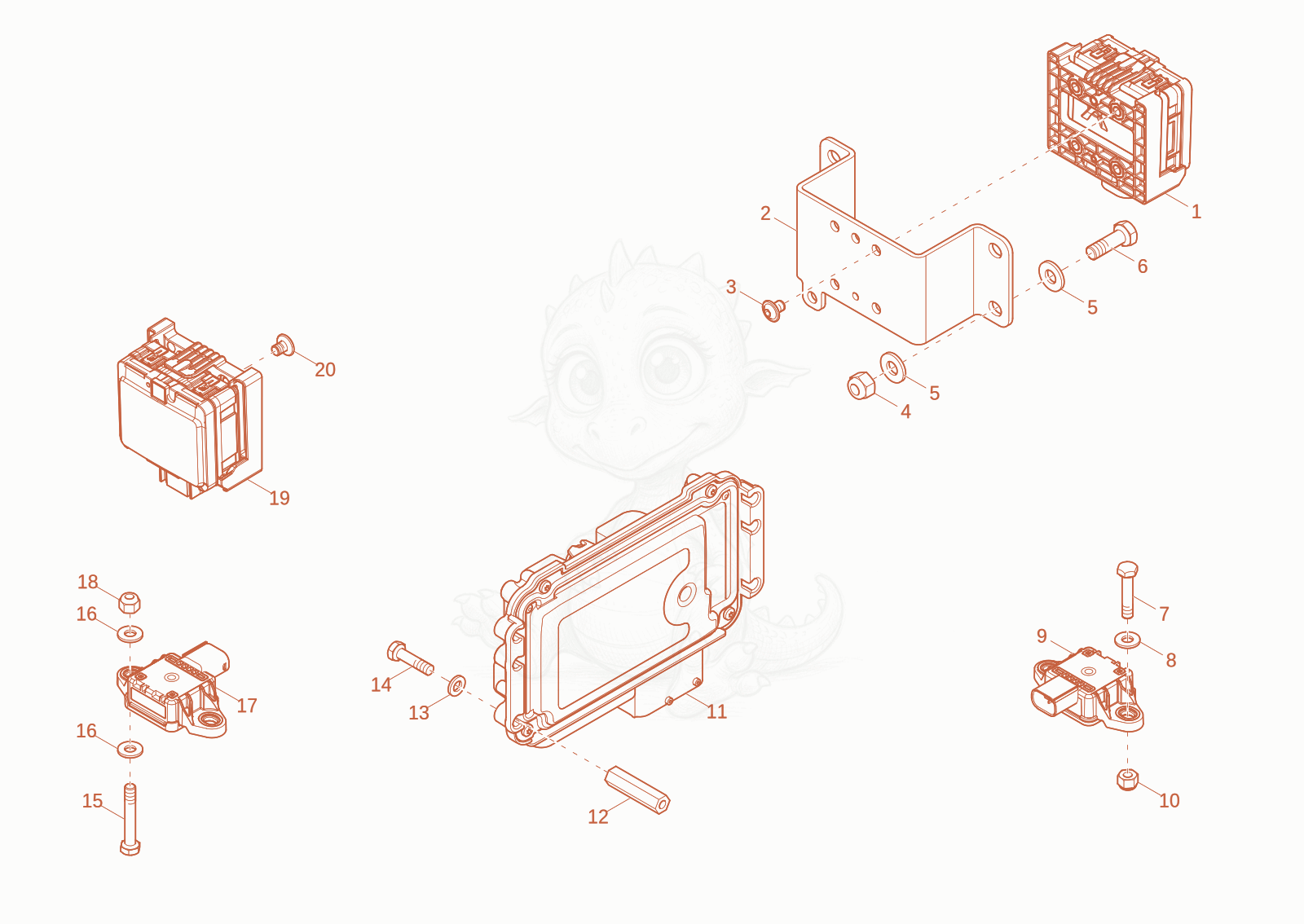

Exploded parts diagram of the device ASC (Option) of a Wacker Neuson DW50-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000449563
    $844.03
    sensor - 1000449563×1
  • 21000464184Not stocked
    bracket×1
  • 31000377507Not stocked
    flat head screw×4
  • 41000357534Not stocked
    hexagon nut×4
  • 51000015448Not stocked
    washer×8
  • 61000015343Not stocked
    hex screw×4
  • 71000015339Not stocked
    hex screw×2
  • 81000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×2
  • 91000449562
    $195.22
    sensor - 1000449562×1
  • 101000357533Not stocked
    hexagon nut×2
  • 111000513529
    $870.75
    Control unit RC 12-10/30 - 1000513529×1
  • 121000531772Not stocked
    nut×4
  • 131000015430Not stocked
    u-washer×4
  • 141000085384
    $0.84
    6-Point screw M6x25-8.8 A2C-DIN933 - 1000085384×4
  • 151000085385
    $0.83
    hex screw - 1000085385×2
  • 161000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×4
  • 171000449562
    $195.22
    sensor - 1000449562×1
  • 181000357533Not stocked
    hexagon nut×2
  • 191000513621
    $844.03
    sensor - 1000513621×1
  • 201000377507Not stocked
    flat head screw×4
