DW50-2

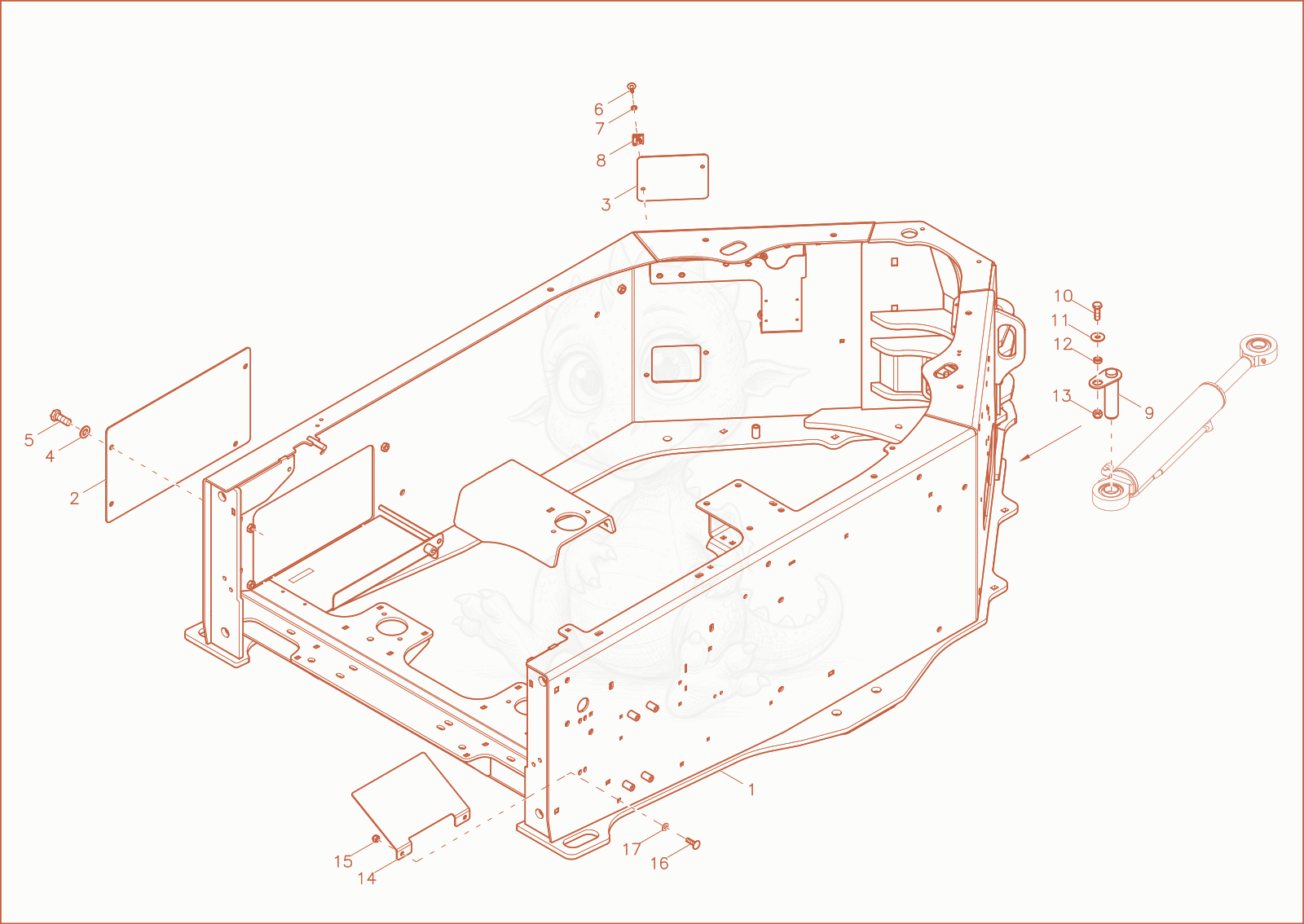

DW50-2 rear part frame Diagram

Exploded parts diagram of the rear part frame of a Wacker Neuson DW50-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000487798Not stocked
    rear frame×1
  • 21000463036Not stocked
    Maintenance cover×1
  • 31000463035Not stocked
    Maintenance cover×1
  • 41000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 51000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
  • 61000477079Not stocked
    lock×2
  • 71000515973
    $0.78
    retaining disk M6 53062FST6 - 1000515973×2
  • 81000477078Not stocked
    nut×2
  • 91000464530
    $45.64
    pin - 1000464530×1
  • 101000015346Not stocked
    hex screw×1
  • 111000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×1
  • 121000151025
    $3.03
    washer 18/12x5 - 1000151025×1
  • 131000357535Not stocked
    hexagon nut×1
  • 141000488983
    $82.69
    bracket - 1000488983×1
  • 151000357534Not stocked
    hexagon nut×2
  • 161000431384Not stocked
    screw×2
  • 171000015448Not stocked
    washer×2
