DW50-2

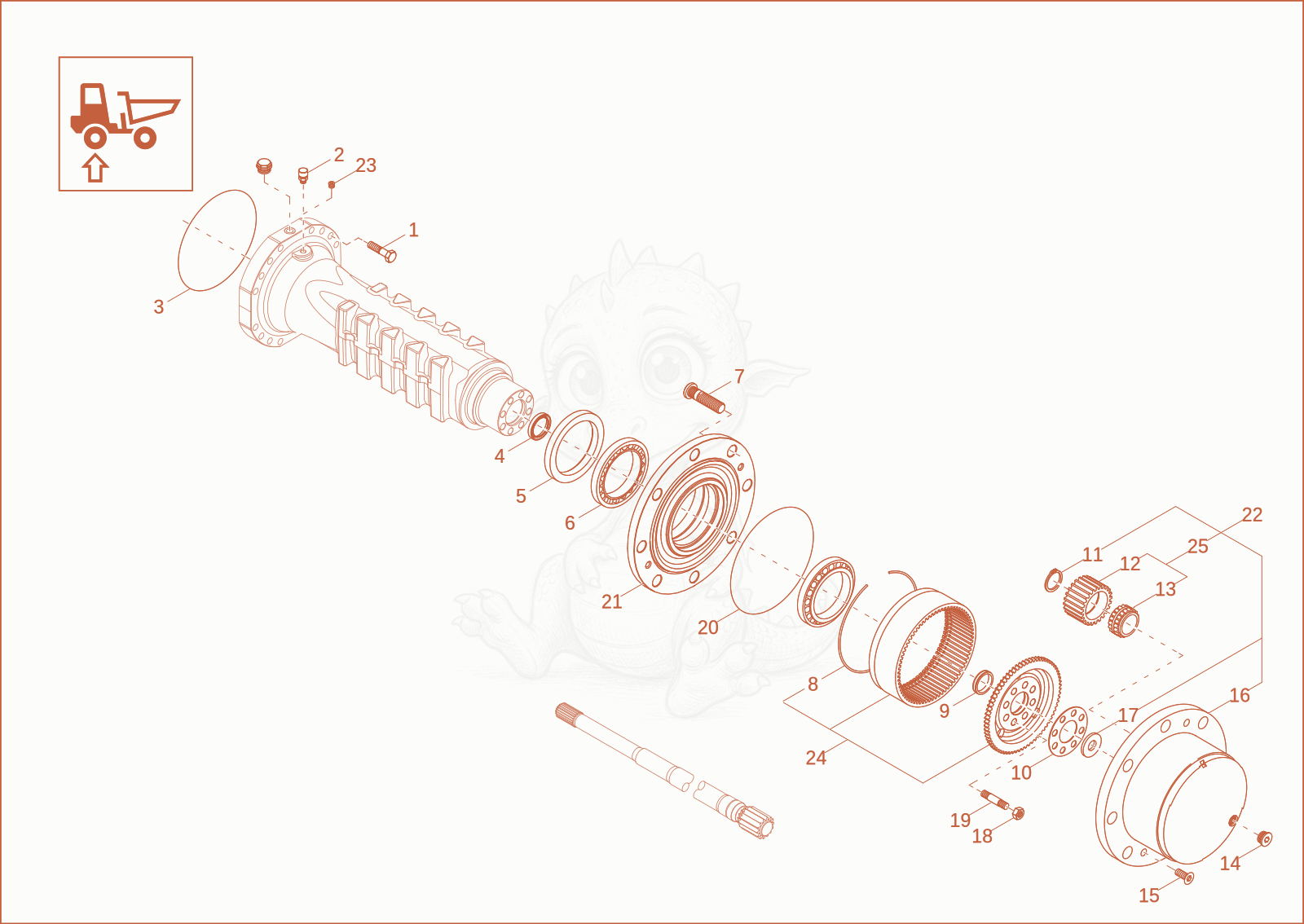

DW50-2 AXLE CASE, WHEEL HUB Diagram
- SCREW - 1000105843×28
- X - 1000165904 Breather - 1000113680×1
- O-ring - 1000105848×2
- RING - 1000105851×2
- ROTARY SHAFT SEAL - 1000087865×2
- Bearing 1000105823×4
- WHEEL BOLT - 1000105855×16
- lock ring - 1000105857×2
- CENTERING RING - 1000105882×2
- lock plate - 1000113780×2
- LOCK RING - 1000105888×6
- 121000476359Not stockedplanet gear×6
- BEARING - 1000476360×6
- PLUG - 1000150323×2
- Countersunk screw - 1000105893×4
- planetary housing - 1000105894×2
- WASHER - 1000105897×2
- nut - 1000150438×8
- STUD - 1000150437×8
- O-ring - 1000105902×2
- 211000479464Not stockedwheel hub×2
- Kitplanetaryhousing 1000164528×2
- LOCK SCREW - 1000106914×1
- Hollowwheelsupport 1000150444×2
- 251000407641Not stockedplanet gear×6
