DW50-2

DW50-2 wiring harness Diagram

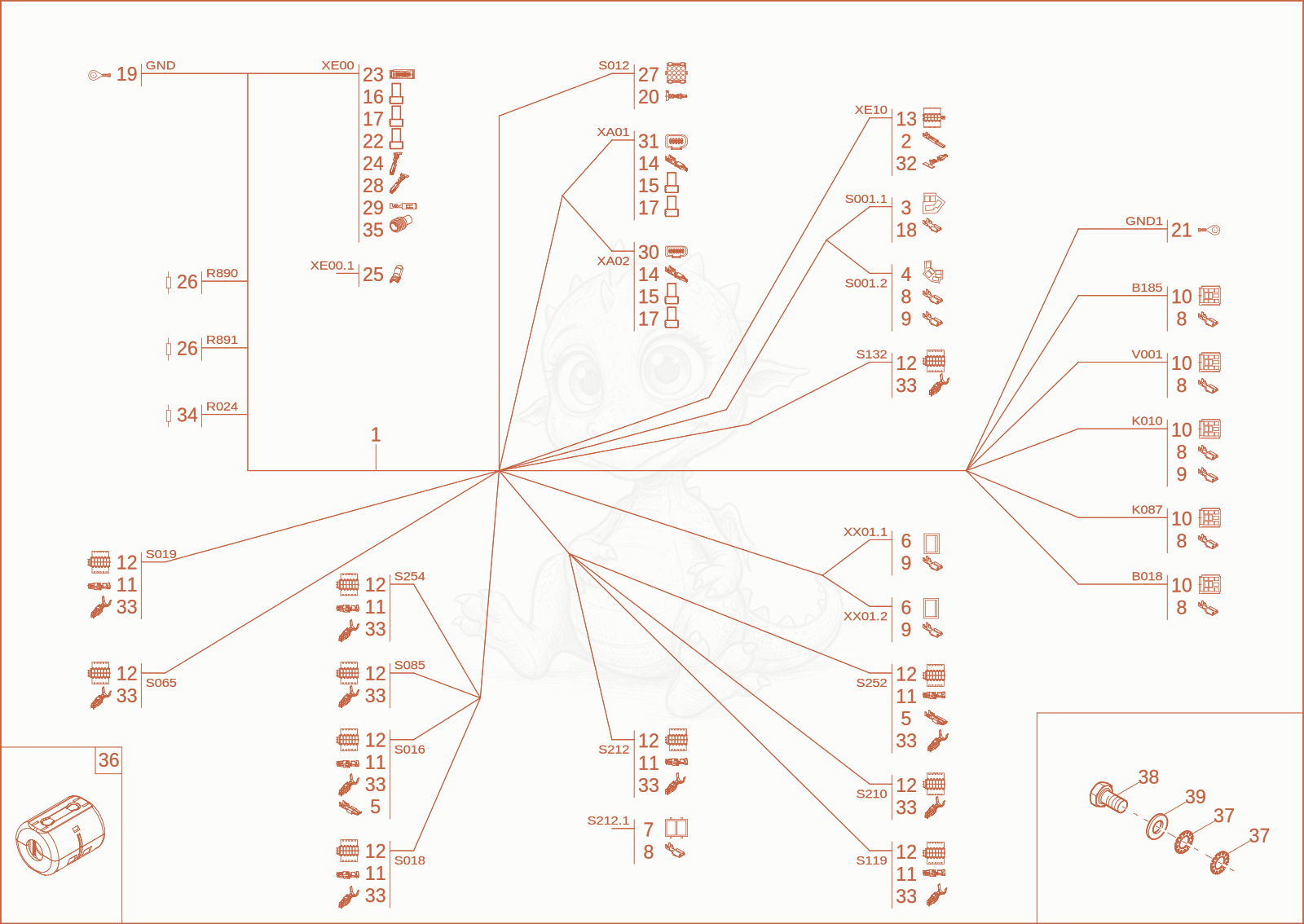

Exploded parts diagram of the wiring harness of a Wacker Neuson DW50-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000528171Not stocked
    wiring harness×1
  • 21000027179Not stocked
    timer contact×3
  • 31000027368Not stocked
    central plug×1
  • 41000027386
    $6.47
    PLUG - 1000027386×1
  • 51000027159
    $0.59
    TIMER CONTACT - 1000027159×2
  • 61000027435Not stocked
    insulating sleeve×2
  • 71000095336Not stocked
    plug sleeve housing×1
  • 81000095370
    $0.66
    plug sleeve - 1000095370×24
  • 91000095371Not stocked
    plug sleeve×4
  • 101000101071
    $7.72
    Plug housing - 1000101071×5
  • 111000103753
    $3.01
    Timer Contact - 1000103753×14
  • 121000103949
    $5.74
    bushing housing - 1000103949×11
  • 131000104431
    $2.68
    bushing housing - 1000104431×1
  • 141000104732
    $3.06
    CONTACT - 1000104732×16
  • 151000104738
    $1.51
    seal - 1000104738×16
  • 161000104739
    $16.29
    seal - 1000104739×6
  • 171000104740
    $1.41
    lock plug - 1000104740×14
  • 181000107750
    $5.41
    plug sleeve - 1000107750×4
  • 191000107754
    $2.77
    cable lug - 1000107754×1
  • 201000107779
    $0.39
    BUSHING CONTACT - 1000107779×10
  • 211000110764
    $9.03
    cable lug - 1000110764×1
  • 221000260162
    $0.42
    seal - 1000260162×38
  • 231000260163
    $44.53
    plug sleeve housing - 1000260163×1
  • 241000260164
    $1.38
    Tube - 1000260164×38
  • 251000261548
    $10.49
    cover cap - 1000261548×1
  • 261000312303
    $0.32
    resistor - 1000312303×2
  • 271000334439Not stocked
    bushing housing×1
  • 281000338903Not stocked
    bushing contact×12
  • 291000338907Not stocked
    Tube×6
  • 301000347542Not stocked
    housing×1
  • 311000347631Not stocked
    housing×1
  • 321000362527Not stocked
    bushing contact×3
  • 331000432365Not stocked
    timer contact×56
  • 341000433822Not stocked
    resistor×1
  • 351000468063
    $1.47
    Seal - 1000468063×12
  • 361000500173Not stocked
    plug×1
  • 371000095354
    $0.03
    Lock washer DIN6797 A10,5 - 1000095354×4
  • 381000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 391000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
