DW60-3

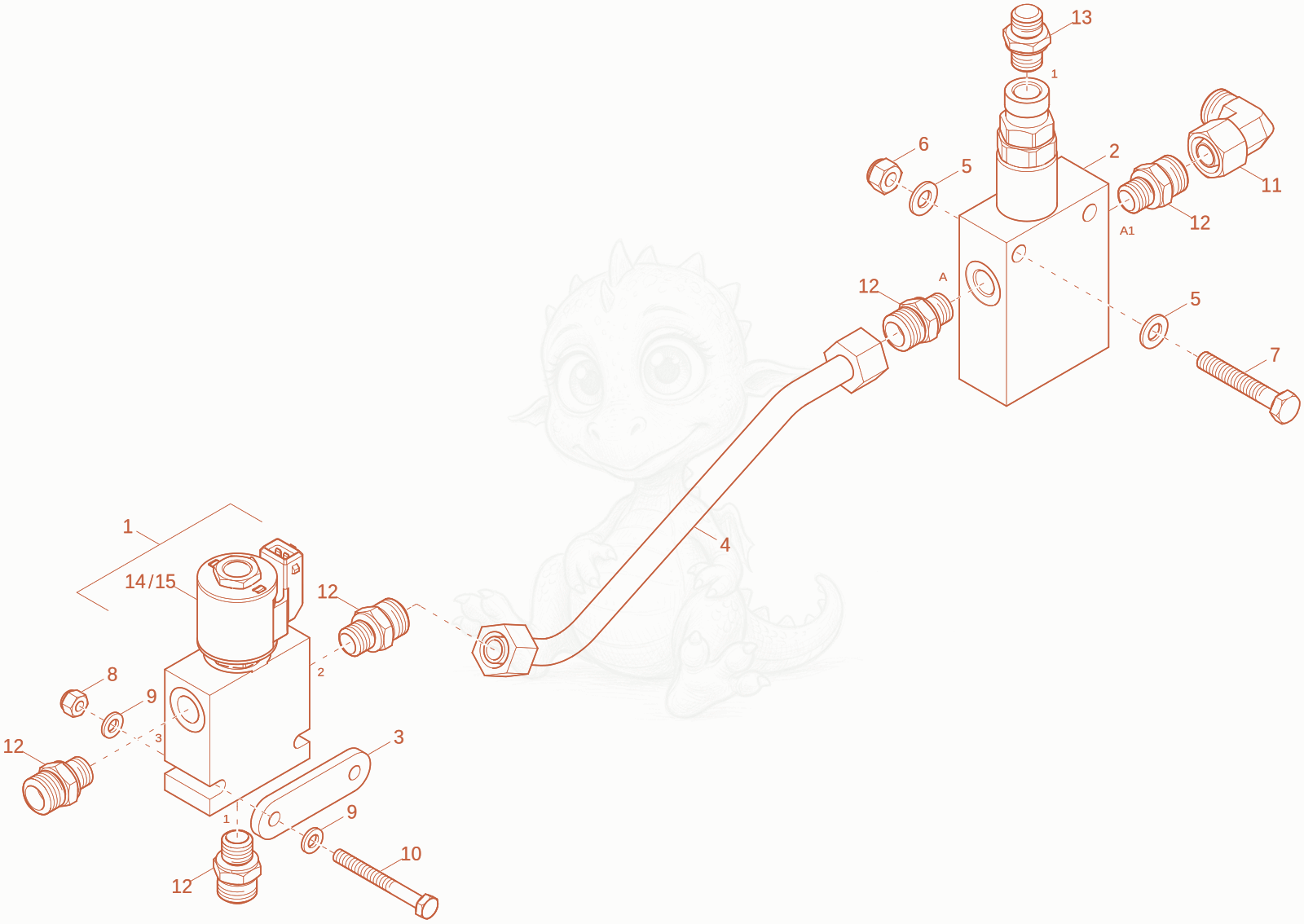

DW60-3 BRAKE VALVE Diagram

Exploded parts diagram of the BRAKE VALVE of a Wacker Neuson DW60-3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000178019
    $179.59
    VALVE - 1000178019×1
  • 21000453162
    $248.58
    valve - 1000453162×1
  • 31000158577
    $9.12
    PLATE - 1000158577×1
  • 41000478788
    $17.33
    pipe line - 1000478788×1
  • 51000015431Not stocked
    washer×4
  • 61000357534Not stocked
    hexagon nut×2
  • 71000015344Not stocked
    hex screw×2
  • 81000357533Not stocked
    hexagon nut×2
  • 91000015430Not stocked
    u-washer×4
  • 101000082238
    $0.73
    HEX SCREW - 1000082238×2
  • 111000000573Not stocked
    screw joint×1
  • 121000085128
    $3.13
    GE12LR1/4EDOMDA3C - 1000085128×5
  • 131000015488Not stocked
    screw joint×1
  • 141000184586
    $44.52
    magnet spool - 1000184586×1
  • 151000111257
    $90.64
    SOLENOID - 1000111257×1
