DW60-3

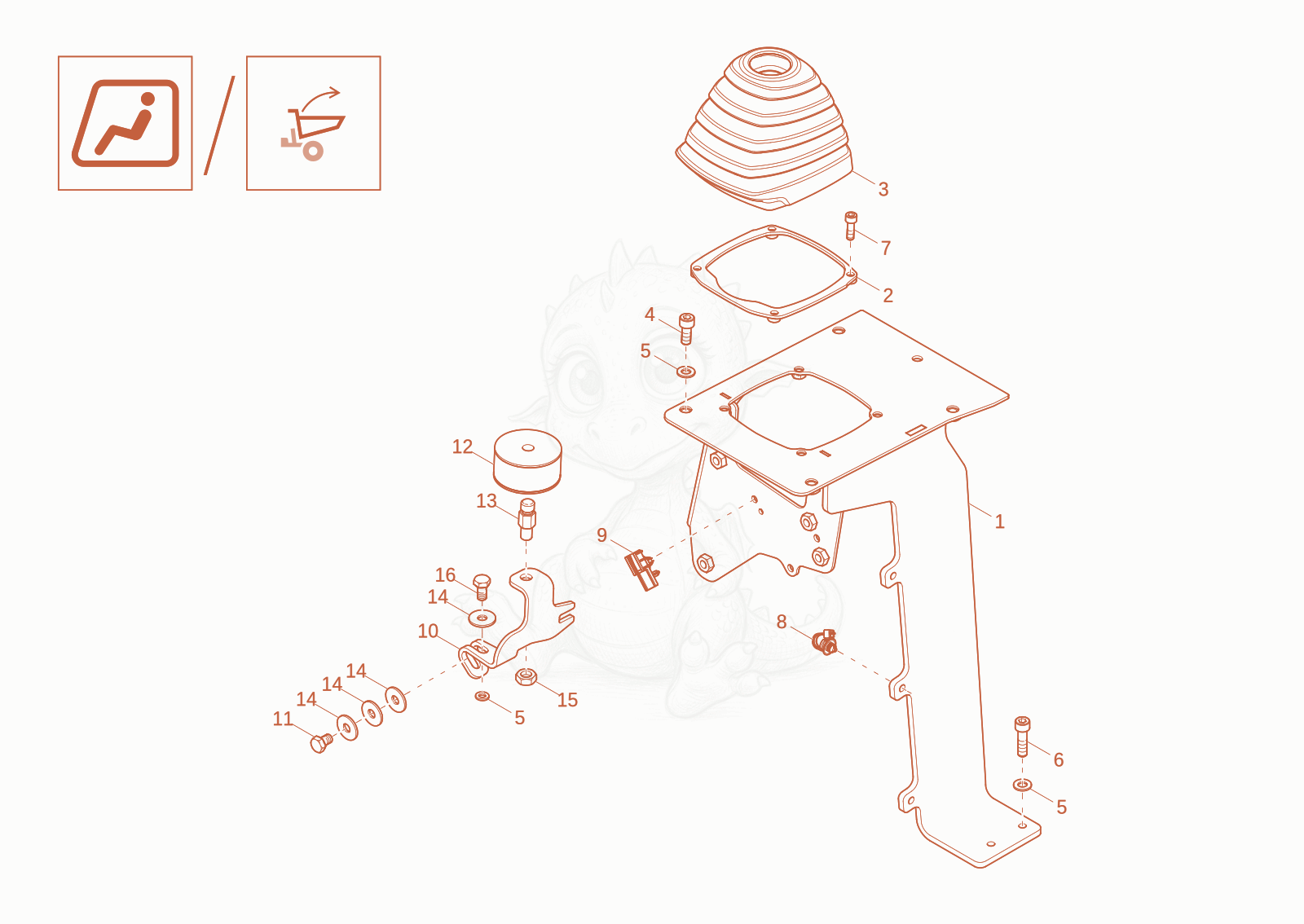

DW60-3 control bracket (Option) Diagram

Exploded parts diagram of the control bracket (Option) of a Wacker Neuson DW60-3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000504887Not stocked
    console×1
  • 21000424418Not stocked
    fixing plate×1
  • 31000341333
    $45.32
    bellow - 1000341333×1
  • 41000019593Not stocked
    cheese head screw×4
  • 51000015431Not stocked
    washer×7
  • 61000013014Not stocked
    cheese head screw×2
  • 71000085456
    $0.05
    allen screw M6x20-8.8 A2C-DIN912 - 1000085456×4
  • 81000375997Not stocked
    fixing bracket×4
  • 91000293439Not stocked
    clip×1
  • 101000428594
    $45.55
    locking - 1000428594×1
  • 111000085389
    $0.73
    hex screw M8x12-8.8 A2C DIN933 - 1000085389×1
  • 121000387210Not stocked
    rubber buffer×1
  • 131000387225Not stocked
    adapter joystik×1
  • 141000013027Not stocked
    washer×4
  • 151000015407Not stocked
    hexagon nut×1
  • 161000019136Not stocked
    hex screw×1
