DW60-3

DW60-3 front frame (option) Diagram

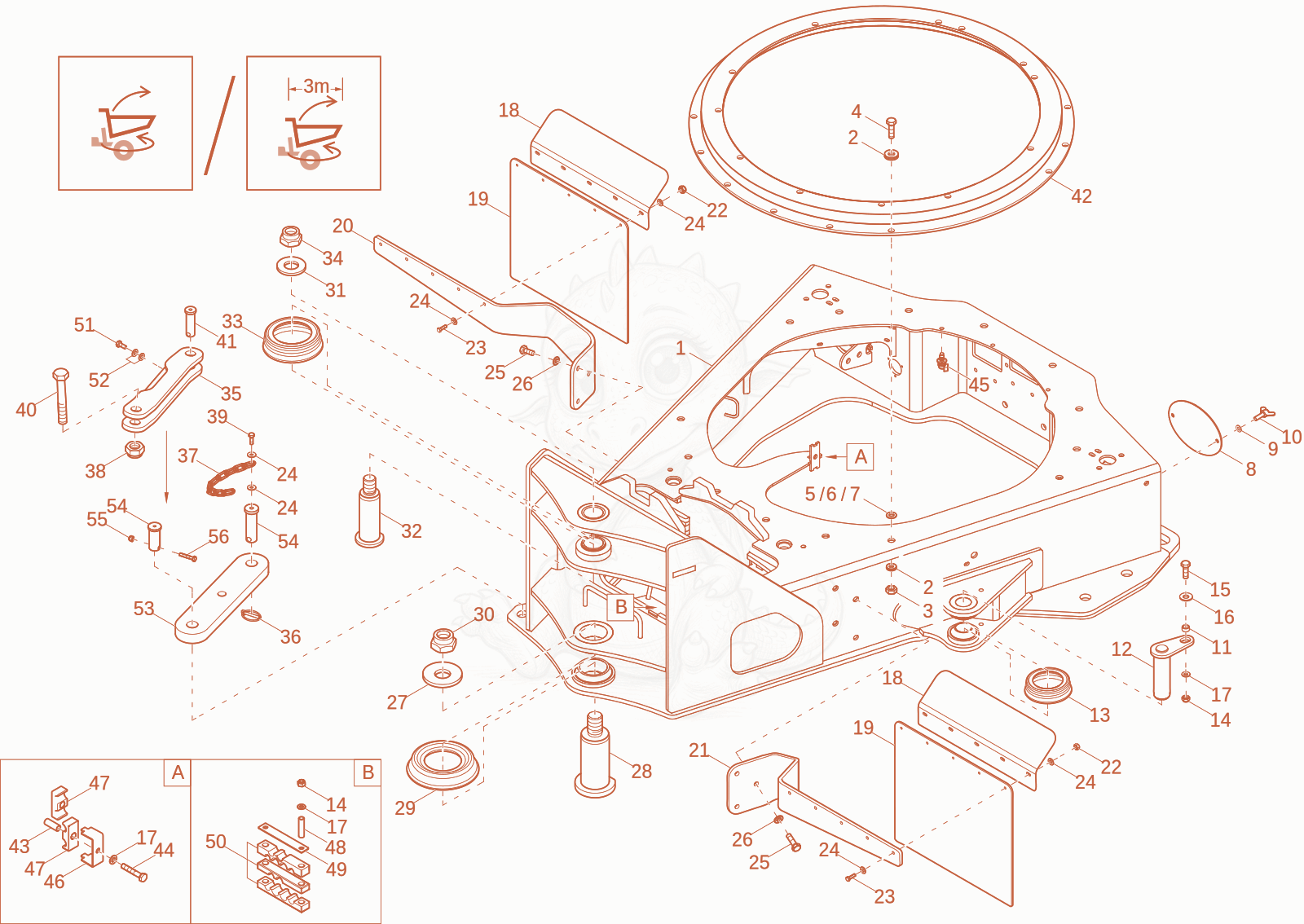

Exploded parts diagram of the front frame (option) of a Wacker Neuson DW60-3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000505214Not stocked
    front frame×1
  • 21000015451Not stocked
    northlock disc×28
  • 31000015423Not stocked
    hexagon nut×14
  • 41000085430
    $1.76
    HEX SCREW M16x50-10.9 DACRO-DIN933 - 1000085430×14
  • 51000344203
    $2.11
    spacer - 1000344203×9
  • 61000344204
    $2.11
    spacer - 1000344204×9
  • 71000344205
    $2.22
    spacer - 1000344205×8
  • 81000416562
    $21.10
    light protection screen - 1000416562×2
  • 91000015431Not stocked
    washer×4
  • 101000048699Not stocked
    thumb screw×4
  • 111000154698
    $4.06
    WASHER - 1000154698×1
  • 121000383449
    $77.22
    pin - 1000383449×1
  • 131000351711
    $12.88
    bearing - 1000351711×1
  • 141000357535Not stocked
    hexagon nut×3
  • 151000085412
    $0.87
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×1
  • 161000015442Not stocked
    u-washer×1
  • 171000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×3
  • 181000383501Not stocked
    protection plate×2
  • 191000352718Not stocked
    dust catch×2
  • 201000402667Not stocked
    wheel cover×1
  • 211000402661Not stocked
    wheel cover×1
  • 221000357533Not stocked
    hexagon nut×10
  • 231000015340Not stocked
    hex screw×10
  • 241000095343
    $1.42
    washer A 6,4 St A2C DIN9021 - 1000095343×24
  • 251000085419
    $1.05
    hex screw - 1000085419×6
  • 261000049219Not stocked
    washer×6
  • 271000383302Not stocked
    washer×1
  • 281000383301
    $225.03
    PIN - 1000383301×1
  • 291000350993
    $19.37
    seal - 1000350993×1
  • 301000383566
    $9.54
    nut - 1000383566×1
  • 311000403569Not stocked
    washer×1
  • 321000403568
    $155.58
    PIN - 1000403568×1
  • 331000403241
    $49.01
    seal - 1000403241×1
  • 341000388900Not stocked
    nut×1
  • 351000383427Not stocked
    buckle support×1
  • 361000015457Not stocked
    cotter pin×1
  • 371000097224
    $40.66
    CHAIN - 1000097224×0.35
  • 381000386501
    $4.37
    nut - 1000386501×1
  • 391000018400Not stocked
    hex screw×2
  • 401000396926Not stocked
    hex screw×1
  • 411000383448
    $18.51
    pin - 1000383448×1
  • 421000503728Not stocked
    slewing ring×1
  • 431000406359
    $50.85
    Sleeve - 1000406359×1
  • 441000085415
    $0.93
    hex screw 10x60-8.8-A2C-DIN931 - 1000085415×1
  • 451000322839Not stocked
    fixing bracket×3
  • 461000409523
    $22.06
    Lever - 1000409523×1
  • 471000409524Not stocked
    rubber piece×2
  • 481000398046Not stocked
    clamping sleeve×2
  • 491000397968
    $7.15
    PLATE - 1000397968×1
  • 501000397960Not stocked
    bracket hose×1
  • 511000018400Not stocked
    hex screw×1
  • 521000095343
    $1.42
    washer A 6,4 St A2C DIN9021 - 1000095343×2
  • 531000509912Not stocked
    buckle support×1
  • 541000550414Not stocked
    pin×2
  • 551000357533Not stocked
    hexagon nut×1
  • 561000015340Not stocked
    hex screw×1
