DW60-3

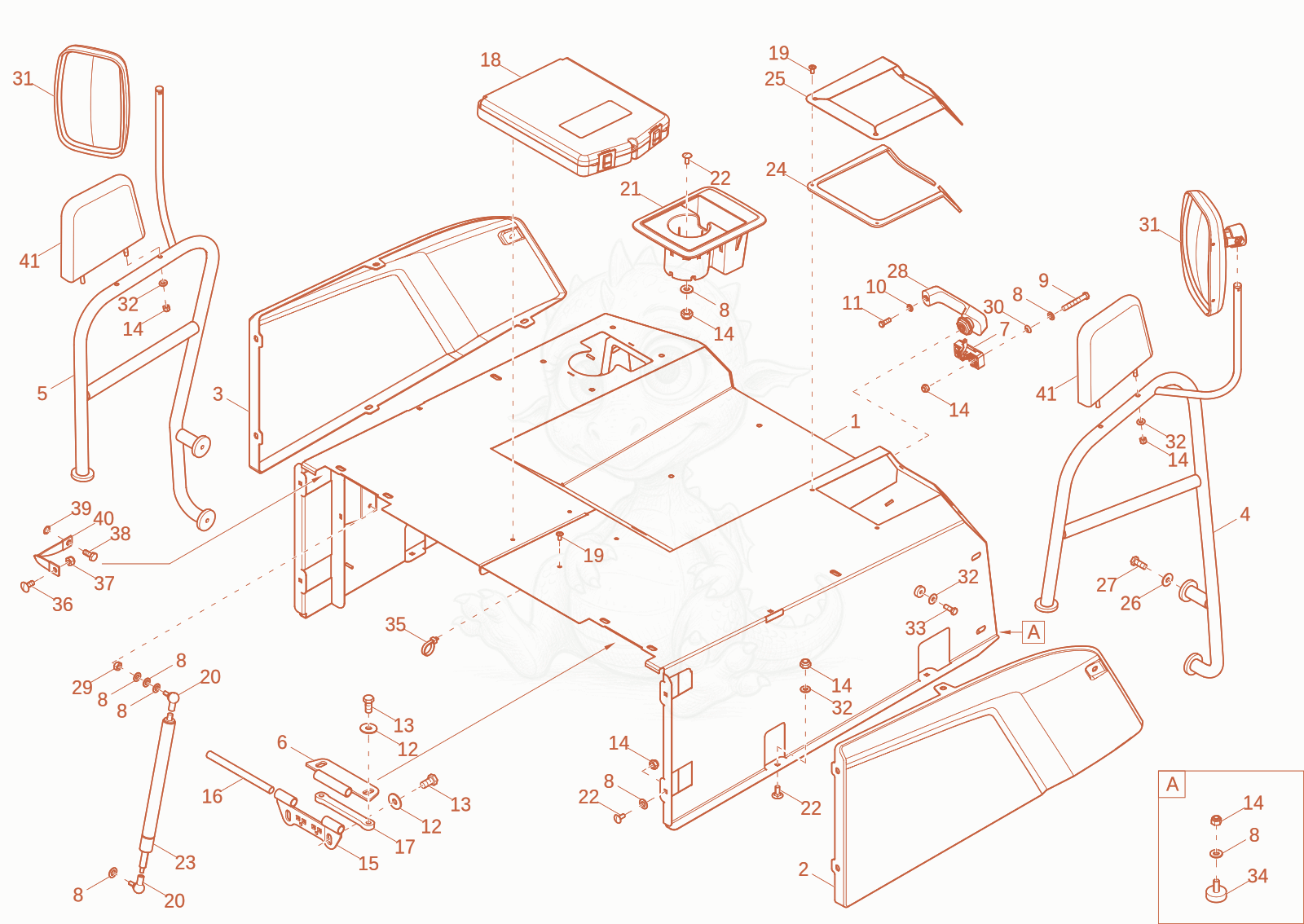

DW60-3 engine hood Diagram

11000490578
$2,004.66
engine hood - 1000490578×1
21000439909
$302.07
cover - 1000439909×1
31000439910
$302.07
cover - 1000439910×1
41000550247Not stocked
Handrail×1
51000550246Not stocked
Handrail×1
61000333968
$30.11
Hinge - 1000333968×2
71000492416Not stocked
lock×1
81000015431Not stocked
washer×17
91000015344Not stocked
hex screw×2
101000015430Not stocked
u-washer×1
111000020553Not stocked
hex screw×1
121000085613
$0.10
washer - 1000085613×8
131000015347Not stocked
hex screw×8
141000357534Not stocked
hexagon nut×19
151000467623
$27.24
hinge - 1000467623×2
161000333969
$11.75
PIN - 1000333969×2
171000336082
$27.60
plate - 1000336082×2
181000081206
$40.96
documents box - 1000081206×1
191000326519Not stocked
flat head screw×8
201000222383
$8.59
ball and socket AS13 - 1000222383×4
211000425596
$106.94
Bracket - 1000425596×1
221000085557
$0.78
flat head screw - 1000085557×11
231000529155
$58.25
Gas spring 1000N/ L-702mm/ Hub-300mm - 1000529155×2
241000426316
$69.81
support - 1000426316×1
251000467570Not stocked
rubber seal×1
261000092303
$0.86
Washer 10,5 St A2C - 1000092303×6
271000015364Not stocked
hex screw×6
281000012882
$49.53
handle - 1000012882×1
291000013021Not stocked
hexagon nut×2
301000388437Not stocked
sleeve×2
311000264124
$82.20
mirror - 1000264124×2
321000015448Not stocked
washer×12
331000019136Not stocked
hex screw×2
341000153159
$24.79
rubber buffer - 1000153159×2
351000375997Not stocked
fixing bracket×1
361000404696Not stocked
flat head screw×1
371000357535Not stocked
hexagon nut×1
381000015345
$1.55
Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×1
391000082683
$0.12
EDGED DISC - 1000082683×1
401000069009Not stocked
earth strap×1
411000330687
$412.63
Armrest - 1000330687×2
