DW90 Dumper

DW90 control valve Diagram

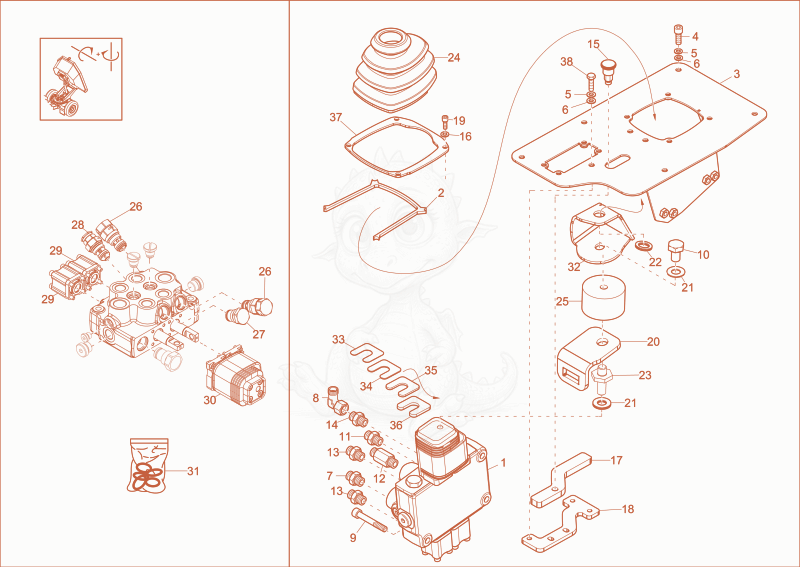

Exploded parts diagram of the control valve of a Wacker Neuson DW90, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000329170Not stocked
control block×1
21000351705Not stocked
shim×1
31000345221Not stocked
cover plate×1
41000019593Not stocked
cheese head screw×5
51000015437Not stocked
lock washer×11
61000015431Not stocked
washer×11
71000015494Not stocked
screw joint×1
81000015513Not stocked
screw joint×1
91000085464
$1.53
cheese head screw - 1000085464×3
101000013009Not stocked
hex screw×1
111000015491Not stocked
screw joint×1
121000263161
$69.04
screw joint 10L-3/8" EDL=51 - 1000263161×1
131000015533Not stocked
screw joint×2
141000082979
$6.95
GE18LR1/2EDOMDA3C - 1000082979×1
151000247956
$27.90
pin detent - 1000247956×1
161000015436Not stocked
lock washer×4
171000345225Not stocked
locking×1
181000345229Not stocked
thread plate×1
191000085456
$0.05
allen screw M6x20-8.8 A2C-DIN912 - 1000085456×4
201000345224Not stocked
locking sheet×1
211000082678
$1.36
NORTHLOCK DISC - 1000082678×2
221000015450Not stocked
northlock disc×1
231000332986
$7.51
SCREW - 1000332986×1
241000341333
$45.32
bellow - 1000341333×1
251000332828Not stocked
rubber buffer×1
261000333194Not stocked
pressure limit reliefvalve×2
271000333234Not stocked
non return valve×1
281000329929Not stocked
Port relief valve×1
291000333211Not stocked
back adjust stick set×2
301000333196Not stocked
lever fastening set×1
311000333193Not stocked
seal kit×1
321000345227
$46.91
BRACKET - 1000345227×1
331000333027
$4.41
shim - 1000333027×1
341000333026
$3.94
shim - 1000333026×1
351000333025
$5.07
shim - 1000333025×1
361000333024
$6.85
shim - 1000333024×1
371000351706Not stocked
fixing plate×1
381000015343Not stocked
hex screw×3
