DW90 Dumper

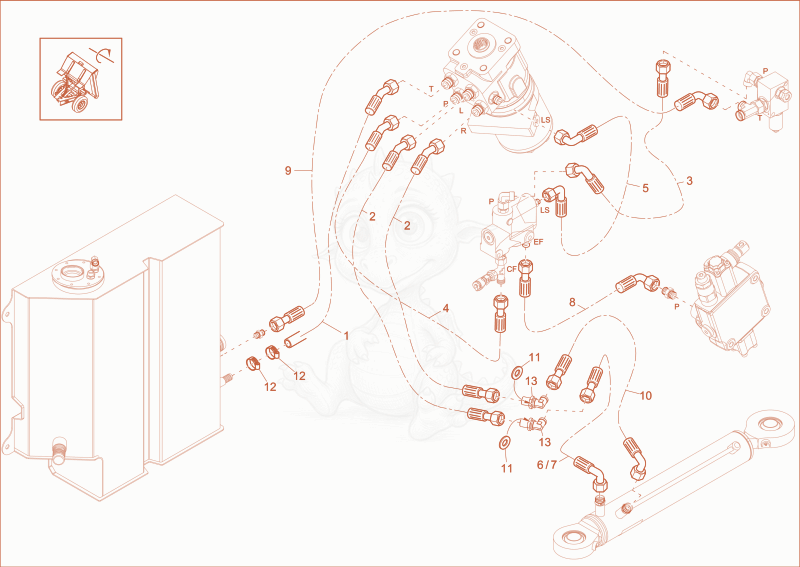

DW90 INSTALLATION STEERING Diagram

Exploded parts diagram of the INSTALLATION STEERING of a Wacker Neuson DW90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000331422
    $86.69
    SLHYDR 1SC 19 PN22 45 L1250 0 - 1000331422×1
  • 21000331451
    $83.51
    SLHYDR 2SC 16 PN18 45 PN18 0 L800,0 0 - 1000331451×2
  • 31000331376
    $69.96
    SLHYDR 2SC 12 PN15 0 PN15 90 L1100 0 - 1000331376×1
  • 41000331418Not stocked
    Hose×1
  • 51000331453
    $30.65
    SLHYDR 2SC 6,0PN8 90 PN8 0 L300,0 0 - 1000331453×1
  • 61000331438
    $65.44
    SLHYDR 2SC 16 PN18 0 PN18 90 L380,0 0 - 1000331438×1
  • 71000349176Not stocked
    Hose×1
  • 81000331377
    $111.60
    SLHYDR 2SC 12 PN15 0 PN15 90 L3000 0 - 1000331377×1
  • 91000330566Not stocked
    Hose×1
  • 101000331439
    $76.07
    SLHYDR 2SC 16 PN18 0 PN18 90 L630,0 0 - 1000331439×1
  • 111000151414
    $1.81
    WASHER - 1000151414×2
  • 121000019590Not stocked
    hose clamp×2
  • 131000028331Not stocked
    screw joint×2
