DW90 Dumper

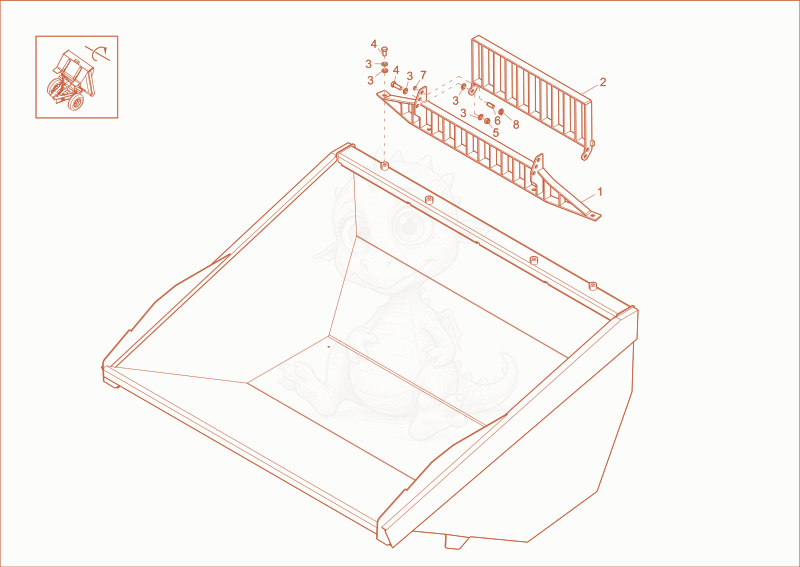

DW90 protecting screen (Option) Diagram

Exploded parts diagram of the protecting screen (Option) of a Wacker Neuson DW90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000351107
    $847.25
    KIT Frontguard - 1000351107×1
  • 21000351108
    $872.67
    KIT Frontguard - 1000351108×1
  • 31000015440Not stocked
    u-washer×14
  • 41000047872Not stocked
    hex screw×6
  • 51000018412Not stocked
    hexagon nut×6
  • 61000247954
    $13.54
    pin DM=20x47 - 1000247954×2
  • 71000095358
    $1.34
    lock ring 20x1,2 - 1000095358×2
  • 81000050585Not stocked
    cotter pin×2
