ET18

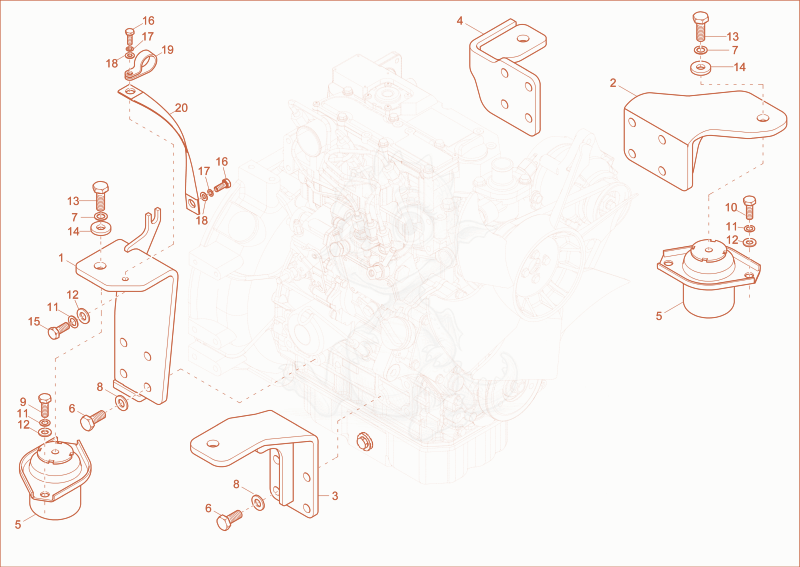

ET18 Engine bedding Diagram

Exploded parts diagram of the Engine bedding of a Wacker Neuson ET18, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000263567
    $43.07
    Mountingbracket 1000263567×1
  • 21000261945
    $37.86
    mounting bracket - 1000261945×1
  • 31000347177Not stocked
    mounting bracket×1
  • 41000264370
    $22.61
    mounting bracket - 1000264370×1
  • 51000004321
    $44.81
    hydro.bearing - 1000004321×4
  • 61000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×16
  • 71000015438Not stocked
    lock washer×4
  • 81000426230Not stocked
    lock washer×16
  • 91000013008Not stocked
    hex screw×4
  • 101000019450Not stocked
    cheese head screw×4
  • 111000015437Not stocked
    lock washer×8
  • 121000015431Not stocked
    washer×12
  • 131000015348Not stocked
    hex screw×4
  • 141000015434Not stocked
    washer×4
  • 151000013008Not stocked
    hex screw×4
  • 161000085382
    $0.70
    HEX SCREW - 1000085382×3
  • 171000015436Not stocked
    lock washer×1
  • 181000015430Not stocked
    u-washer×1
  • 191000032218Not stocked
    pipe clamp×1
  • 201000064990Not stocked
    earth strap×1
