ET18

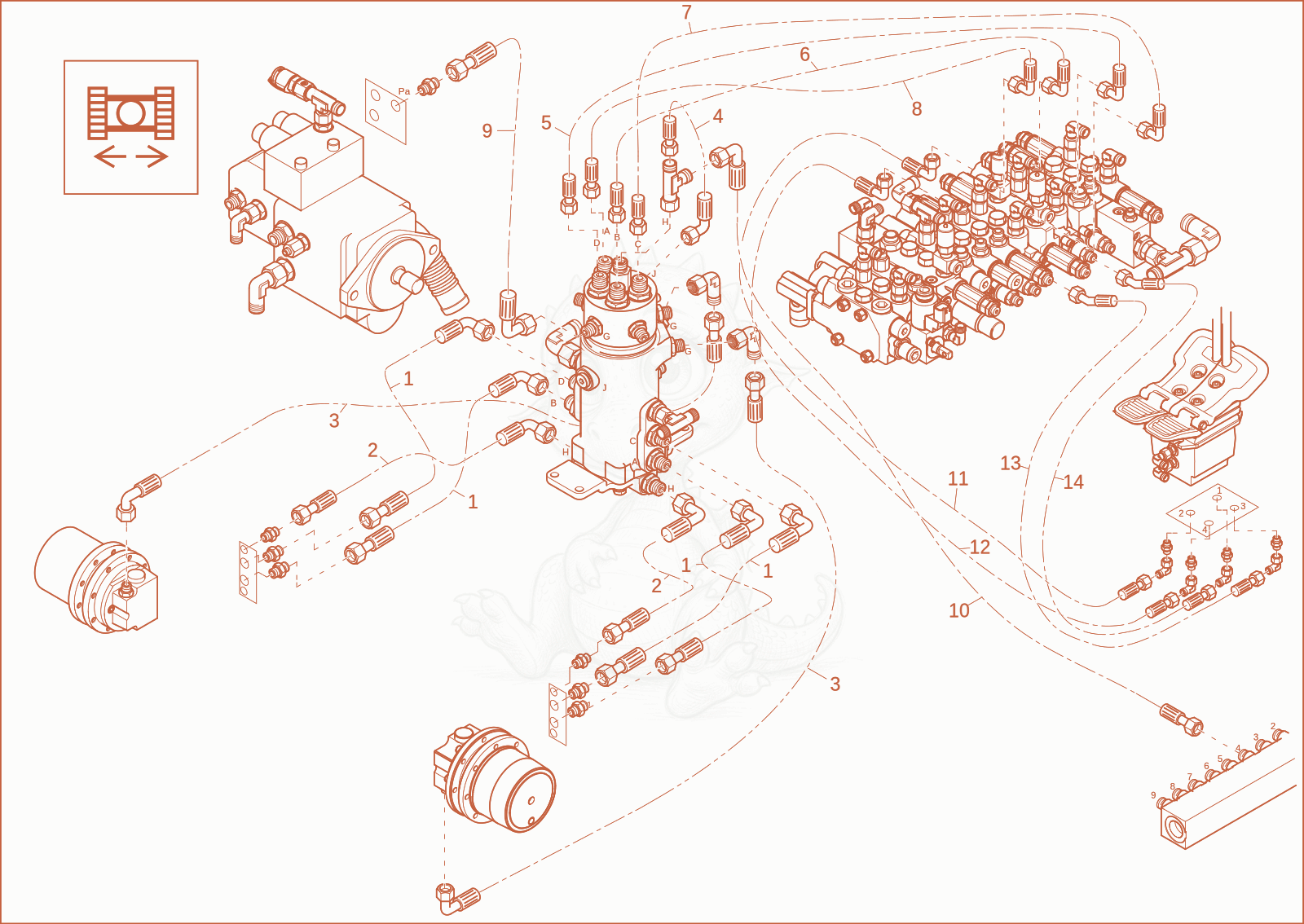

ET18 TRAVEL MOTOR INSTALLATION (OPTION) Diagram

Exploded parts diagram of the TRAVEL MOTOR INSTALLATION (OPTION) of a Wacker Neuson ET18, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000279169
    $59.49
    SLHYDR 2SC 10 PN12 90 PN12 0 L950,0S0 - 1000279169×4
  • 21000411249Not stocked
    Hose×2
  • 31000411250Not stocked
    Hose×2
  • 41000280532
    $41.60
    SLHYDR 1SCP5,0PN8 90 PN8 0 L170,0 0 - 1000280532×1
  • 51000077127
    $12.76
    SLHYDR 2SC 10 PN12 90 PN12 0 L430,0 0 - 1000077127×1
  • 61000076941
    $13.33
    SLHYDR 2SC 10 PN12 90 PN12 0 L500,0 0 - 1000076941×1
  • 71000077112
    $14.36
    SLHYDR 2SC 10 PN12 90 PN12 0 L400,0 0 - 1000077112×1
  • 81000076890
    $20.52
    SLHYDR 2SC 10 PN12 90 PN12 0 L450,0 0 - 1000076890×1
  • 91000280497
    $47.72
    SLHYDR 1SCP5,0PN8 90 PN8 0 L1400 0 - 1000280497×1
  • 101000277502
    $36.56
    SLHYDR 1SCP5,0PN8 90 PN8 0 L600,0 0 - 1000277502×1
  • 111000277450
    $26.73
    SLHYDR 1SCP5,0PN8 90 PN8 0 L500,0 0 - 1000277450×1
  • 121000277501
    $33.18
    SLHYDR 1SCP5,0PN8 90 PN8 0 L550,0 0 - 1000277501×1
  • 131000277504
    $26.11
    SLHYDR 1SCP5,0PN8 45 PN8 0 L400,0 0 - 1000277504×1
  • 141000277517
    $23.57
    SLHYDR 1SCP5,0PN8 45 PN8 0 L280,0 0 - 1000277517×1
