ET18

ET18 boom cylinder Diagram

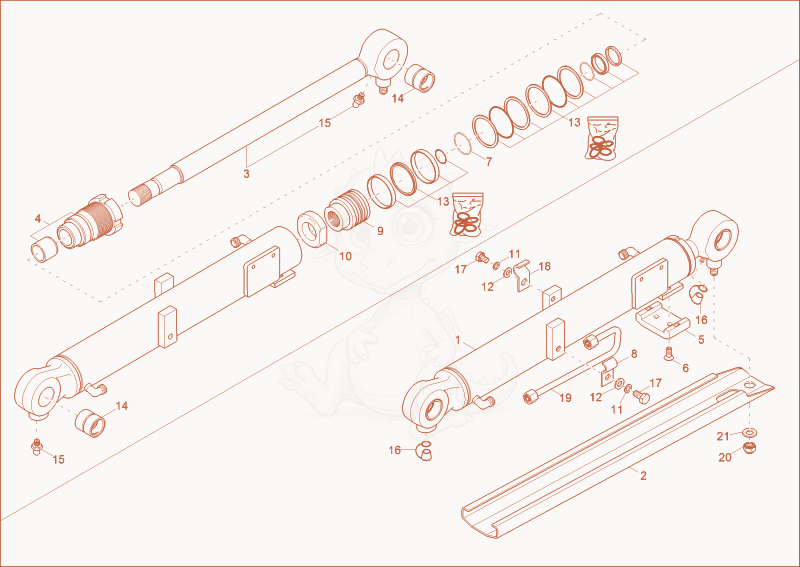

Exploded parts diagram of the boom cylinder of a Wacker Neuson ET18, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000273901Not stocked
    boom cylinder×1
  • 21000274136
    $66.55
    Protectingrail 1000274136×1
  • 31000276733
    $1,159.18
    PISTON ROD - 1000276733×1
  • 41000276737
    $487.47
    Guidebushing 1000276737×1
  • 51000295232
    $6.59
    guide-element - 1000295232×1
  • 61000015373Not stocked
    countersunk screw×2
  • 71000276933
    $4.57
    spring ring - 1000276933×1
  • 81000259454
    $2.49
    pipe clamp - 1000259454×1
  • 91000276736
    $435.99
    PISTON - 1000276736×1
  • 101000276740
    $14.91
    set nut - 1000276740×1
  • 111000015438Not stocked
    lock washer×2
  • 121000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 131000276739
    $141.99
    cylinder seal kit - 1000276739×1
  • 141000165322
    $58.60
    STEEL BUSHING - 1000165322×2
  • 151000015475Not stocked
    grease nipple×2
  • 161000015480Not stocked
    cap grease nipple×2
  • 171000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 181000246845
    $2.68
    pipe clamp - 1000246845×1
  • 191000259457
    $37.55
    pipe line - 1000259457×1
  • 201000020127Not stocked
    hexagon nut×1
  • 211000049219Not stocked
    washer×1
