ET18

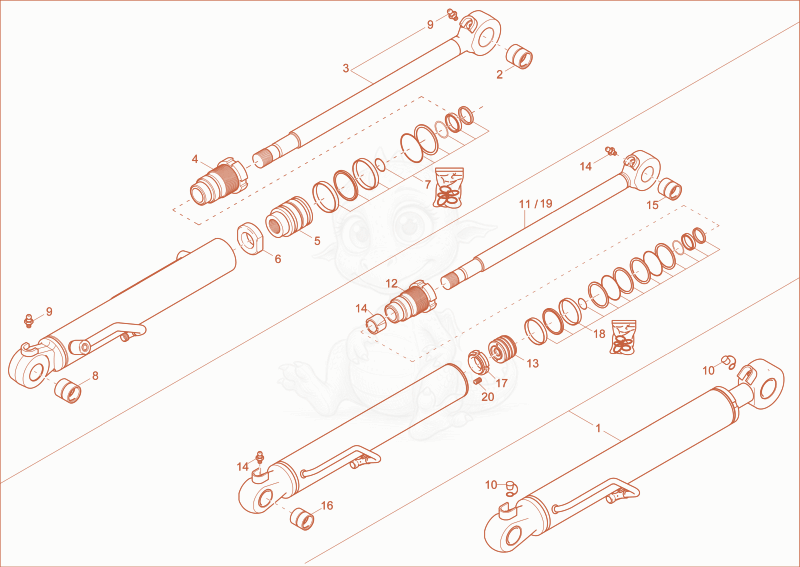

ET18 bucket cylinder Diagram

Exploded parts diagram of the bucket cylinder of a Wacker Neuson ET18, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000458312Not stocked
    bucket cylinder×1
  • 21000165323
    $41.39
    STEEL BUSHING - 1000165323×1
  • 31000276823
    $529.64
    PISTON ROD - 1000276823×1
  • 41000372785
    $212.67
    bushing - 1000372785×1
  • 51000276830
    $1,009.86
    PISTON - 1000276830×1
  • 61000276740
    $14.91
    set nut - 1000276740×1
  • 71000372947Not stocked
    cylinder seal kit×1
  • 81000165322
    $58.60
    STEEL BUSHING - 1000165322×1
  • 91000015475Not stocked
    grease nipple×2
  • 101000015480Not stocked
    cap grease nipple×2
  • 111000414697Not stocked
    piston rod×1
  • 121000403796Not stocked
    guide bushing×1
  • 131000403795
    $72.81
    Piston - 1000403795×1
  • 141000403797Not stocked
    slide bearing×1
  • 151000414652
    $58.44
    bushing - 1000414652×1
  • 161000403740
    $61.85
    Bushing - 1000403740×1
  • 171000399498
    $38.26
    Nut - 1000399498×1
  • 181000403711Not stocked
    seal kit×1
  • 191000490406Not stocked
    piston rod×1
  • 201000015384Not stocked
    thread pin×1
