ET24

ET24 blade cylinder Diagram

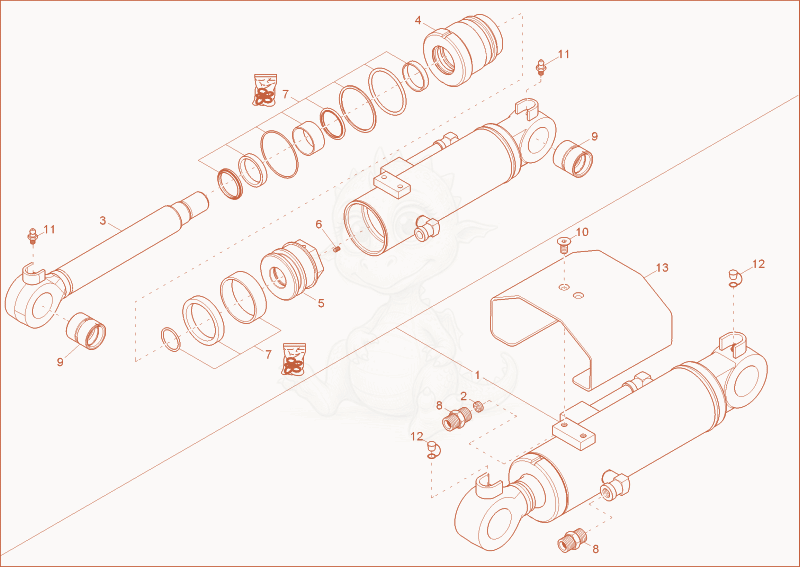

Exploded parts diagram of the blade cylinder of a Wacker Neuson ET24, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000242441
    $1,076.16
    Bladecylinder 1000242441×1
  • 21000069351Not stocked
    hose burst valve×1
  • 31000070828Not stocked
    piston rod×1
  • 41000070830Not stocked
    guide bushing×1
  • 51000070829
    $110.13
    PISTON - 1000070829×1
  • 61000015384Not stocked
    thread pin×1
  • 71000070832Not stocked
    cylinder seal kit×1
  • 81000015491Not stocked
    screw joint×2
  • 91000019750Not stocked
    steel bushing×2
  • 101000015397Not stocked
    countersunk screw×2
  • 111000072959
    $3.46
    grease nipple - 1000072959×2
  • 121000020783Not stocked
    cap grease nipple×2
  • 131000242447
    $113.38
    Protectionplate 1000242447×1
