ET24

ET24 GRAB EQUIPMENT (OPTION) Diagram

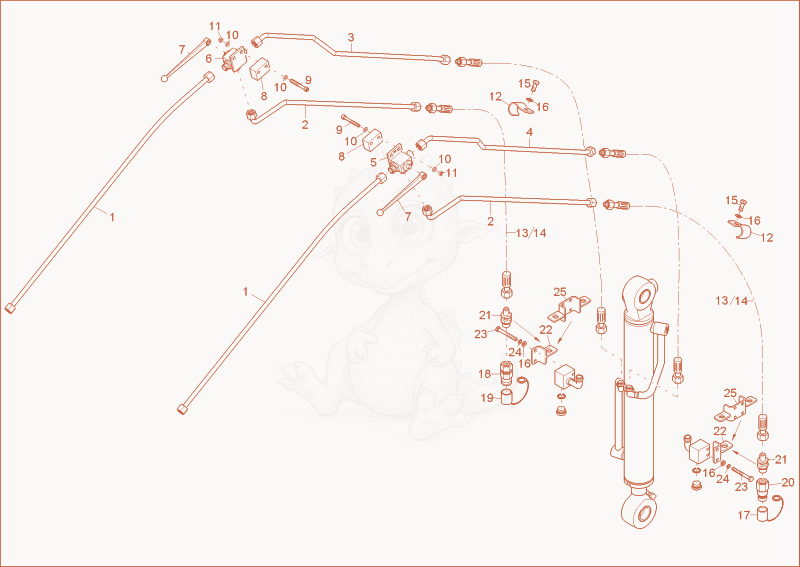

Exploded parts diagram of the GRAB EQUIPMENT (OPTION) of a Wacker Neuson ET24, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000259793
    $42.82
    pipe line - 1000259793×2
  • 21000259770
    $48.00
    pipe line - 1000259770×2
  • 31000259792
    $65.79
    pipe line - 1000259792×1
  • 41000259791
    $65.79
    pipe line - 1000259791×1
  • 51000256085
    $94.17
    BK3 10L 10 1123 1 T90�� - 1000256085×1
  • 61000257097
    $94.17
    BK3 10L 10 1123 1 T90�� - 1000257097×1
  • 71000069361Not stocked
    handle×2
  • 81000167977
    $18.07
    block - 1000167977×2
  • 91000085460
    $0.19
    cheese head screw - 1000085460×4
  • 101000015430Not stocked
    u-washer×8
  • 111000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×4
  • 121000066409Not stocked
    hose clamp×2
  • 131000277551
    $58.05
    SLHYDR 2SC 8,0PN10 0 PD10 0 L750,0F0 - 1000277551×2
  • 141000277552
    $57.75
    SLHYDR 2SC 8,0PN10 0 PD10 0 L950,0F0 - 1000277552×2
  • 151000013008Not stocked
    hex screw×2
  • 161000015431Not stocked
    washer×6
  • 171000109416
    $8.43
    Protection cap - 1000109416×1
  • 181000109378
    $54.82
    Quick lock coupling 1/2" Flat Face - 1000109378×1
  • 191000109417
    $10.12
    Protection cap - 1000109417×1
  • 201000109377
    $36.52
    Quick lock coupling 1/2'' Flat Face - 1000109377×1
  • 211000238586
    $18.41
    SCHOTTVERSCHRAUBUNG 10L 1/2" - 1000238586×2
  • 221000260411
    $17.82
    BRACKET - 1000260411×2
  • 231000022334Not stocked
    hex screw×4
  • 241000015437Not stocked
    lock washer×4
  • 251000260350
    $36.91
    BRACKET - 1000260350×2
