ET24

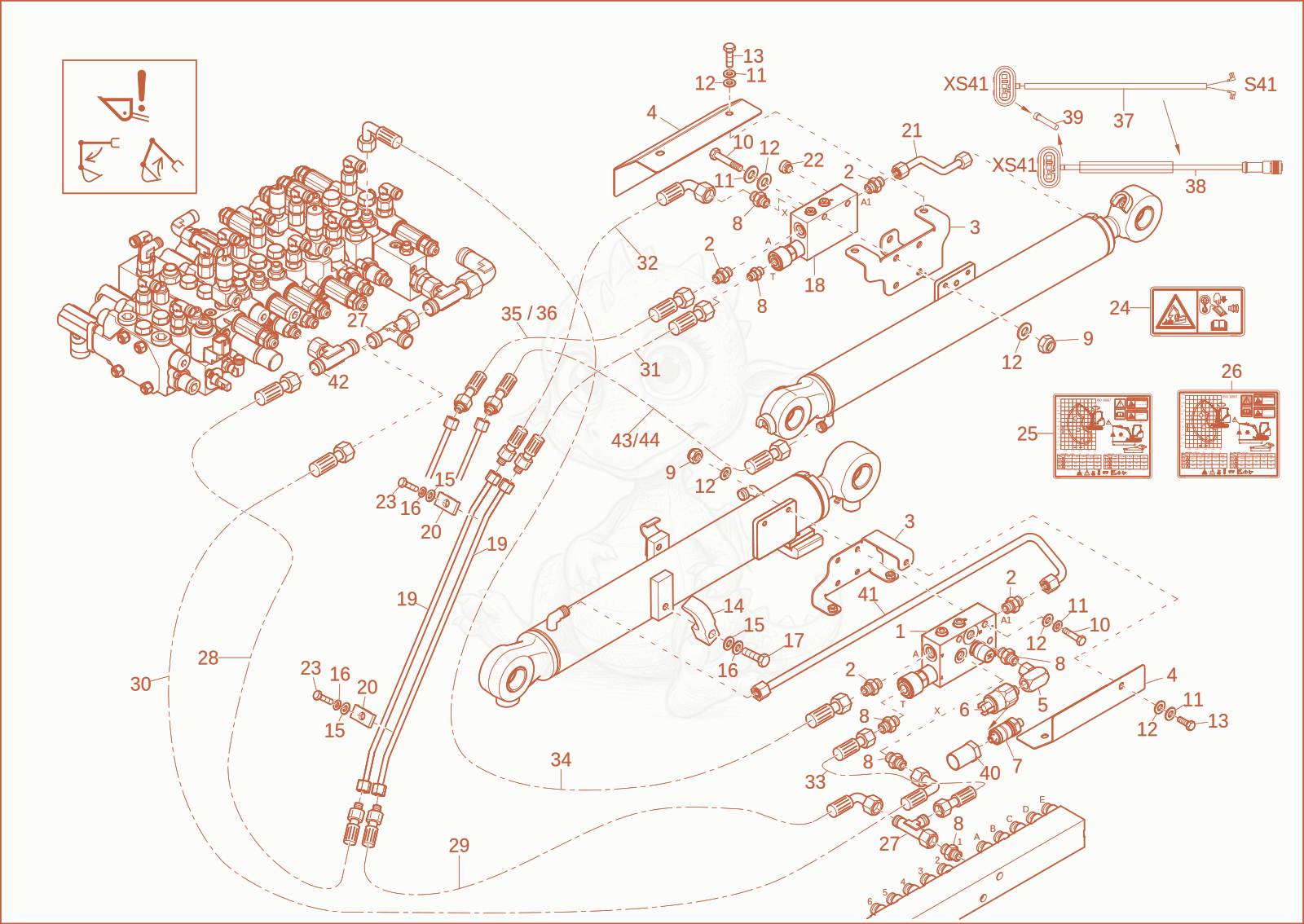

ET24 STALLING LOAD - WARNING DEVICE F(OPTION) Diagram

Exploded parts diagram of the STALLING LOAD - WARNING DEVICE F(OPTION) of a Wacker Neuson ET24, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000277636
    $473.96
    Hoseburstvalve 1000277636×1
  • 21000015491Not stocked
    screw joint×4
  • 31000278711
    $152.97
    plate - 1000278711×2
  • 41000278713
    $88.70
    protection plate - 1000278713×2
  • 51000268287
    $42.14
    WINKELVERSCHRAUBUNG ¼IG-8L - 1000268287×1
  • 61000015301Not stocked
    pressure switch×1
  • 71000283585
    $345.68
    PRESSURE SWITCH - 1000283585×1
  • 81000015488Not stocked
    screw joint×5
  • 91000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×4
  • 101000085318
    $1.11
    6-Point screw M8x60-8.8 A2C-DIN931 - 1000085318×4
  • 111000015437Not stocked
    lock washer×10
  • 121000015431Not stocked
    washer×14
  • 131000019136Not stocked
    hex screw×6
  • 141000273644
    $63.31
    hose clamp - 1000273644×1
  • 151000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×3
  • 161000015438Not stocked
    lock washer×3
  • 171000085412
    $0.87
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×1
  • 181000260557
    $473.96
    Hoseburstvalve 1000260557×1
  • 191000354616Not stocked
    pipe line×2
  • 201000272763
    $19.14
    pipe clamp - 1000272763×2
  • 211000259455
    $49.27
    pipe line - 1000259455×1
  • 221000022438Not stocked
    screw joint×1
  • 231000085414
    $0.98
    hex screw - 1000085414×2
  • 241000264916
    $18.83
    STICKER - 1000264916×1
  • 251000277286
    $109.51
    STICKER LIFT - 1000277286×1
  • 261000277287
    $119.94
    STICKER LIFT - 1000277287×1
  • 271000015515Not stocked
    screw joint×2
  • 281000280631
    $69.51
    SLHYDR 1SCP5,0PN8 0 PD8 0 L2000 S0 - 1000280631×1
  • 291000280632
    $67.11
    SLHYDR 1SCP5,0PN8 90 PD8 0 L1500 S0 - 1000280632×1
  • 301000280634
    $69.98
    SLHYDR 1SCP5,0PN8 90 PN8 0 L2400 S0 - 1000280634×1
  • 311000353256Not stocked
    Hose×1
  • 321000353254Not stocked
    Hose×1
  • 331000280635
    $52.20
    SLHYDR 1SCP5,0PN8 0 PN8 0 L1500 S0 - 1000280635×1
  • 341000277558
    $75.02
    SLHYDR 2SC 8,0PN10 90 PN10 0 L2300 S0 - 1000277558×1
  • 351000280507
    $48.66
    SLHYDR 2SC 8,0PN10 0 PD10 0 L750,0S0 - 1000280507×1
  • 361000335046Not stocked
    Hose×1
  • 371000281564
    $463.85
    cable overloadwarning - 1000281564×1
  • 381000283702
    $148.25
    cable overloadwarning - 1000283702×1
  • 391000052627
    $1.00
    Plug - 1000052627×1
  • 401000283746
    $6.36
    protecting cap - 1000283746×1
  • 411000259456
    $64.47
    pipe line - 1000259456×1
  • 421000015518
    $8.71
    ET08LOMDA3C - 1000015518×1
  • 431000277548
    $41.51
    SLHYDR 2SC 8,0PN10 0 PD10 0 L450,0S0 - 1000277548×1
  • 441000335047Not stocked
    Hose×1
  • S411000095373
    $0.89
    plug sleeve - 1000095373×2
  • XS411000265293
    $3.49
    Pin housing - 1000265293×1
