ET24

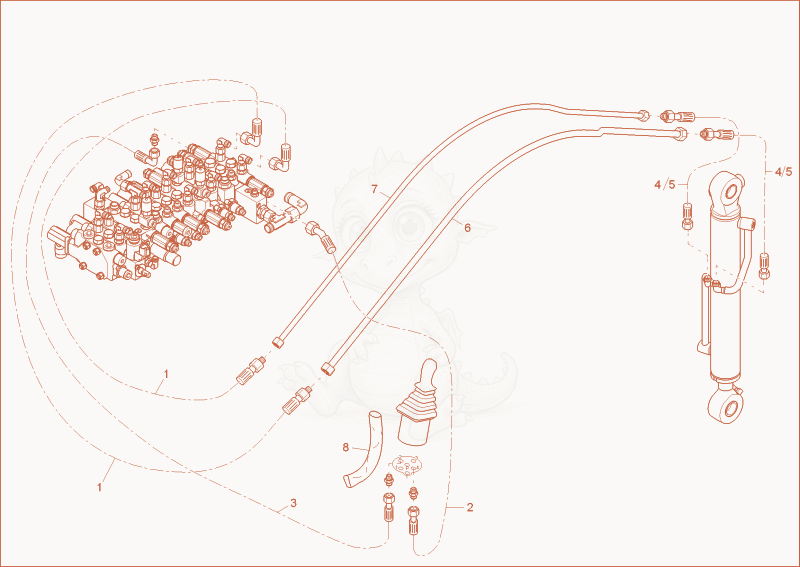

ET24 BUCKET OPERATION Diagram

Exploded parts diagram of the BUCKET OPERATION of a Wacker Neuson ET24, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000287086
    $69.37
    SLHYDR 2SC 8,0PN10 90 PD10 0 L2300 S0 - 1000287086×2
  • 21000277599
    $43.81
    SLHYDR 1SCP5,0PN8 45 PN8 0 L1950 0 - 1000277599×1
  • 31000277597
    $77.28
    SLHYDR 1SCP5,0PN8 90 PN8 0 L2200 0 - 1000277597×1
  • 41000330427Not stocked
    Hose×2
  • 51000330462Not stocked
    Hose×2
  • 61000260305
    $78.55
    pipe line - 1000260305×1
  • 71000260304
    $78.55
    pipe line - 1000260304×1
  • 81000277618
    $22.41
    protecting hose black - 1000277618×1
