EW100-2

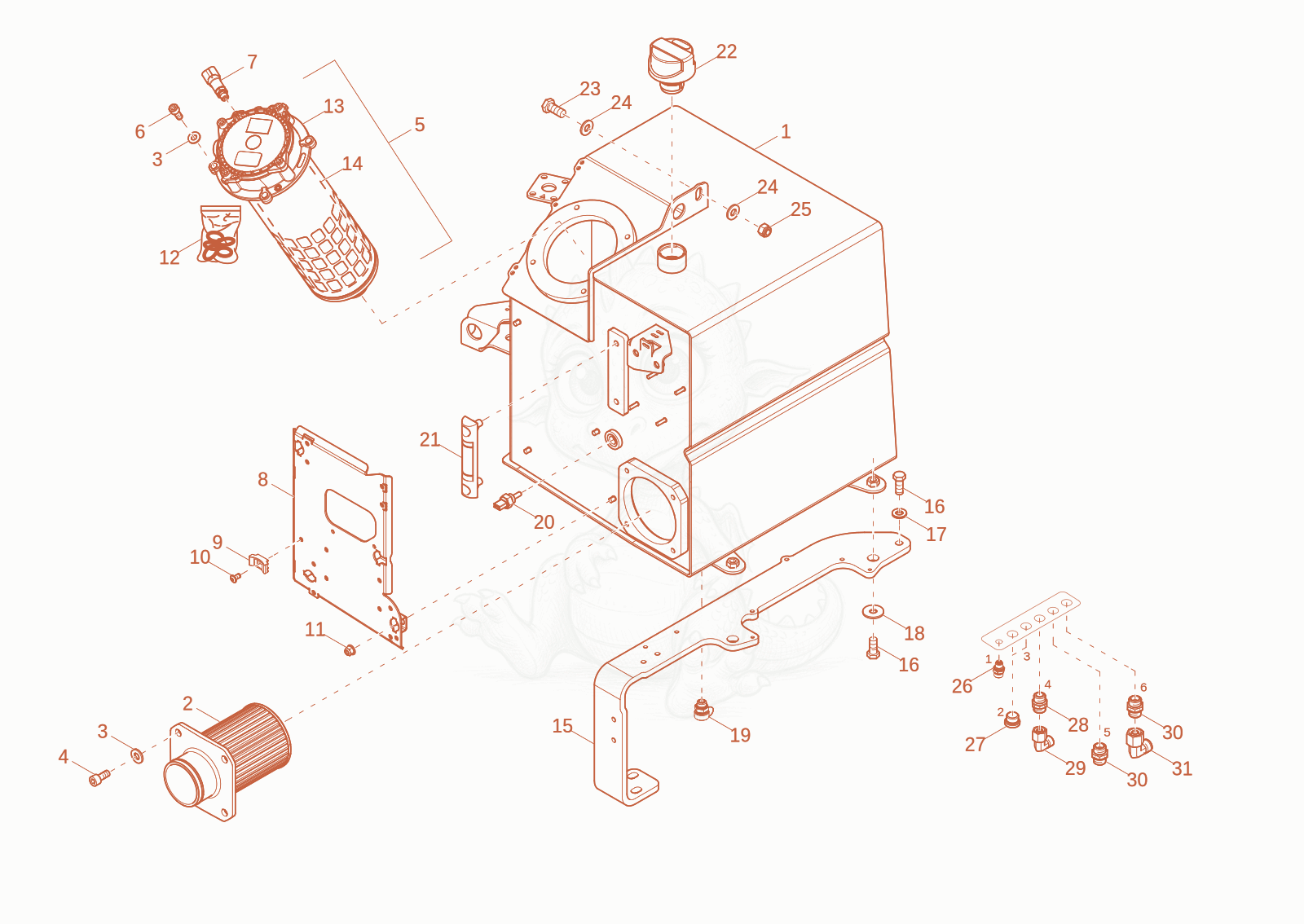

EW100-2 hydraulic tank Diagram

Exploded parts diagram of the hydraulic tank of a Wacker Neuson EW100-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000508993Not stocked
    hydraulic tank×1
  • 21000432633Not stocked
    suction filter×1
  • 31000094974
    $0.70
    washer M10-DIN134 - 1000094974×8
  • 41000015354
    $0.82
    allen screw M10x20-8.8 A2C-DIN912 - 1000015354×4
  • 51000432632Not stocked
    reflux filter×1
  • 61000085468
    $0.42
    cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×4
  • 71000483883Not stocked
    sensor×1
  • 81000573017Not stocked
    bracket×1
  • 91000282739
    $2.12
    sockets - 1000282739×1
  • 101000326519Not stocked
    flat head screw×1
  • 111000082590
    $0.78
    lock nut - 1000082590×4
  • 121000507236Not stocked
    seal kit×1
  • 131000507235
    $219.02
    Cover - 1000507235×1
  • 141000444631Not stocked
    filter×1
  • 151000513826Not stocked
    hydraulic tank×1
  • 161000015347Not stocked
    hex screw×6
  • 171000094970
    $1.71
    Nord-Lock disc NL12x25,4 - 1000094970×3
  • 181000085613
    $0.10
    washer - 1000085613×3
  • 191000322340Not stocked
    service valve×1
  • 201000302951
    $100.29
    temperature sensor EW/ET65,100,145 - 1000302951×1
  • 211000012521Not stocked
    oil level indic×1
  • 221000153385
    $57.52
    venting filter - 1000153385×1
  • 231000085404
    $0.93
    hex screw - 1000085404×1
  • 241000082638
    $0.73
    washer 13 -DIN134 - 1000082638×2
  • 251000357536Not stocked
    hexagon nut×1
  • 261000471311Not stocked
    screw joint×1
  • 271000082786
    $3.66
    VSTI1/2EDA3C - 1000082786×2
  • 281000015493Not stocked
    screw joint×1
  • 291000000573Not stocked
    screw joint×1
  • 301000015494Not stocked
    screw joint×2
  • 311000015512Not stocked
    screw joint×1
