EW100-2

EW100-2 COVERING Diagram

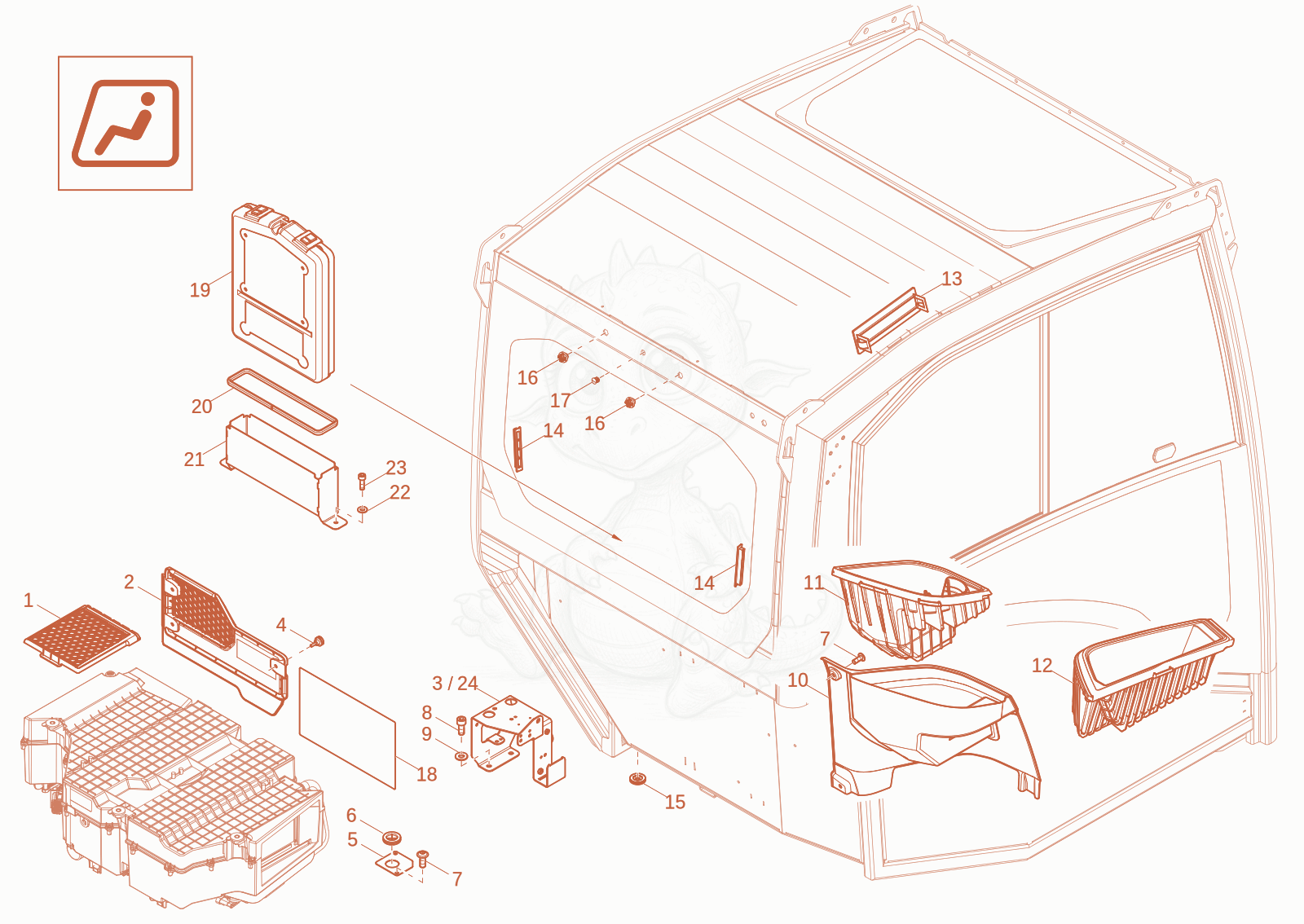

Exploded parts diagram of the COVERING of a Wacker Neuson EW100-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000501061
    $21.83
    cover - 1000501061×1
  • 21000462484
    $117.46
    cover - 1000462484×1
  • 31000474009
    $186.65
    bracket - 1000474009×1
  • 41000107940
    $14.19
    GROOVED SCREW - 1000107940×3
  • 51000487091
    $19.97
    Cover - 1000487091×1
  • 61000363517Not stocked
    rubber sleeve×1
  • 71000326518Not stocked
    flat head screw×6
  • 81000019593Not stocked
    cheese head screw×3
  • 91000015448Not stocked
    washer×3
  • 101000480285
    $441.90
    trim - 1000480285×1
  • 111000489322Not stocked
    trim×1
  • 121000489321Not stocked
    trim×1
  • 131000447425Not stocked
    radio port hole cover×1
  • 141000394338Not stocked
    nozzle×2
  • 151000274374
    $17.59
    rubber sleeve - 1000274374×1
  • 161000270047
    $1.84
    screw - 1000270047×2
  • 171000068993Not stocked
    plug×1
  • 181000502566
    $101.40
    STICKER - 1000502566×1
  • 191000081206
    $40.96
    documents box - 1000081206×1
  • 201000097928
    $4.57
    edge protection - 1000097928×1
  • 211000506499Not stocked
    bracket×1
  • 221000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×2
  • 231000085456
    $0.05
    allen screw M6x20-8.8 A2C-DIN912 - 1000085456×2
  • 241000572839Not stocked
    bracket×1
