EW100-2

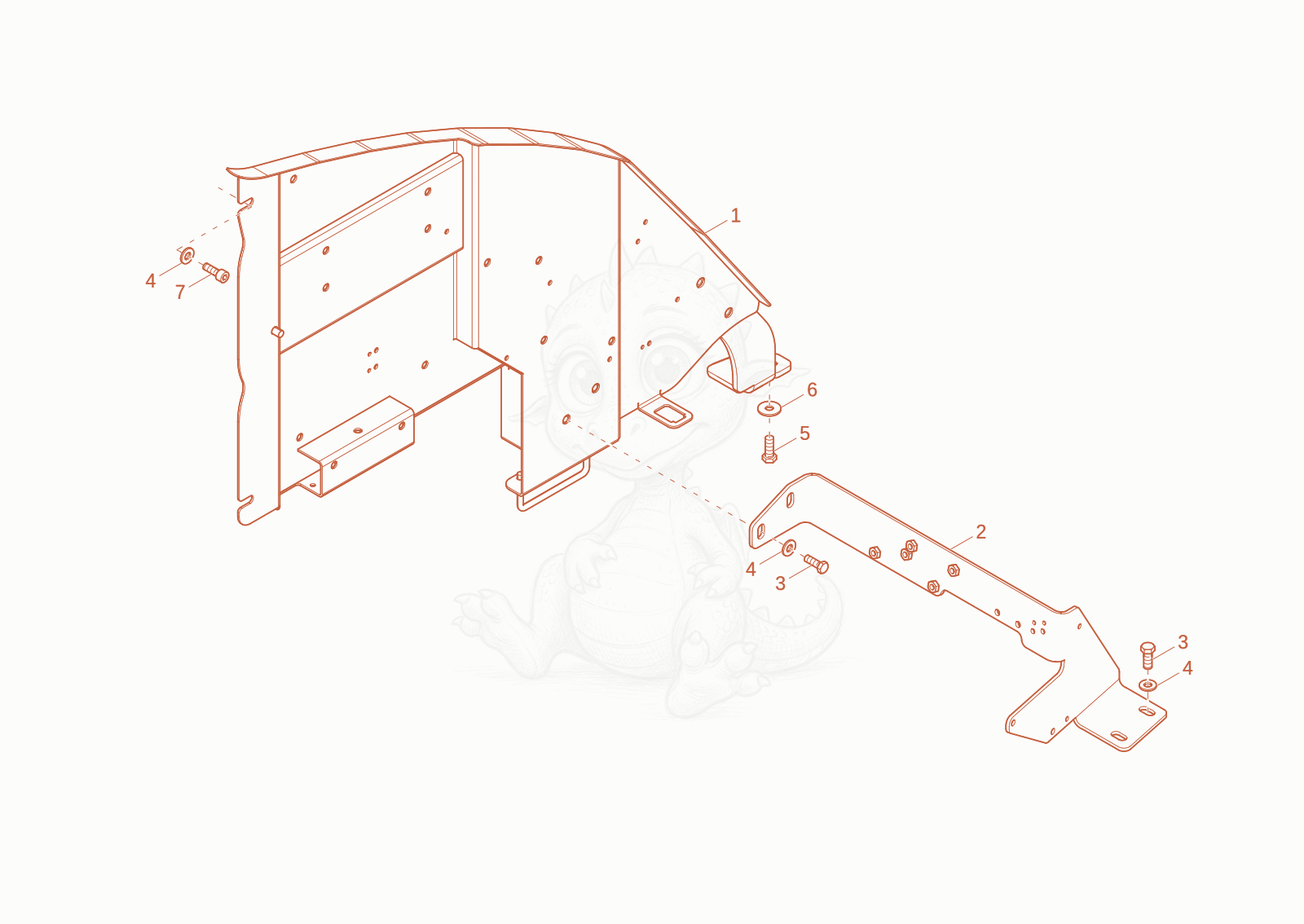

EW100-2 SIDE PLATE Diagram

Exploded parts diagram of the SIDE PLATE of a Wacker Neuson EW100-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000484292Not stocked
    side plate×1
  • 21000484290
    $156.52
    bracket - 1000484290×1
  • 31000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 41000094974
    $0.70
    washer M10-DIN134 - 1000094974×6
  • 51000015364Not stocked
    hex screw×2
  • 61000015442Not stocked
    u-washer×2
  • 71000015354
    $0.82
    allen screw M10x20-8.8 A2C-DIN912 - 1000015354×2
