EW100-2

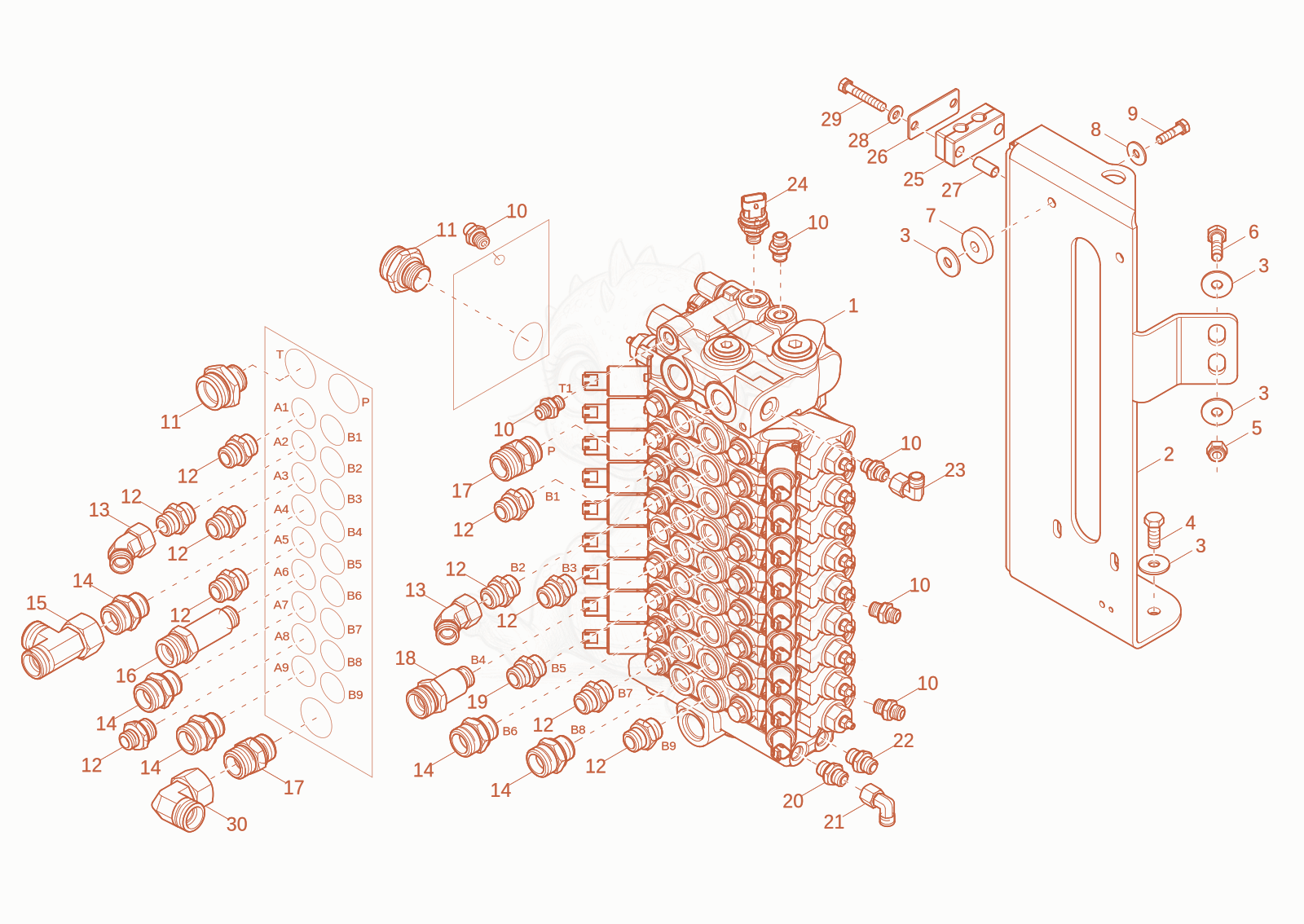

EW100-2 CONTROL VALVE 1 Diagram

Exploded parts diagram of the CONTROL VALVE 1 of a Wacker Neuson EW100-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000424507Not stocked
    control block×1
  • 21000483557
    $261.33
    bracket - 1000483557×1
  • 31000015442Not stocked
    u-washer×10
  • 41000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
  • 51000357535Not stocked
    hexagon nut×2
  • 61000015346Not stocked
    hex screw×2
  • 71000326520Not stocked
    rubber shock absorber×4
  • 81000013027Not stocked
    washer×4
  • 91000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×4
  • 101000015488Not stocked
    screw joint×6
  • 111000085069
    $27.33
    E28LR3/4" EDOMDA3C - 1000085069×2
  • 121000015494Not stocked
    screw joint×10
  • 131000180503
    $49.14
    EV15LOMDA3C - 1000180503×2
  • 141000015549Not stocked
    screw joint×5
  • 151000021216Not stocked
    screw joint×1
  • 161000295886
    $135.59
    GE20SR1/2_LANG - 1000295886×1
  • 171000020908Not stocked
    screw joint×2
  • 181000334814Not stocked
    screw joint×1
  • 191000015493Not stocked
    screw joint×1
  • 201000471311Not stocked
    screw joint×1
  • 211000015510Not stocked
    screw joint×1
  • 221000015490Not stocked
    screw joint×1
  • 231000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 241000425148Not stocked
    pressure sensor×1
  • 251000399881Not stocked
    rubber piece×4
  • 261000399874
    $11.68
    plate - 1000399874×2
  • 271000409978
    $33.92
    sleeve - 1000409978×4
  • 281000015448Not stocked
    washer×4
  • 291000015344Not stocked
    hex screw×4
  • 301000085093
    $17.22
    EW20SOMDA3C - 1000085093×1
