G25-GENERATOR COLD WEATHER

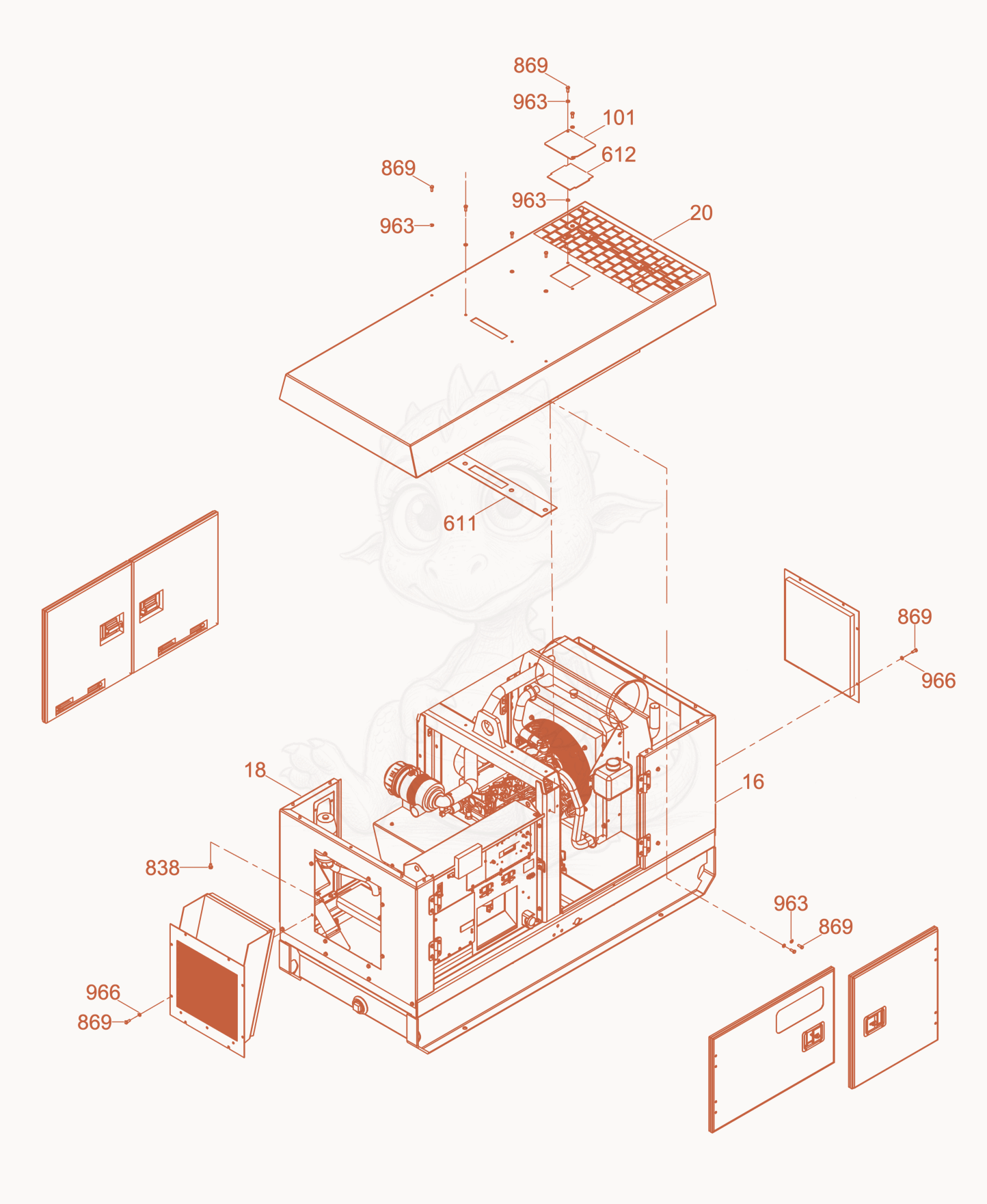

G25 Sheet Metal Assembly Diagram

Exploded parts diagram of the Sheet Metal Assembly of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 165000157237Not stocked
    Front panel×1
  • 185000157241
    $795.69
    X-0182272 PANEL-REAR,SML - 5000157241×1
  • 205000157243Not stocked
    Roof panel×1
  • 1015000157244
    $29.81
    Panel-Rad Cover,Wht AL,P-5000177670 - 5000157244×1
  • 6115000158118
    $18.33
    GASKET-LIFT EYE - 5000158118×1
  • 6125000158849
    $1.89
    GASKET-RADIATOR COVER - 5000158849×1
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×13
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×26
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×12
  • 9665000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×16
