G25-GENERATOR COLD WEATHER

G25 Option-Battery Disconnect Diagram

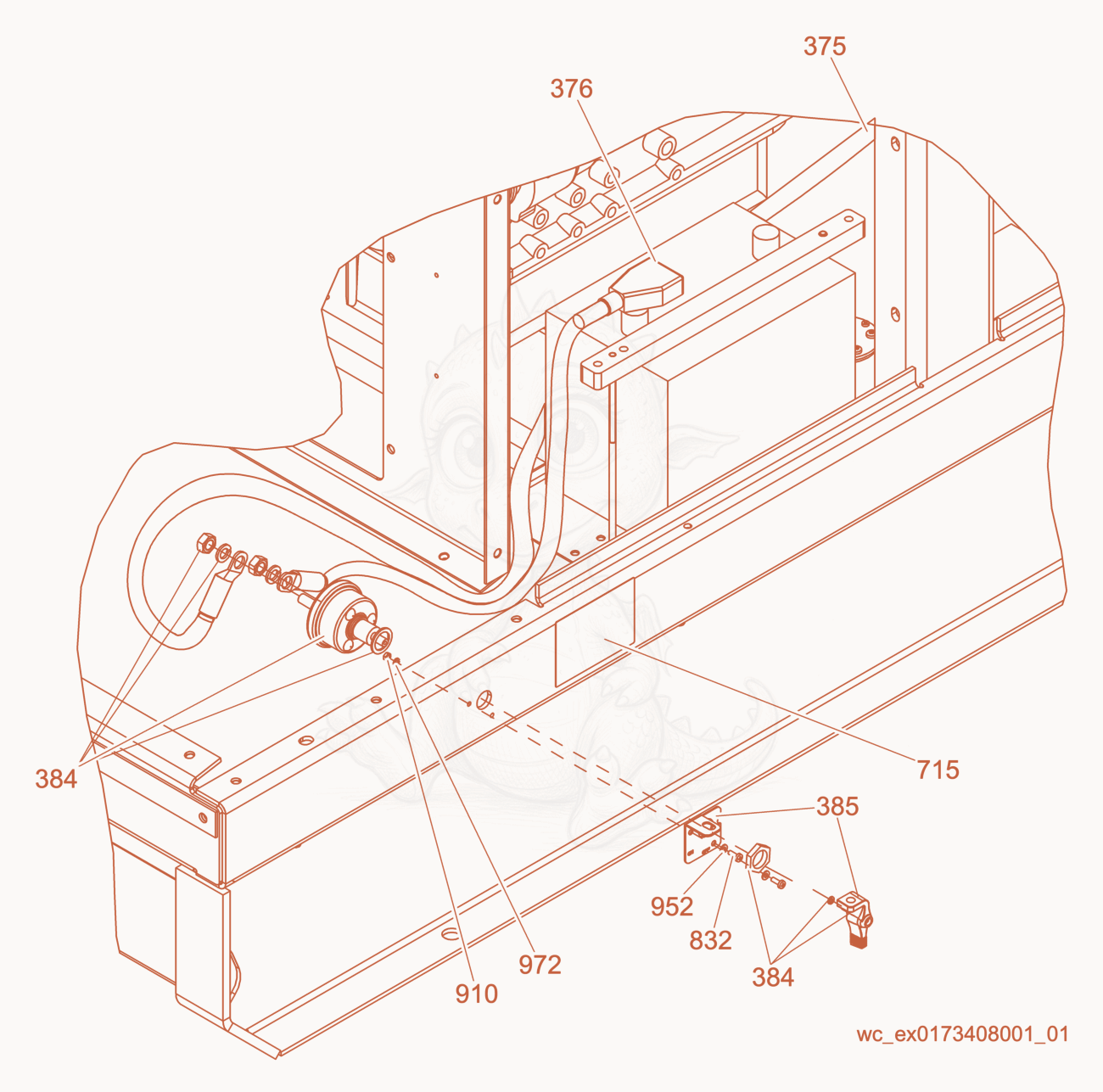

Exploded parts diagram of the Option-Battery Disconnect of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 5000173408Not stocked
    Battery disconnect×1
  • 3755000173363
    $30.27
    CABLE-DISCONNECT,SMl - 5000173363×1
  • 3765000173362
    $29.26
    CABLE-NEG DISCONNECT,SML - 5000173362×1
  • 3845000173383
    $150.43
    SWITCH,LOCK-OUT - 5000173383×1
  • 3855000173384
    $190.43
    HANDLE,LOCK-OUT LEVER - 5000173384×1
  • 7155000173394
    $21.45
    LABEL-BATTERY DISCONNCT SWITCH - 5000173394×1
  • 8325000088174
    $0.18
    SCREW M4 X 12 - 5000088174×2
  • 9105000010872
    $0.01
    NUT M4 8,HEX. - 5000010872×2
  • 9525000010628
    $0.02
    WASHER A4.3 FLAT - 5000010628×2
  • 9725000010655
    $0.02
    WASHER-LOCK B4 - 5000010655×2
