G25 Skid Assembly Diagram

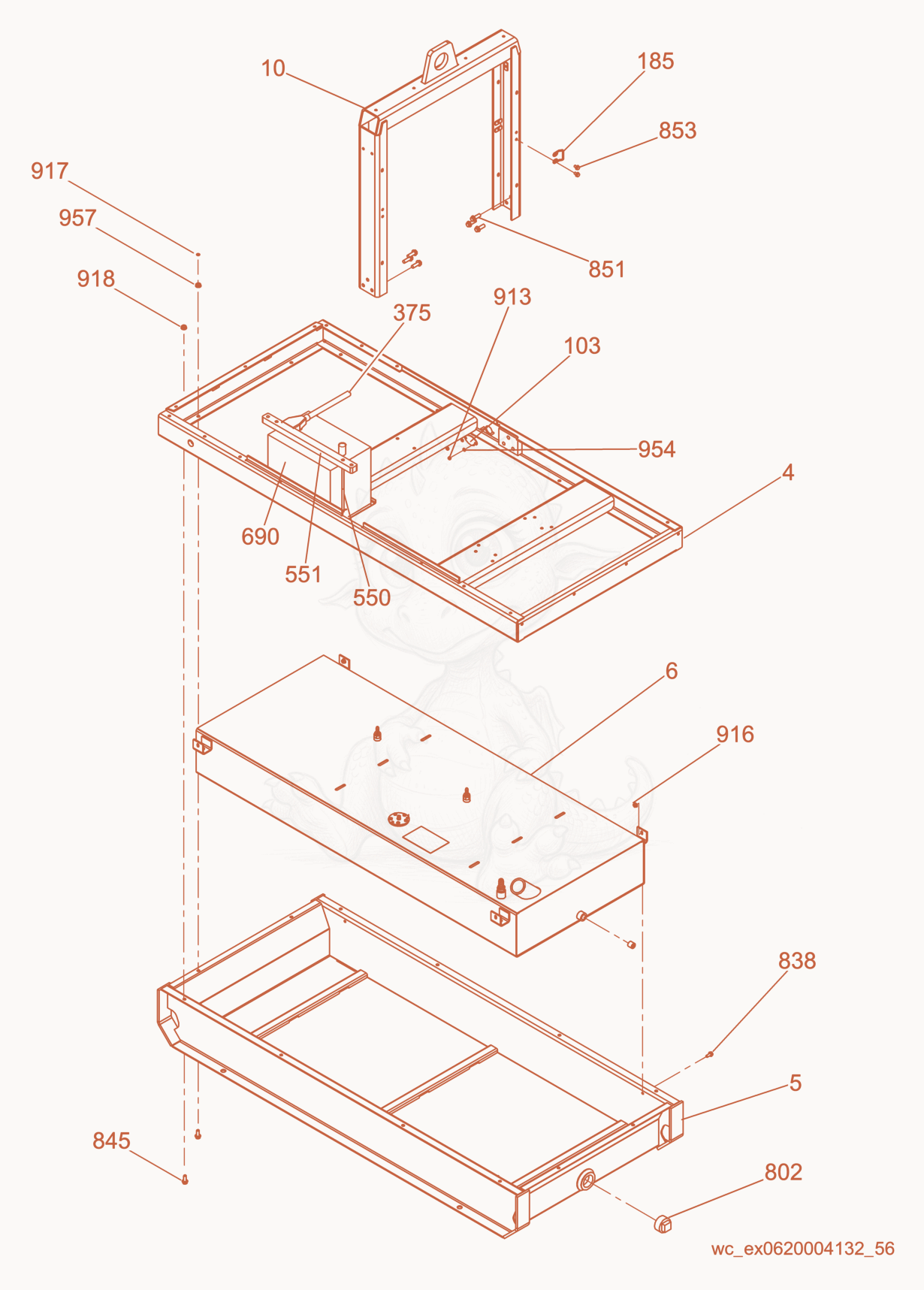

Exploded parts diagram of the Skid Assembly of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 45000157905
    $1,423.94
    FRAME-SKID UPPR,SML P-5000176420 - 5000157905×1
  • 55000157904
    $1,451.06
    FRAME-SKID WLDMT LWR P-5000176420 - 5000157904×1
  • 65000157906
    $2,186.64
    TANK-FUEL 60 GAL P-5000112007 - 5000157906×1
  • 105000157236
    $991.48
    FRAME-LIFT STRUCTURE ASSY. P-5000176420 - 5000157236×1
  • 1035000158900
    $29.81
    PANEL-OIL DRAIN COVER,SKID P-5000176420 - 5000158900×1
  • 1855000158982
    $2.54
    LATCH STRIKE,WIRE - 5000158982×4
  • 3755000158985
    $28.93
    CABLE-BATTERY,POS.10 W/AUX - 5000158985×1
  • 5505000154319
    $2.94
    BOLT-L .25-10,BATTERY - 5000154319×2
  • 5515000159046
    $45.69
    BRACKET-BATTERY HOLD DOWN - 5000159046×1
  • 6905000153758
    $202.25
    BATTERY-WET,GR 34 - 5000153758×1
  • 8025000159651
    $36.72
    PLUG,2NPT,SQHD,BK PIPE,RAL7043 P-176420 - 5000159651×1
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×4
  • 8455000116164
    $0.69
    SCREW M10X25 HEX,SER.FLG ZP - 5000116164×12
  • 8515000155248
    $2.41
    SCREW M12X25-10.9 HX SFLG MZP - 5000155248×6
  • 8535000157021
    $0.57
    SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×8
  • 9135000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×2
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
  • 9175000010883
    $0.29
    NUT M10 8,HEX - 5000010883×4
  • 9185000089316
    $0.29
    NUT-LOCK M10,SERR.,FLANGE - 5000089316×8
  • 9545000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×2
  • 9575000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×4
