G25-GENERATOR COLD WEATHER

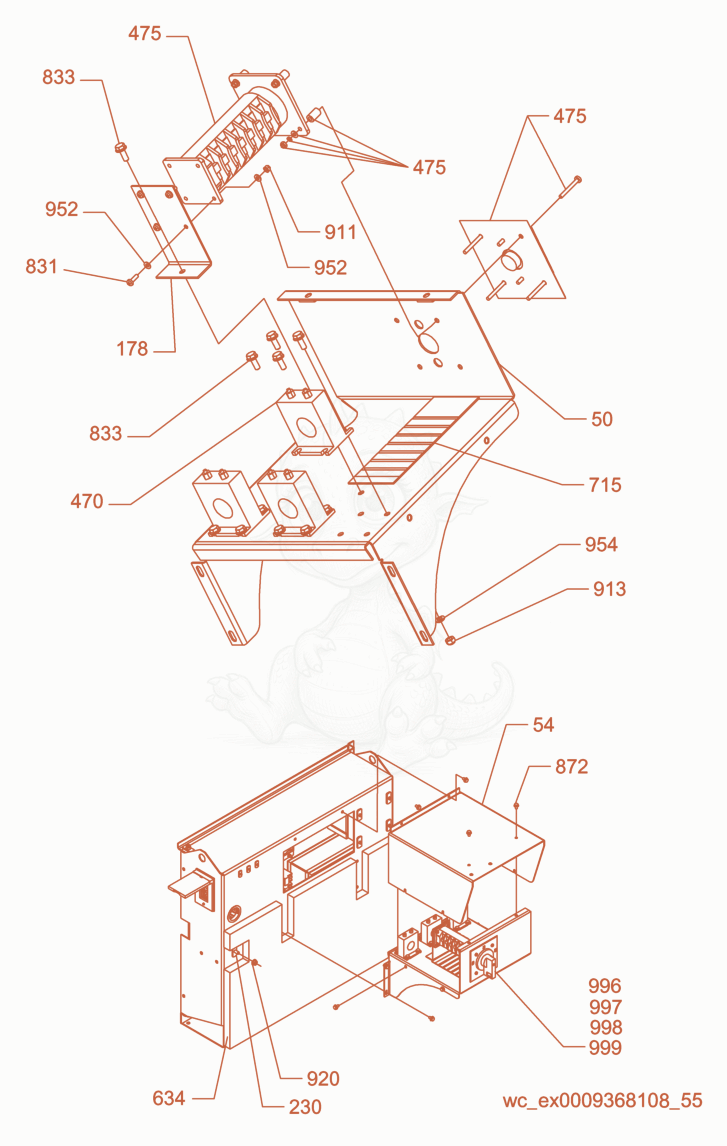

G25 Voltage Selector Switch Box Diagram

Exploded parts diagram of the Voltage Selector Switch Box of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 505000157932
    $169.15
    PANEL,SS BOX BOTTOM - 5000157932×1
  • 545000157933
    $150.13
    PANEL,SS BOX TOP P-5000176420 - 5000157933×1
  • 1785000157934
    $56.28
    BRACKET-SS,REAR - 5000157934×1
  • 2305000152978
    $17.62
    STRAP-GROUND 10 - 5000152978×1
  • 4705000153231
    $53.72
    TRANSFORMER-CURRENT,100:5A - 5000153231×3
  • 4755000158802
    $2,098.62
    SWITCH-PHASE,63 AMP - 5000158802×1
  • 6345000164228
    $42.00
    INSULATOR-REAR,CONTROL PANEL - 5000164228×1
  • 7155000159151
    $6.69
    LABEL-SEL SWITCH TERMINALS - 5000159151×1
  • 8315000110405
    $0.06
    SCREW M4 X 14 PHIL HD - 5000110405×4
  • 8335000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×12
  • 8725000073164
    $0.42
    SCREW M6 X 10,HX.HD,SER.FLG - 5000073164×14
  • 9115000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×4
  • 9135000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×13
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×1
  • 9525000010628
    $0.02
    WASHER A4.3 FLAT - 5000010628×8
  • 9545000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×13
  • 9965000160772
    $0.26
    WASHER-LOCK - 5000160772×2
  • 9975000160773
    $3.15
    Nut - 5000160773×2
  • 9985000160774
    $2.46
    Washer - 5000160774×2
  • 9995000160775
    $68.21
    Handle - 5000160775×1
