GS12Ai

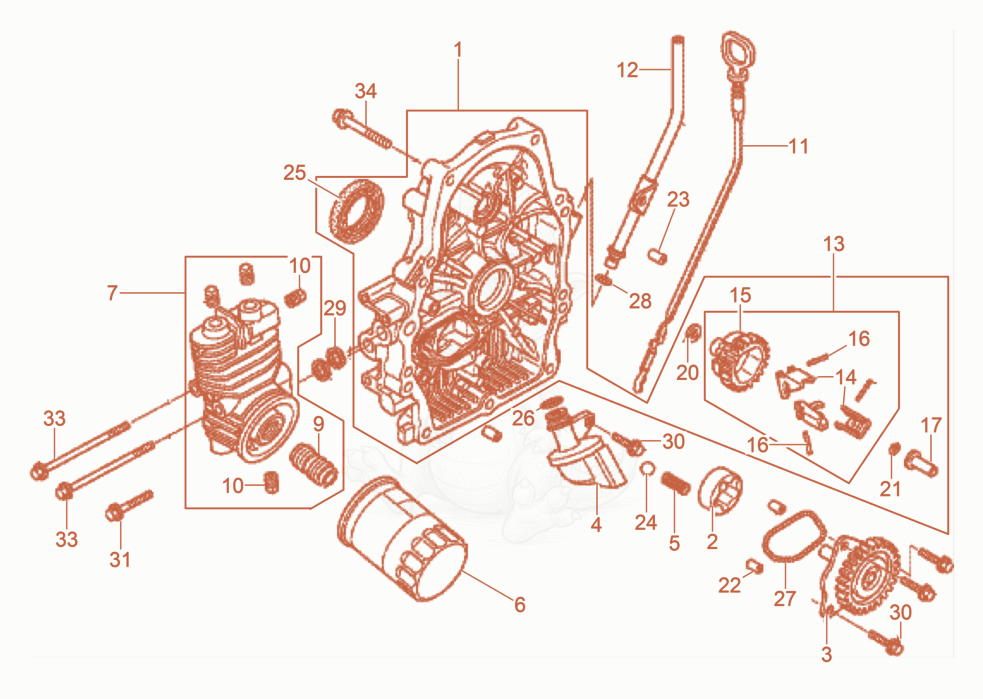

GS12AI Crankcase cover Diagram

Exploded parts diagram of the Crankcase cover of a Wacker Neuson GS12AI, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000226407
    $693.86
    COVER-CRANKCASE,CPL - 5000226407×1
  • 25000226435
    $26.33
    ROTOR-OIL PUMP,OUTER - 5000226435×1
  • 35000226436
    $262.17
    GEAR-OIL PUMP - 5000226436×1
  • 45000226437
    $66.22
    Strainer - 5000226437×1
  • 55000226438
    $2.26
    Spring - 5000226438×1
  • 65100003386Not stocked
    Oil filter×1
  • 75000226439
    $284.57
    MOUNT-OIL FILTER - 5000226439×1
  • 95000226440
    $3.91
    HOLDER-OIL FILTER - 5000226440×1
  • 105000226441
    $5.05
    Bolt - 5000226441×4
  • 115000226445
    $18.16
    DIPSTICK-OIL - 5000226445×1
  • 125000226446
    $20.61
    TUBE-OIL FILL - 5000226446×1
  • 135000226463
    $27.56
    GOVERNOR WEIGHT CPL. - 5000226463×1
  • 145000226464
    $5.80
    Governor weight - 5000226464×3
  • 155000226465
    $16.02
    Holder - 5000226465×1
  • 165000226466
    $1.97
    Pin - 5000226466×3
  • 175000226467
    $19.01
    Slider - 5000226467×1
  • 205000226467
    $19.01
    Slider - 5000226467×1
  • 215000081615
    $2.07
    RET.RING 7.7MM,FORM C - 5000081615×1
  • 225000226540
    $3.41
    PIN-DOWEL 8X10 - 5000226540×2
  • 235000226541
    $3.41
    PIN-DOWEL - 5000226541×2
  • 245000226544
    $1.44
    Ball - 5000226544×1
  • 255000227784Not stocked
    Oil Seal×1
  • 265000226547
    $2.65
    O-RING 14.8X4 - 5000226547×1
  • 275000226549
    $4.72
    O-Ring - 5000226549×1
  • 285000227785Not stocked
    O-ring×1
  • 295000226550
    $2.83
    GASKET-OIL PASSAGE - 5000226550×2
  • 305100003499Not stocked
    Flange screw×4
  • 315000152325
    $2.74
    BOLT-FLANGE 6X28 - 5000152325×1
  • 335000226562
    $2.91
    BOLT-FLANGE 6X90 - 5000226562×2
  • 345000226563
    $1.37
    BOLT-FLANGE 8X45 - 5000226563×9
