GS12Ai

GS12AI Piston Diagram

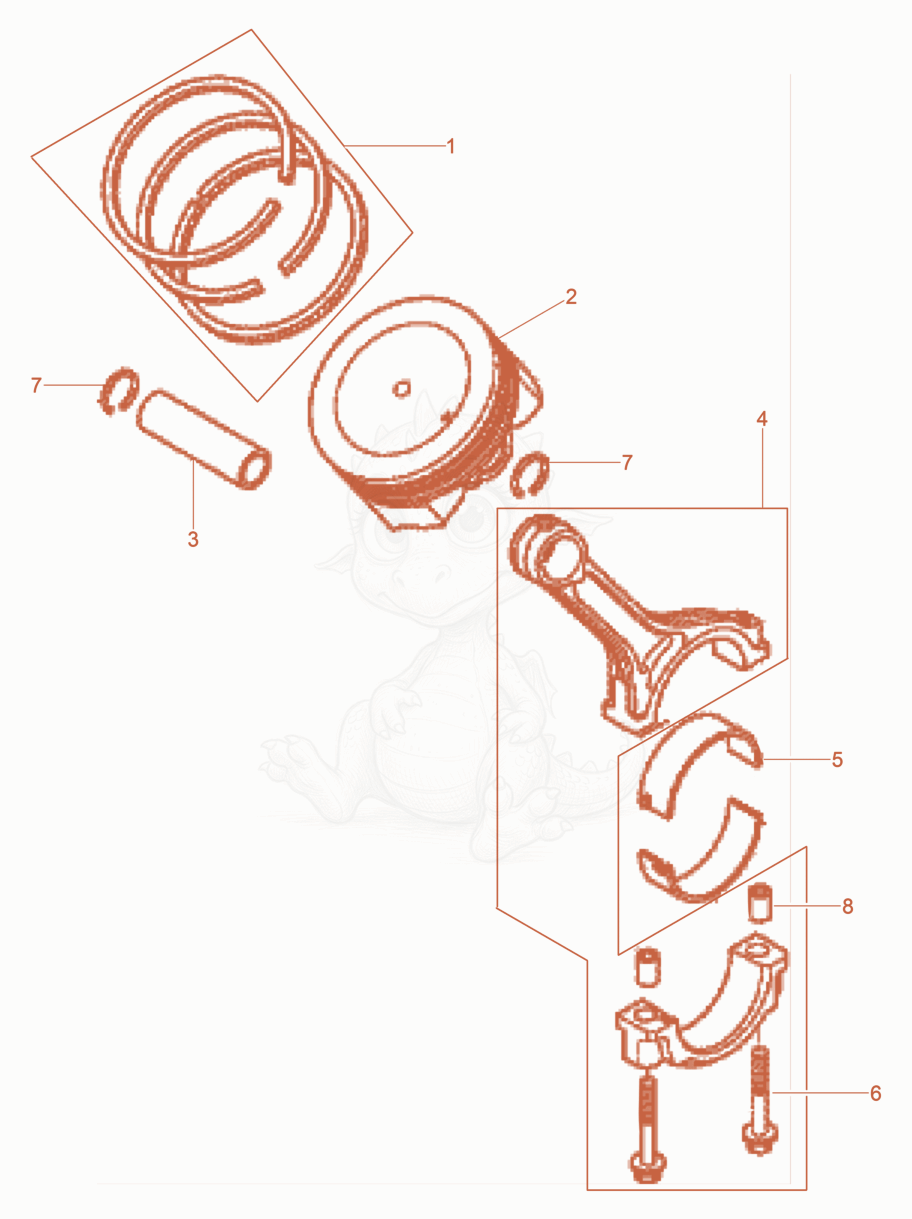

Exploded parts diagram of the Piston of a Wacker Neuson GS12AI, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000226417
    $47.83
    SET-PISTON RING - 5000226417×2
  • 25100003369Not stocked
    Piston×2
  • 35000226419
    $14.59
    PIN-PISTON - 5000226419×2
  • 45000226420
    $149.39
    SET-CONNECTING ROD - 5000226420×2
  • 55000226421
    $16.35
    BUSHING-CONNECTING ROD - 5000226421×4
  • 65000226526
    $7.43
    BOLT 7X38 - 5000226526×4
  • 75000081994
    $1.68
    CLIP-PISTON PIN - 5000081994×4
  • 85000226539
    $3.41
    PIN-DOWEL 9X10 - 5000226539×4
