GS12Ai

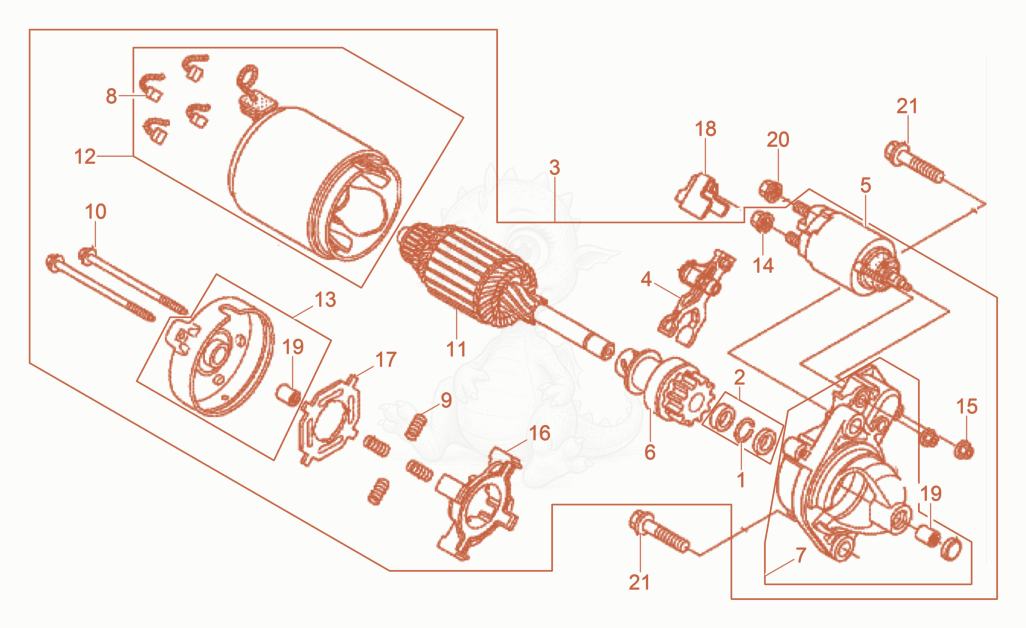

GS12AI Starter Diagram
- CLIP-RETAINING - 5000159537×1
- RING-SET STOP,CLUTCH - 5000152565×1
- MOTOR CPL. - 5000226503×1
- LEVER-DRIVE,PINION - 5000152568×1
- SWITCH-MAGNET - 5000152569×1
- Clutch cpl. - 5000226504×1
- Housing cpl. - 5000226505×1
- BRUSH - 5000152572×4
- SPRING-BRUSH - 5000152573×4
- BOLT-THROUGH - 5000152575×2
- Rotor cpl. - 5000226506×1
- 125100003465Not stockedHousing×1
- Cover - 5000226507×1
- NUT-HEX 8MM - 5000152577×1
- NUT-FLANGE 5MM - 5000152578×2
- HOLDER-BRUSH - 5000152579×1
- INSULATOR-HOLDER,BRUSH - 5000152580×1
- Cover - 5000226508×1
- BEARING-A - 5000152582×2
- NUT-FLANGE M8 - 5000226556×1
- BOLT-FLANGE 10X40 - 5000226564×2
