HSH350 DG,HEATER-SURFACE 50Hz

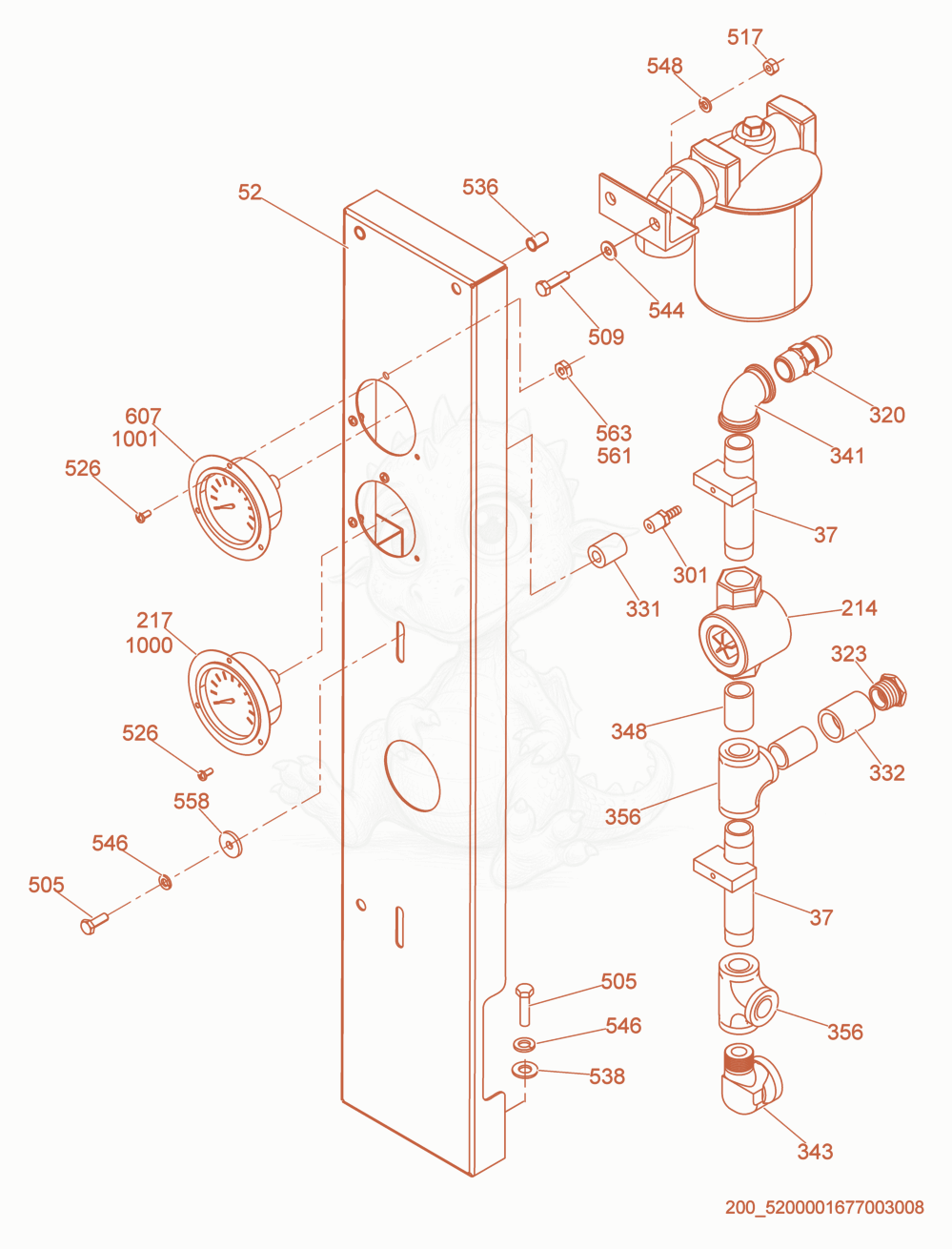

HSH350 Center panel cpl. Diagram

Exploded parts diagram of the Center panel cpl. of a Wacker Neuson HSH350, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 375000169548Not stocked
    Return pipe×2
  • 525000179315Not stocked
    Center panel×1
  • 2145000168091Not stocked
    Flow indicator×1
  • 2175000173883Not stocked
    Pressure gauge×1
  • 3015000168284Not stocked
    Hose barb×1
  • 3205000168393Not stocked
    Adapter×1
  • 3235000168060Not stocked
    Bushing×1
  • 3315000168678Not stocked
    Coupling×1
  • 3325000168631Not stocked
    Coupling×1
  • 3415000168027Not stocked
    Elbow×1
  • 3435000168029Not stocked
    Elbow×1
  • 3485000168390Not stocked
    Nipple fitting×1
  • 3565000168056Not stocked
    Tee fitting×1
  • 5055000167704Not stocked
    Bolt×2
  • 5095000167708Not stocked
    Bolt×2
  • 5175000167692Not stocked
    Nut×2
  • 5265000167897Not stocked
    Screw×3
  • 5365000167700Not stocked
    Threaded insert×3
  • 5385000167806Not stocked
    Fender washer×2
  • 5445000167731Not stocked
    Flat washer×2
  • 5485000167736Not stocked
    Lock washer×2
  • 5585000167833Not stocked
    Fender washer×2
  • 5615000167846Not stocked
    Nut×6
  • 5635000167888Not stocked
    Lock washer×6
  • 6075000168481Not stocked
    Thermometer×1
  • 10005000182561Not stocked
    Lens×1
  • 10015000182056Not stocked
    Lens×1
