HSH350 DG,HEATER-SURFACE 50Hz

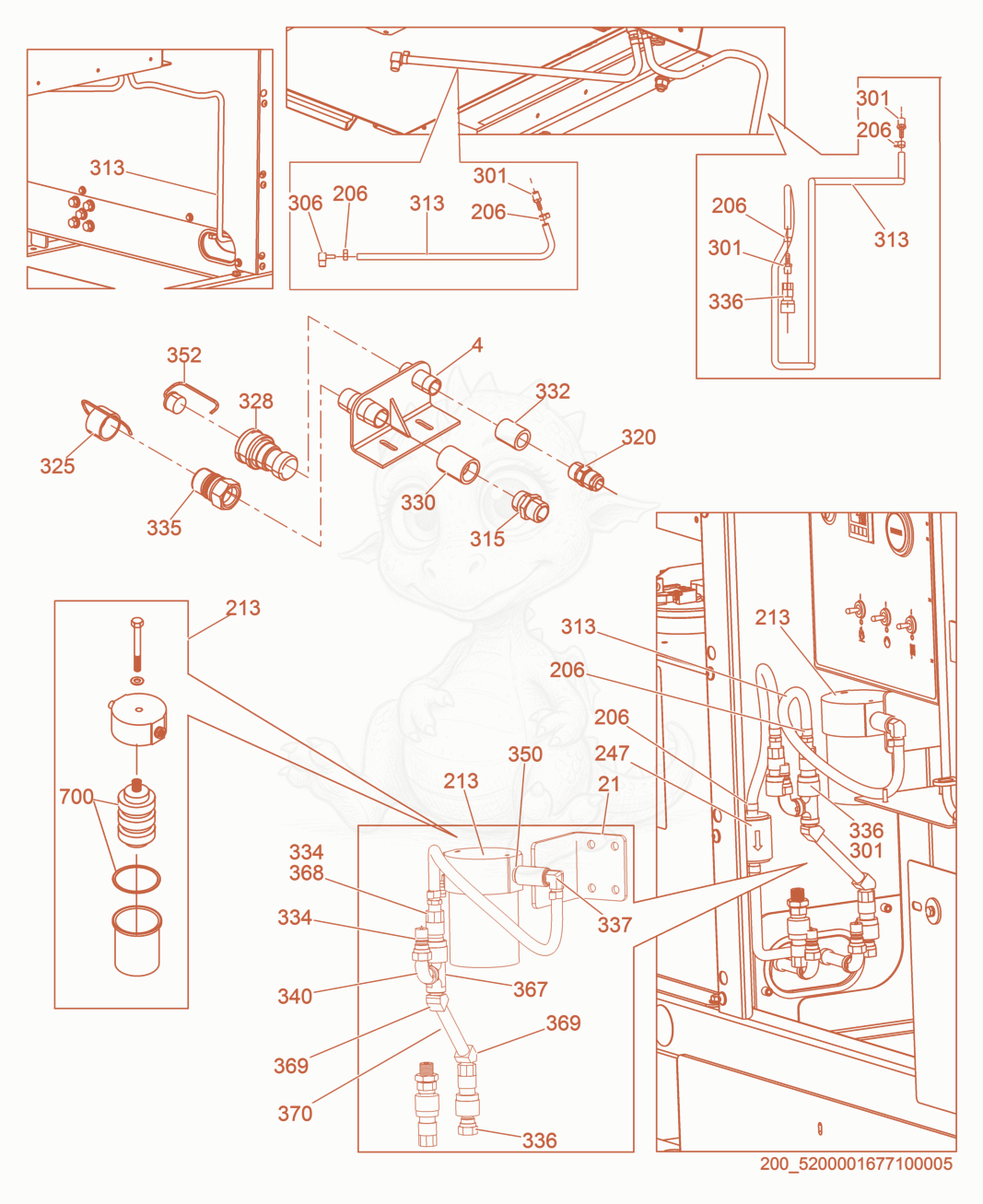

HSH350 Hydronic Piping cpl. - 1 Diagram
- 45000169536Not stockedBracket×1
- 215000168073Not stockedNipple fitting×1
- 2065000168334Not stockedClamp×6
- 2135000168078Not stockedFilter housing×1
- 2475200003942Not stockedFuel Strainer×1
- 3015000168284Not stockedHose barb×3
- 3065000168367Not stockedHose barb×1
- 3135000169397Not stockedHose×3
- 3155000168608Not stockedAdapter×1
- 3205000168393Not stockedAdapter×1
- 3255000168677Not stockedCap×1
- 3285000168213Not stockedQuick disconnect coupling×1
- 3305000168630Not stockedCoupling×1
- 3325000168631Not stockedCoupling×1
- 3345000168295Not stockedCoupling×2
- 3355000168385Not stockedCoupling×1
- 3365000168294Not stockedQuick coupler×2
- 3375000168320Not stockedElbow×1
- 3405000168031Not stockedElbow×1
- 3505000168073Not stockedNipple fitting×1
- 3525000168675Not stockedPlug×1
- 3675000168417Not stockedTee-fitting×1
- 3685000168062Not stockedNipple fitting×1
- 3695200003943Not stockedElbow fitting×2
- 3705200003944Not stockedNipple fitting×1
- 7005000168966Not stockedFilter Element Set×1
