HSH350 DG,HEATER-SURFACE 50Hz

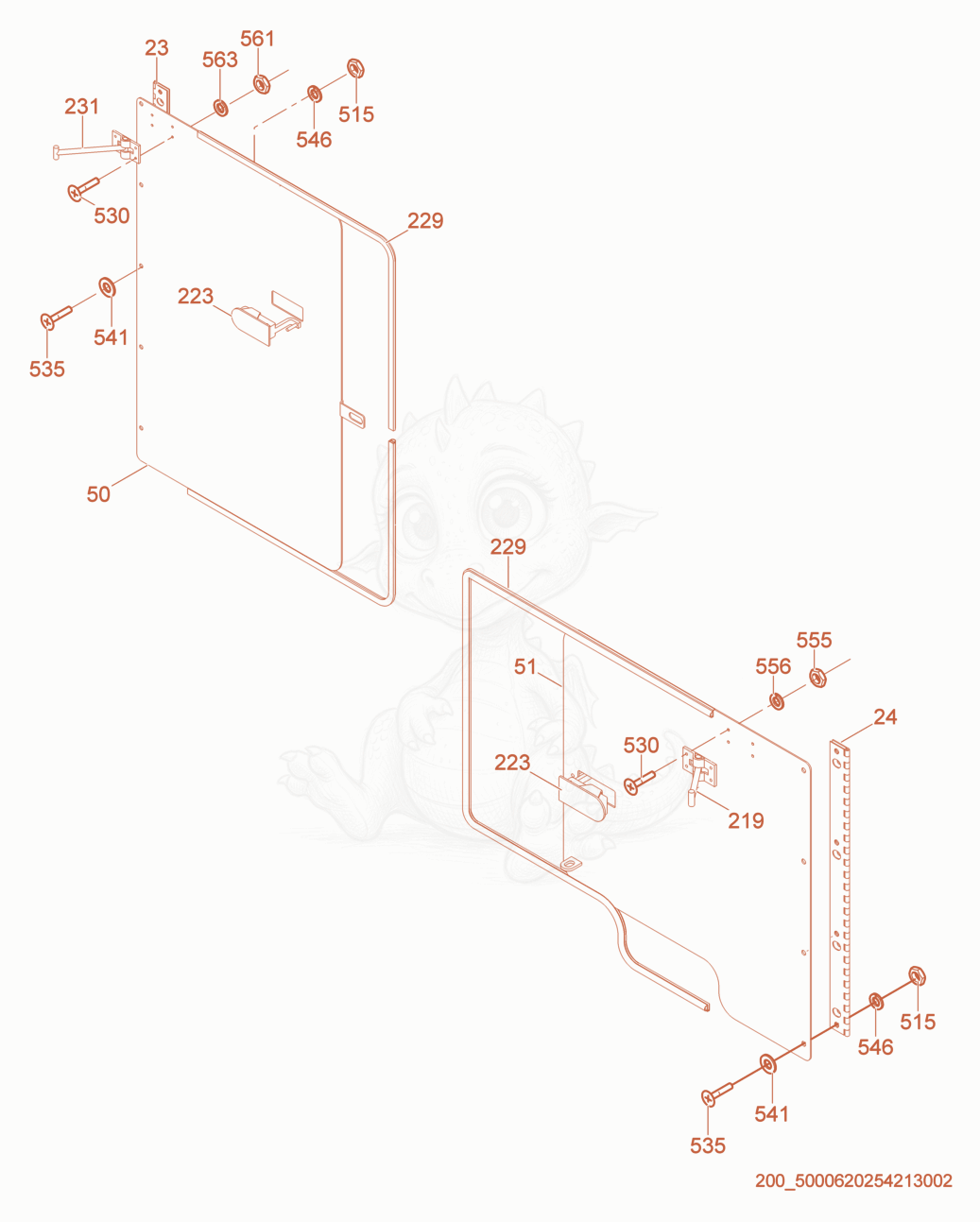

HSH350 Access Covers Diagram

Exploded parts diagram of the Access Covers of a Wacker Neuson HSH350, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 235000167075Not stocked
    Hinge×1
  • 245000167076Not stocked
    Hinge×1
  • 505000179313Not stocked
    Front door×1
  • 515000179314Not stocked
    Rear door×1
  • 2195000168400Not stocked
    Holder×1
  • 2235000168398Not stocked
    Latch×2
  • 2295000168354Not stocked
    Trim×2
  • 2315000168746Not stocked
    Holder×1
  • 5155000167690Not stocked
    Nut×9
  • 5305000167709Not stocked
    Screw×8
  • 5355000167857Not stocked
    Screw×9
  • 5415000167729Not stocked
    Flat washer×9
  • 5465000167733Not stocked
    Lock washer×9
  • 5555000167815Not stocked
    Nut×4
  • 5565000167816Not stocked
    Washer-lock×4
  • 5615000167846Not stocked
    Nut×4
  • 5635000167888Not stocked
    Lock washer×4
