HSH700

HSH700G Reservoir/Piping Diagram

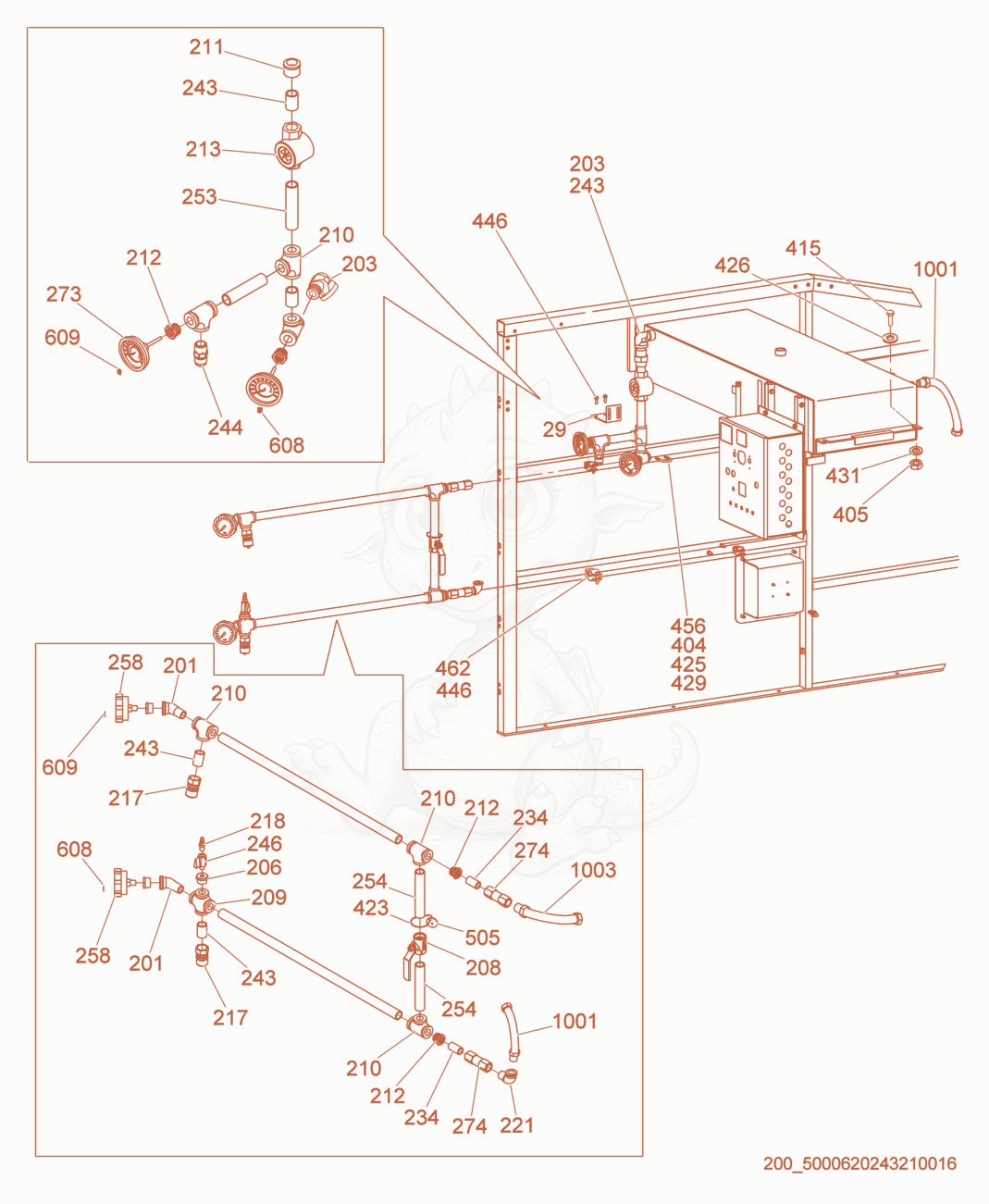

Exploded parts diagram of the Reservoir/Piping of a Wacker Neuson HSH700G, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 235000166131Not stocked
    Hose cpl.×1
  • 295000166905Not stocked
    Bracket×1
  • 2015000168026Not stocked
    Elbow×2
  • 2035000168029Not stocked
    Elbow×1
  • 2065000168035Not stocked
    Bushing×3
  • 2085000168050Not stocked
    Valve×1
  • 2095000168053Not stocked
    Cross×1
  • 2105000168056Not stocked
    Tee fitting×6
  • 2115000168058Not stocked
    Union×1
  • 2125000168060Not stocked
    Bushing×4
  • 2135000168091Not stocked
    Flow indicator×1
  • 2175000168218Not stocked
    Coupling×1
  • 2185000168218Not stocked
    Coupling×1
  • 2215000168236Not stocked
    Elbow×1
  • 2345000168353Not stocked
    Nipple fitting×2
  • 2435000168390Not stocked
    Nipple fitting×4
  • 2445000168393Not stocked
    Adapter×1
  • 2465000168437Not stocked
    Barbed hose fitting×1
  • 2535000168701Not stocked
    Nipple fitting×2
  • 2545000168702Not stocked
    Nipple fitting×2
  • 2585000168772Not stocked
    Gauge-pressure×2
  • 2735000168096Not stocked
    Thermometer×2
  • 2745000168351Not stocked
    Check valve×2
  • 4045000167690Not stocked
    Nut×2
  • 4055000167691Not stocked
    Nut×4
  • 4155000167706Not stocked
    Bolt×4
  • 4235000167727Not stocked
    Tie wire×1
  • 4255000167729Not stocked
    Flat washer×2
  • 4265000167730Not stocked
    Flat washer×4
  • 4295000167733Not stocked
    Lock washer×2
  • 4315000167735Not stocked
    Lock washer×4
  • 4465000167793Not stocked
    Screw×2
  • 4565000167841Not stocked
    U-Bolt×1
  • 4625000168016Not stocked
    Conduit hanger×4
  • 5055000168189Not stocked
    Tag No. 4×1
  • 6085000168664Not stocked
    Label-pump temperature gauge×1
  • 6095000168663Not stocked
    Label-pump temperature gauge×2
  • 10005000165978Not stocked
    Hose cpl.×1
  • 10015000166221Not stocked
    Hose cpl.×1
  • 10035000166222Not stocked
    Hose cpl.×1
