HSH700

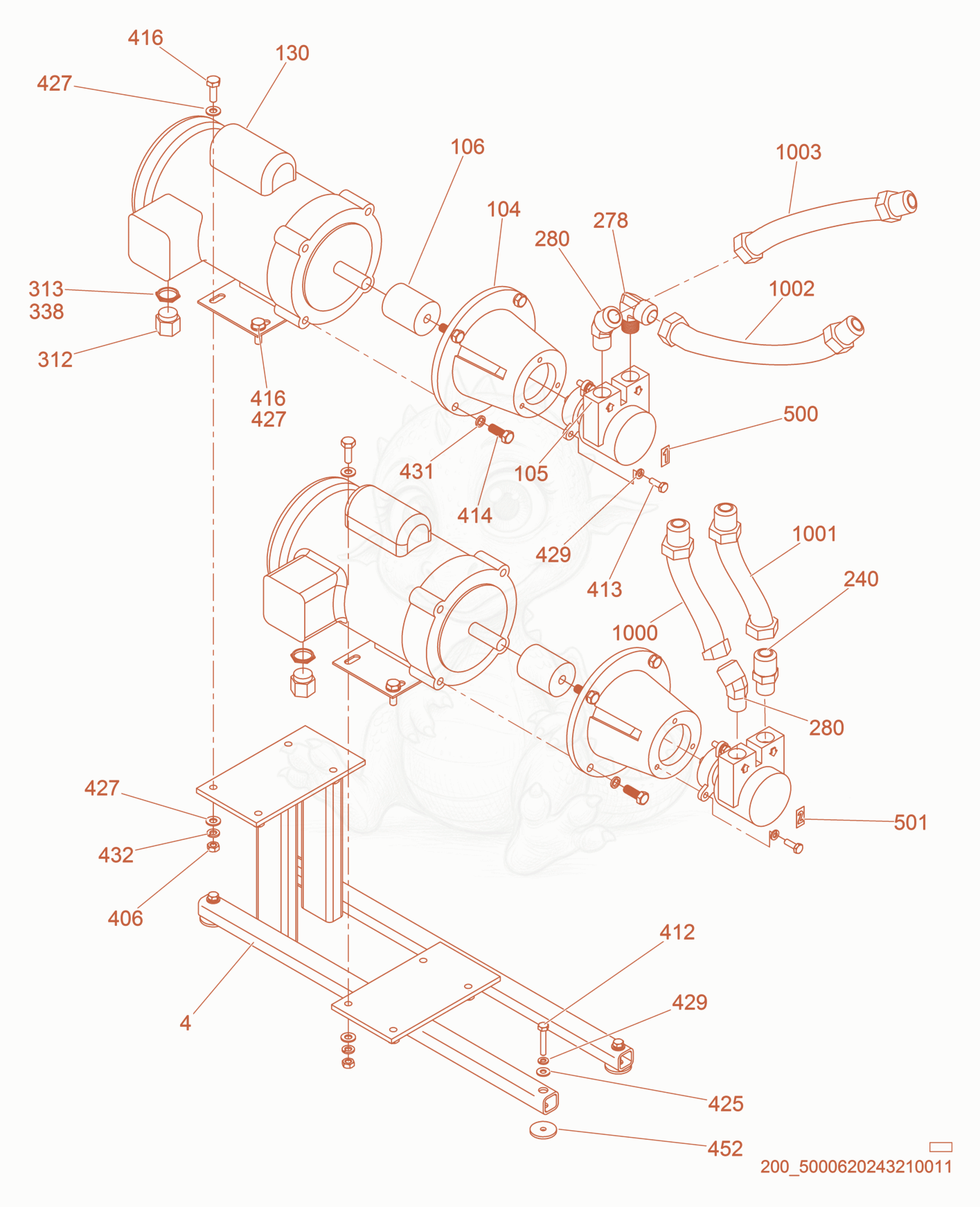

HSH700G Motor/Pump cpl. Diagram

Exploded parts diagram of the Motor/Pump cpl. of a Wacker Neuson HSH700G, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 45000169779Not stocked
    Dual pump mount×1
  • 1045000168110Not stocked
    Adapter×2
  • 1055000168277Not stocked
    Pump×2
  • 1065000168111Not stocked
    Coupling×2
  • 1305000166544Not stocked
    Motor×2
  • 2405000168373Not stocked
    Adapter×1
  • 2785000168374Not stocked
    Adapter×1
  • 2805000168409Not stocked
    Adapter×2
  • 3125000166459Not stocked
    Lock nut×2
  • 3135000166459Not stocked
    Lock nut×2
  • 3385000166833Not stocked
    Terminal×6
  • 4065000167692Not stocked
    Nut×8
  • 4125000167703Not stocked
    Bolt×4
  • 4135000167704Not stocked
    Bolt×6
  • 4145000167705Not stocked
    Bolt×8
  • 4165000167708Not stocked
    Bolt×8
  • 4255000167729Not stocked
    Flat washer×5
  • 4275000167731Not stocked
    Flat washer×16
  • 4295000167733Not stocked
    Lock washer×1
  • 4295000167733Not stocked
    Lock washer×10
  • 4315000167735Not stocked
    Lock washer×8
  • 4325000167736Not stocked
    Lock washer×8
  • 4525000167833Not stocked
    Fender washer×5
  • 5005000168626Not stocked
    Label×11
  • 5015000168627Not stocked
    Label×1
  • 10005000166221Not stocked
    Hose cpl.×1
  • 10015000166220Not stocked
    Hose cpl.×1
  • 10025000166219Not stocked
    Hose cpl.×1
  • 10035000166222Not stocked
    Hose cpl.×1
