HSH700

HSH700G Mounting frame Diagram

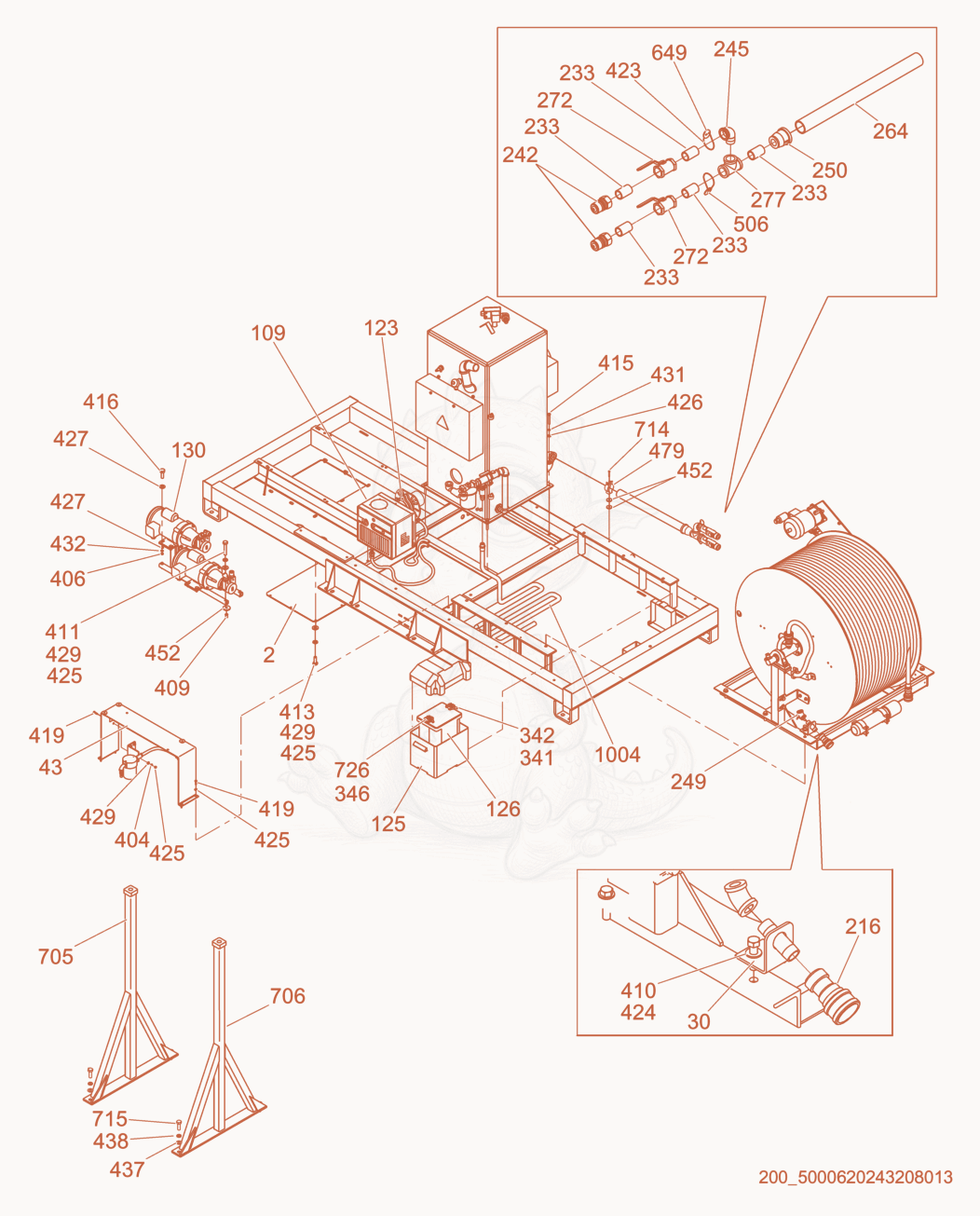

Exploded parts diagram of the Mounting frame of a Wacker Neuson HSH700G, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000180530Not stocked
    Cover plate×1
  • 305000169689Not stocked
    Bracket×1
  • 435000169778Not stocked
    Bracket×1
  • 1095000168077Not stocked
    Burner×1
  • 1235000168773Not stocked
    Spacer plates×2
  • 1255000168169Not stocked
    Battery box×1
  • 1265000165552
    $479.41
    BATTERY-12V SEALED - 5000165552×1
  • 1305000166544Not stocked
    Motor×2
  • 2165000168213Not stocked
    Quick disconnect coupling×1
  • 2295000168294Not stocked
    Quick coupler×2
  • 2335000168331Not stocked
    Nipple fitting×7
  • 2425000168385Not stocked
    Coupling×2
  • 2455000168403Not stocked
    Elbow fitting×1
  • 2495000168498Not stocked
    Elbow×2
  • 2505000168634Not stocked
    Coupling×1
  • 2645000169413Not stocked
    Pipe×1
  • 2725000168330Not stocked
    Valve×2
  • 2775000168326Not stocked
    Tee-fitting×1
  • 2815000168774Not stocked
    Adapter×2
  • 3085000166647Not stocked
    Positive battery cable, red×1
  • 3095000166648Not stocked
    Negative battery cable×1
  • 3245000166800Not stocked
    Cable×2
  • 3415000166649Not stocked
    Ring terminal×3
  • 3425000166650Not stocked
    Terminal×1
  • 3435000166686Not stocked
    Boot, insulated wire, black×1
  • 3445000166687Not stocked
    Boot, insulated wire, red×1
  • 3465000180004Not stocked
    Terminal×1
  • 3475000173287Not stocked
    Fitting×2
  • 3485000173286Not stocked
    Sleeve×2
  • 4045000167690Not stocked
    Nut×8
  • 4065000167692Not stocked
    Nut×8
  • 4095000167700Not stocked
    Threaded insert×4
  • 4105000167701Not stocked
    Bolt×6
  • 4115000167702Not stocked
    Bolt×4
  • 4135000167704Not stocked
    Bolt×7
  • 4155000167706Not stocked
    Bolt×4
  • 4165000167708Not stocked
    Bolt×8
  • 4195000167721Not stocked
    Bolt×8
  • 4235000167727Not stocked
    Tie wire×1
  • 4245000167728Not stocked
    Flat washer×6
  • 4255000167729Not stocked
    Flat washer×20
  • 4265000167730Not stocked
    Flat washer×4
  • 4275000167731Not stocked
    Flat washer×19
  • 4295000167733Not stocked
    Lock washer×19
  • 4305000167734Not stocked
    Lock washer×6
  • 4315000167735Not stocked
    Lock washer×4
  • 4325000167736Not stocked
    Lock washer×8
  • 4375000167760Not stocked
    Washer-flat×4
  • 4385000167762Not stocked
    Washer-lock×4
  • 4465000167793Not stocked
    Screw×4
  • 4525000167833Not stocked
    Fender washer×2
  • 4795000167733Not stocked
    Lock washer×1
  • 4815000168615Not stocked
    Grommet×2
  • 5065000168186Not stocked
    Tag No. 1×1
  • 6495000168190Not stocked
    Tag No. 5×1
  • 7055000169574Not stocked
    Lifting bail×1
  • 7065000169575Not stocked
    Lifting bail×1
  • 7145000167929Not stocked
    Screw×1
  • 7155000167763Not stocked
    Bolt×4
  • 7265200000290
    $2.75
    Eyelet-Crimp, 1/0 Ga, CU, 3/8 Hole - 5200000290×1
  • 10045000165632Not stocked
    Fill hose cpl.×1
