HSH700

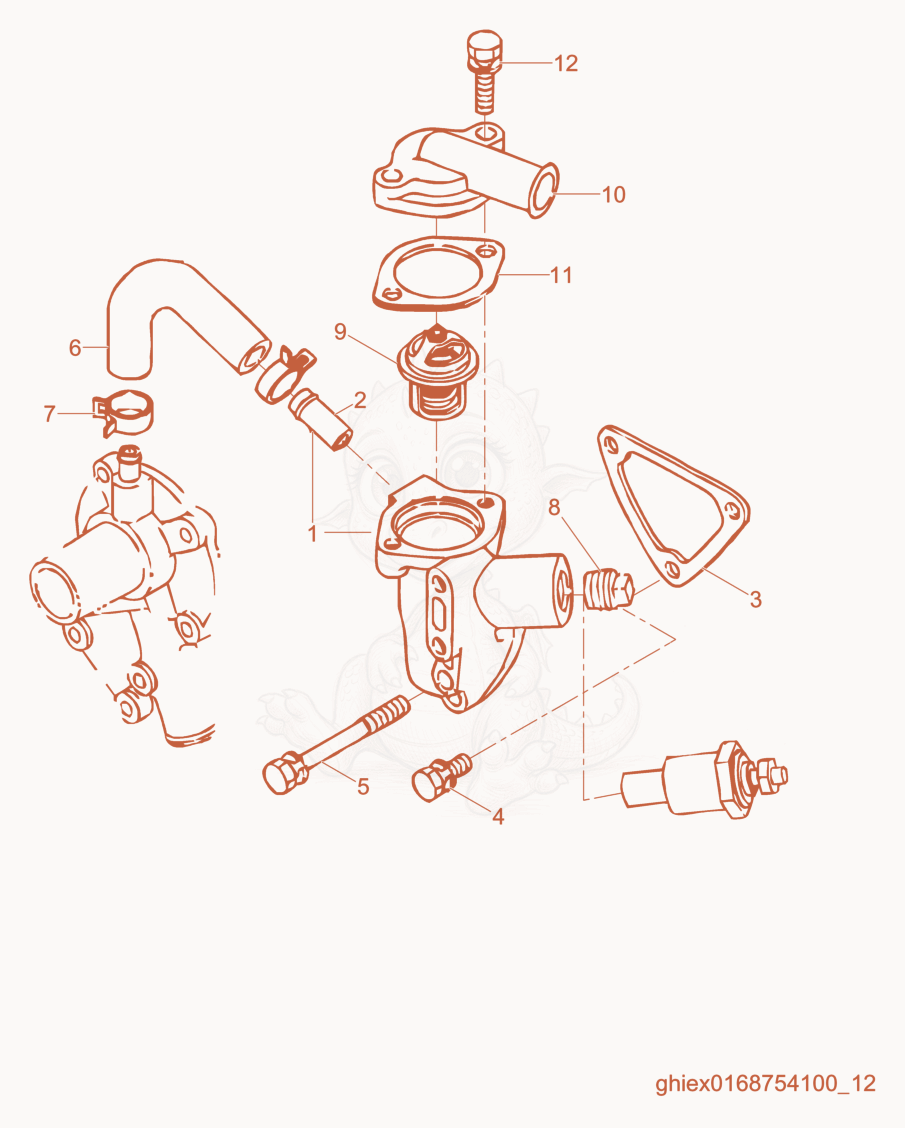

HSH700G Water Manifold Diagram

Exploded parts diagram of the Water Manifold of a Wacker Neuson HSH700G, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000176573Not stocked
    Flange×1
  • 25000176574Not stocked
    Return pipe×1
  • 35000176575Not stocked
    Gasket×1
  • 45000176576Not stocked
    Bolt×2
  • 55000176577Not stocked
    Bolt×1
  • 65000176578Not stocked
    Return pipe×1
  • 75000176579Not stocked
    Hose clamp×2
  • 85000176580Not stocked
    Plug×1
  • 95000176581Not stocked
    Thermostat×1
  • 105000176582Not stocked
    Thermostat cover×1
  • 115000176583Not stocked
    Gasket×1
  • 125000176584Not stocked
    Bolt×2
  • 135000176585Not stocked
    Temperature sender×1
