RC110

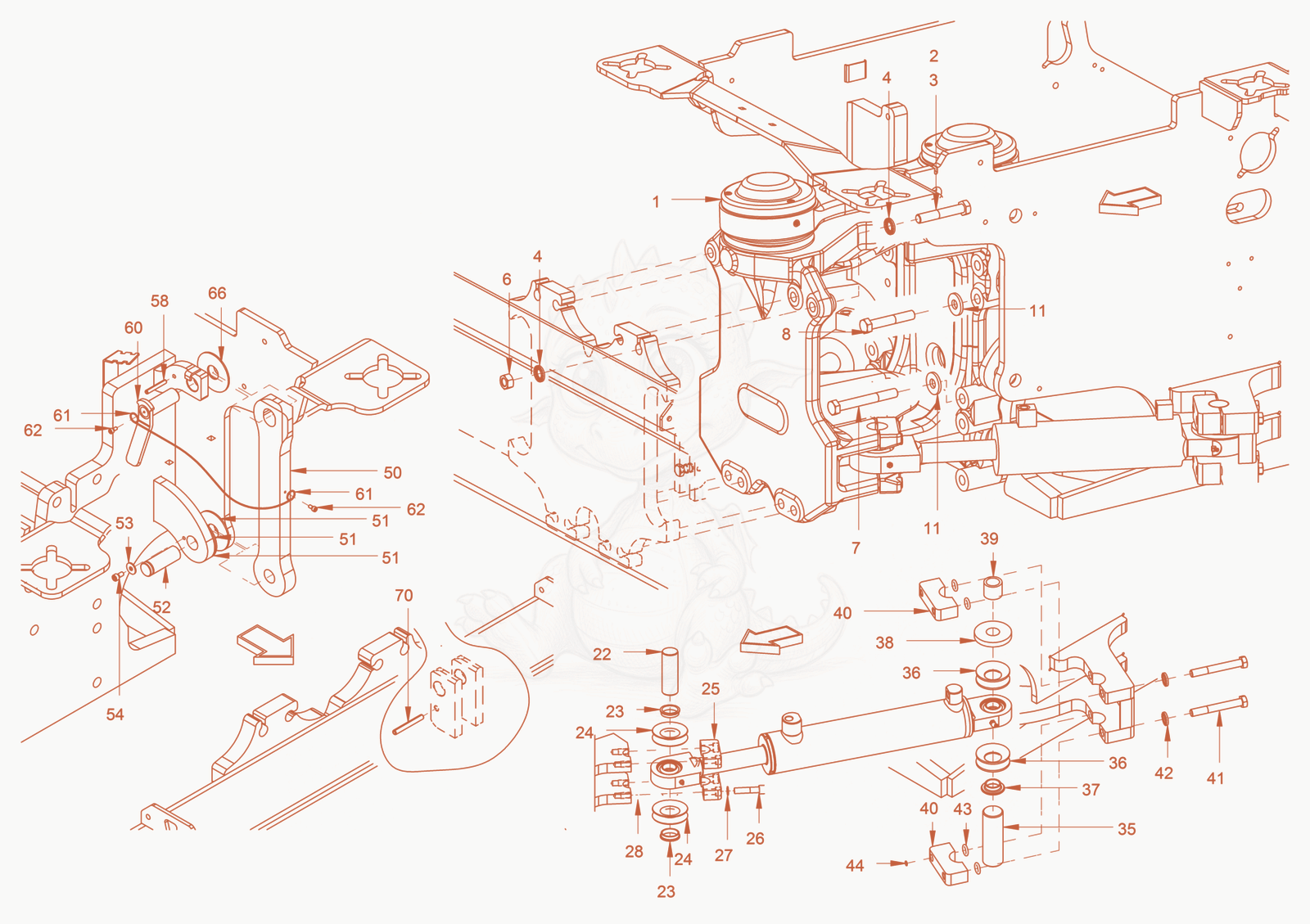

RC110 centre pivot assembly Diagram
- centre pivot assembly - 5100035563×1
- hexagon screw - 5100035564×4
- hexagon screw - 5100035565×4
- Locking washer - 5100012955×16
- Hexagon nut - 5100012550×8
- hexagon screw - 5100035566×4
- hexagon screw - 5100035567×4
- Locking washer - 5100012955×8
- bolt - 5100035568×2
- distance ring - 5100035569×4
- Seal - 5100011729×4
- clamping piece - 5100035570×4
- cheese-head screw - 5100022918×8
- Locking washer - 5100011536×8
- o-ring seal - 5100035571×8
- bolt - 5100035572×2
- Seal - 5100011729×4
- distance ring - 5100035573×2
- distance ring - 5100035574×2
- bushing - 5100035575×2
- clamping piece - 5100035576×4
- hexagon screw M16x150 10.9 - 5100022986×8
- Locking washer - 5100012969×8
- o-ring seal - 5100035571×8
- filler cap - 5100035577×8
- safety strut - 5100035578×1
- rubber washer - 5100035579×3
- bolt - 5100035580×1
- Washer - 5100013421×1
- Cheese-head screw - 5100012705×1
- clamping sleeve - 5100035581×1
- bolt - 5100035582×1
- safety cord - 5100035583×1
- fillister head screw - 5100035317×2
- rubber washer - 5100035579×1
- clamping sleeve - 5100035584×1
