RC110

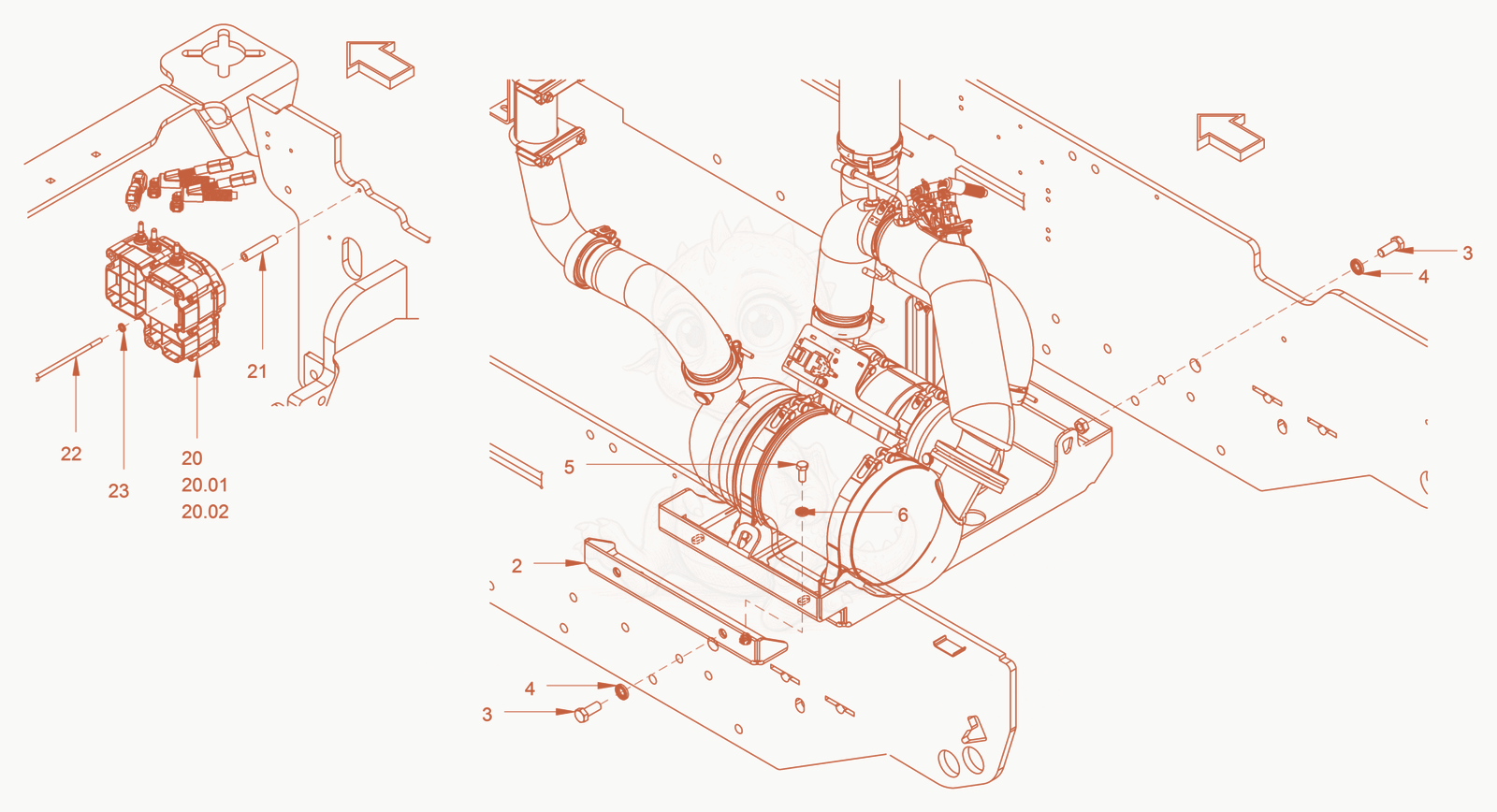

RC110 exhaust aftertreatment Diagram

Exploded parts diagram of the exhaust aftertreatment of a Wacker Neuson RC110, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100034952Not stocked
    angle bracket×1
  • 35100011473
    $4.80
    Hexagon screw - 5100011473×4
  • 45100012969
    $3.15
    Locking washer - 5100012969×4
  • 55100012626
    $1.57
    Hexagon screw - 5100012626×2
  • 65100016501
    $3.84
    Washer - 5100016501×2
  • 205100034953
    $9,714.21
    delivery pump - 5100034953×1
  • 205100034954
    $263.02
    Filter Insert - 5100034954×1
  • 205100034955
    $131.59
    lid - 5100034955×1
  • 215100034956Not stocked
    distance bush×3
  • 225100012297
    $1.98
    Hexagon screw - 5100012297×3
  • 235100012966
    $1.57
    Locking washer - 5100012966×3
