RC110 fuel system Diagram

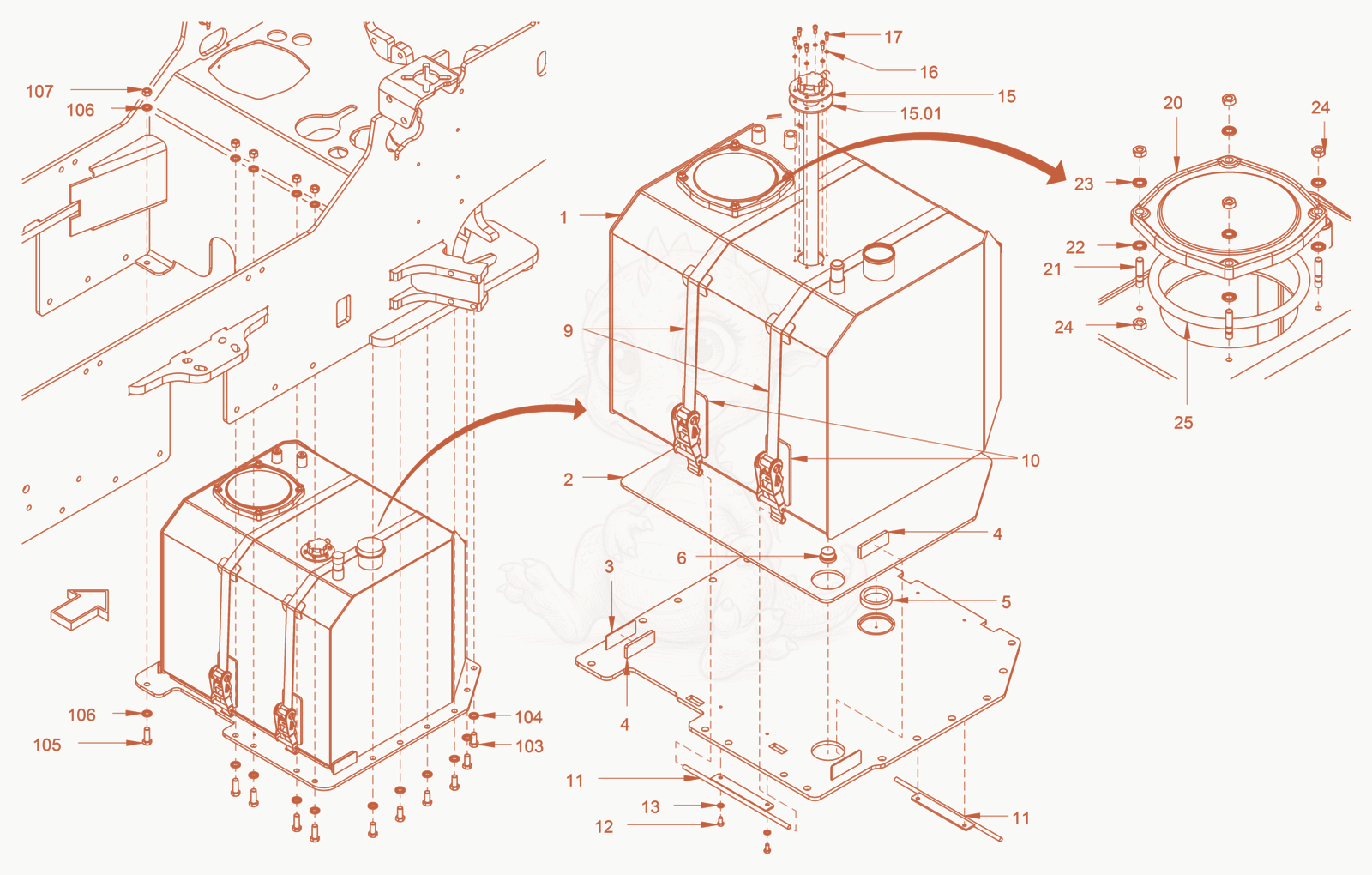

Exploded parts diagram of the fuel system of a Wacker Neuson RC110, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100034883Not stocked
    fuel tank×1
  • 25100034884Not stocked
    supporting plate×1
  • 35100034885Not stocked
    protecting sheet×1
  • 45100034886Not stocked
    supporting plate×2
  • 55100034887Not stocked
    supporting plate×1
  • 65100023170
    $28.68
    locking screw - 5100023170×1
  • 95100034888Not stocked
    lashing strap×2
  • 105100034889Not stocked
    supporting plate×1
  • 115100034890Not stocked
    holder system×2
  • 125100012515
    $1.49
    Hexagon screw - 5100012515×4
  • 135100012966
    $1.57
    Locking washer - 5100012966×4
  • 155100034892
    $563.95
    fuel level sensor - 5100034892Unknown×1
  • 155100034891Not stocked
    sealing×1
  • 165100013502
    $1.57
    Sealing ring - 5100013502×6
  • 175100011443
    $1.57
    Cheese-head screw - 5100011443×6
  • 205100022971
    $330.78
    lid - 5100022971×1
  • 215100012978
    $5.10
    Stud bolt - 5100012978×4
  • 225100012967
    $1.57
    Locking washer - 5100012967×4
  • 235100012967
    $1.57
    Locking washer - 5100012967×4
  • 245100012547
    $1.49
    Hexagon nut - 5100012547×8
  • 255100022972
    $34.96
    o-ring seal - 5100022972×1
  • 1035100034690
    $3.84
    hexagon screw - 5100034690×12
  • 1045100012969
    $3.15
    Locking washer - 5100012969×12
  • 1055100023047
    $4.80
    hexagon screw - 5100023047×5
  • 1065100012969
    $3.15
    Locking washer - 5100012969×10
  • 1075100012405
    $3.37
    Hexagon nut - 5100012405×5
