RC110

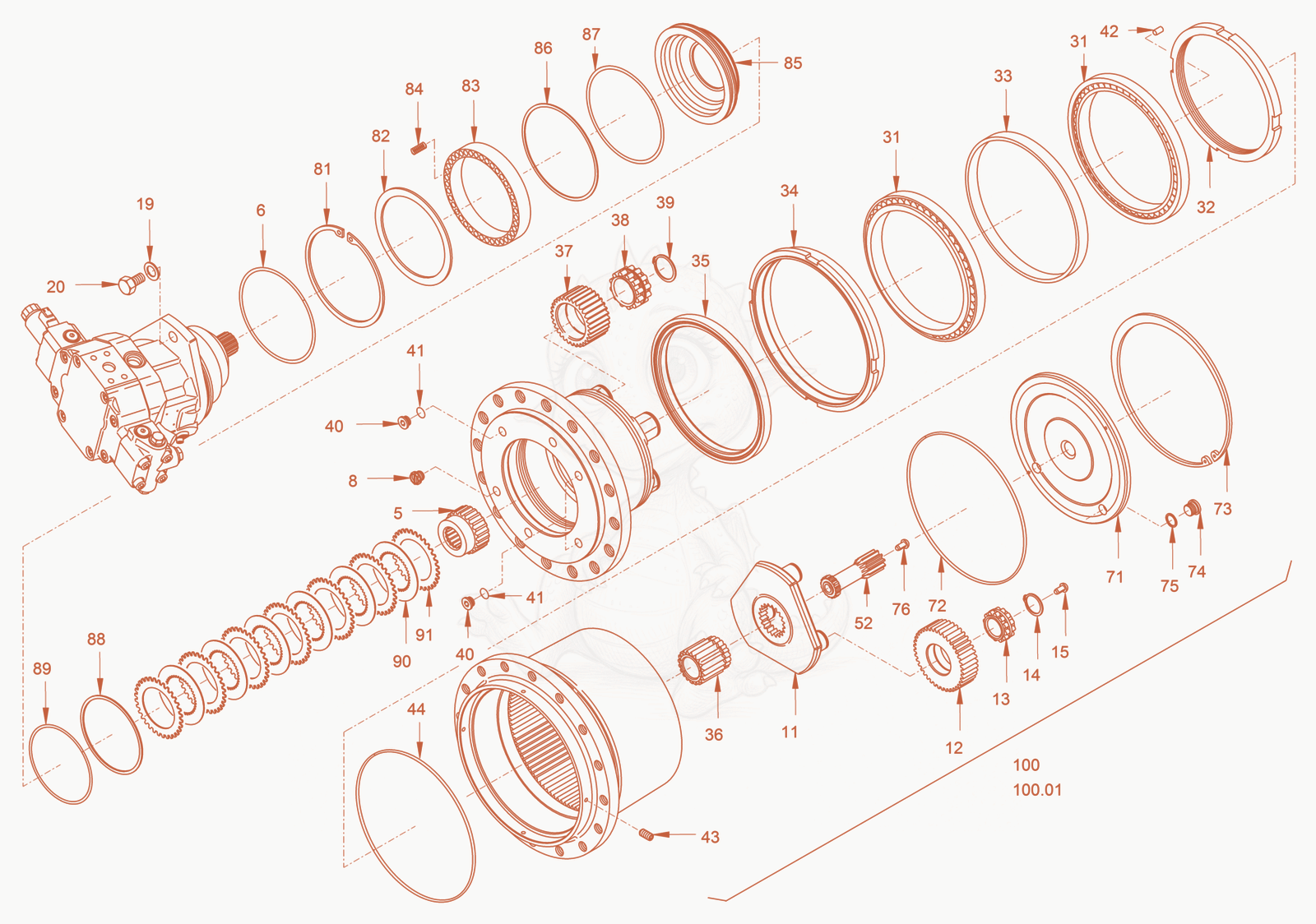

RC110 wheel gear Diagram
- 55100035123Not stockeddriver×1
- o-ring seal - 5100035124×1
- filler cap - 5100035125×1
- 115100035126Not stockedplanet carrier×1
- planetary wheel - 5100035127×3
- cylindrical roller bearing - 5100035128×3
- 145100035129Not stockedcirclip×3
- 155100035130Not stockedgrooved pin×3
- Washer M16 - 5100013413×2
- hexagon screw - 5100034690×2
- taper roller bearing - 5100035131×2
- shaft nut - 5100035132×1
- 335100035133Not stockedintermediate ring×1
- 345100035134Not stockedring×1
- sealing - 5100035135×1
- 365100035136Not stockedsun wheel×1
- 375100035137Not stockedplanetary wheel×4
- cylindrical roller bearing - 5100035138×4
- 395100035139Not stockedcirclip×4
- locking screw - 5100035140×3
- sealing ring - 5100035141×3
- straight pin - 5100035142×2
- 435100035143Not stockedthreaded pin×4
- o-ring seal - 5100035144×1
- 525100035145Not stockedsun wheel×1
- 715100035146Not stockedlid×1
- o-ring seal - 5100035144×1
- 735100035147Not stockedcirclip×1
- 745100035148Not stockedlocking screw×2
- sealing ring - 5100035149×2
- 765100035130Not stockedgrooved pin×1
- circlip - 5100035150×1
- 825100035151Not stockedwasher×1
- intermediate ring - 5100035152×1
- 845100035153Not stockedcompression spring×30
- 855100035154Not stockedpiston×1
- supporting ring - 5100035155×1
- o-ring seal - 5100035156×1
- supporting ring - 5100035157×1
- o-ring seal - 5100035158×1
- brake disc internal - 5100035159×6
- brake disc external - 5100035160×7
- wheel gear - 5100035161×1
- sealing set (wheel gear) - 5100035162×1
