RC110p CAB

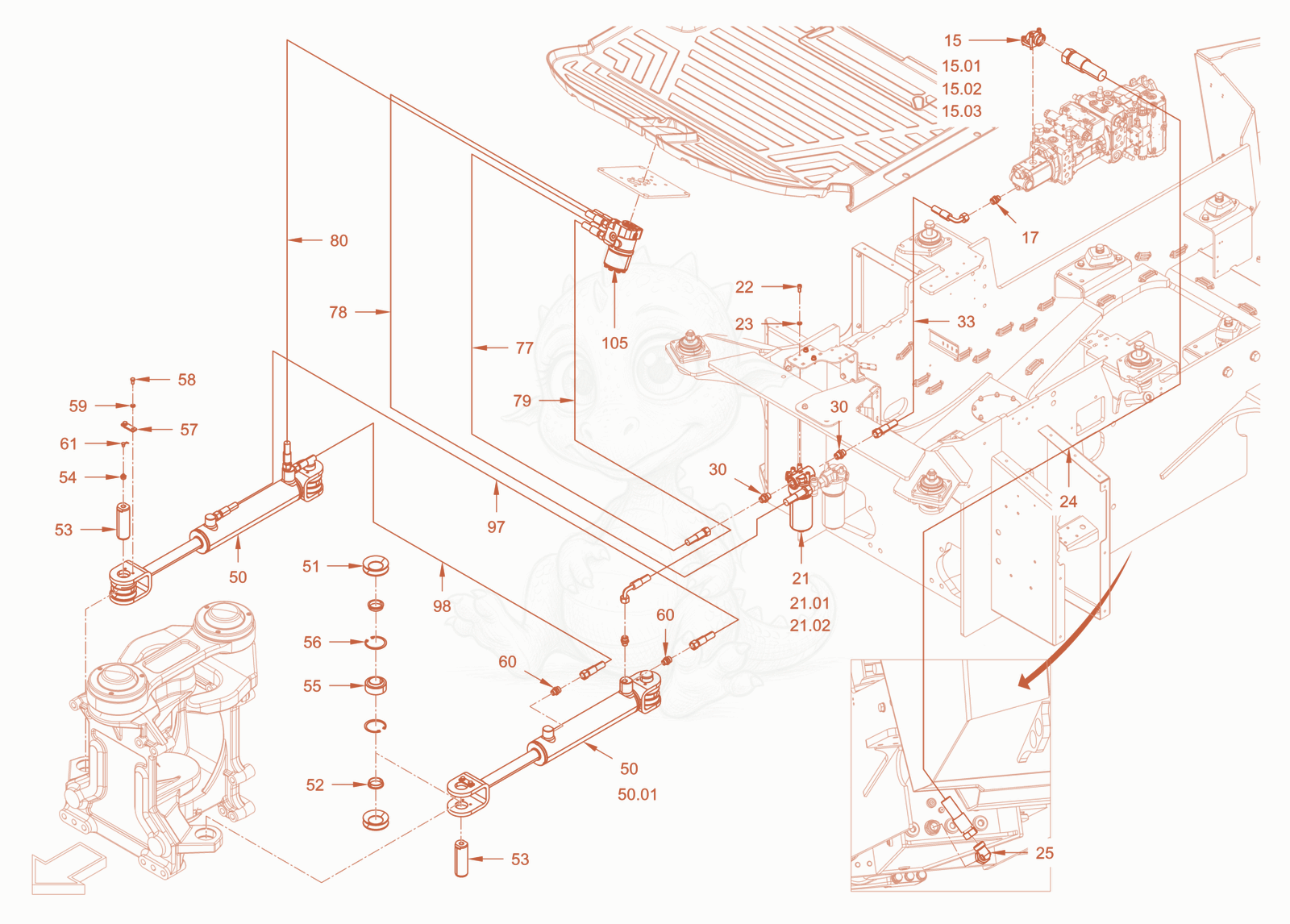

RC110PCAB steering Diagram
- Cheese-head screw - 5100012727Unknown×2
- Cheese-head screw - 5100013512Unknown×2
- 155100064095Not stockedo-ring seal×1
- 155100064096Not stockedangle flange screwing×1
- Straight screwed socket - 5100013473×1
- 215100039074Not stockedSet Of Seals×1
- pressure filter - 5100063875×1
- filter insert - 5100063876×1
- Cheese-head screw - 5100012724×3
- Locking washer - 5100012966×3
- 245100074941Not stockedhose×1
- elbow adjustable - 5100022892×1
- Straight screwed socket - 5100012190×2
- 335100074967Not stockedhose×1
- set of seals - 5100023108Unknown×1
- 505100078855Not stockedhydraulic cylinder×2
- 515100074979Not stockedsealing ring×8
- 525100074988Not stockeddistance ring×8
- 535100074993Not stockedbolt×4
- 545100075000Not stockedgreasing nipple×4
- 555100075004Not stockedradial rod end bearing×4
- 565100075007Not stockedcirclip×8
- 575100023169Not stockedMetal plate×4
- Hexagon screw - 5100012515×8
- Locking washer - 5100012966×8
- Straight screwed socket - 5100013473×6
- 615100074854Not stockedcap×4
- 775100075012Not stockedhose×1
- 785100075016Not stockedhose×1
- 795100075025Not stockedhose×1
- 805100075030Not stockedhose×1
- 975100075038Not stockedhose×1
- 985100075038Not stockedhose×1
- 1055100074914Not stockedsteering unit×1
