RC110p CAB

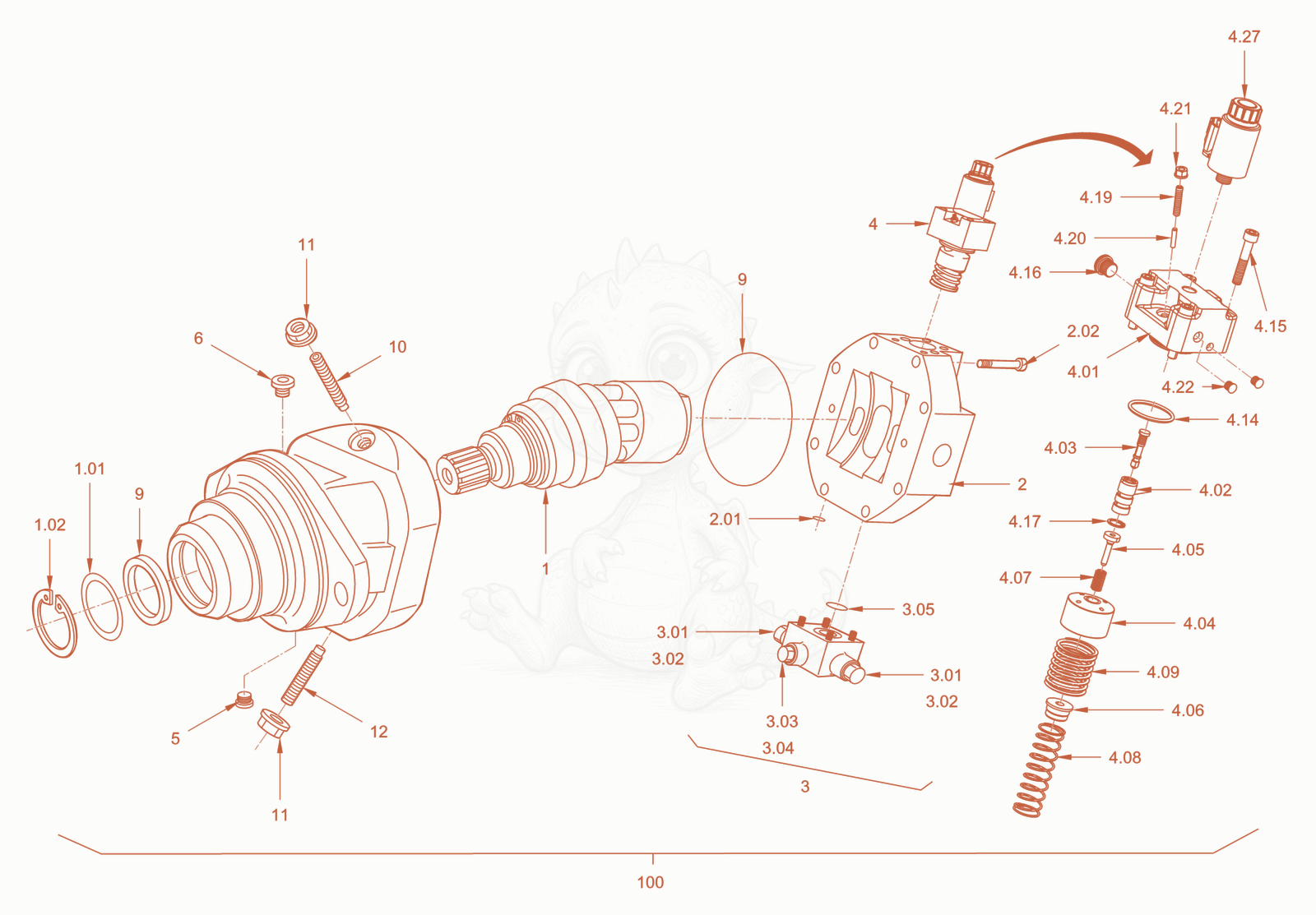

RC110PCAB variable displacement motor Diagram
- 15100078979Not stockedcirclip×1
- 15100078983Not stockedsupport disc×1
- 15100078988Not stockeddriving gear×1
- 25100067840Not stockedo-ring seal×6
- 25100078991Not stockedend plate×1
- 25100078993Not stockedcheese-head screw×8
- o-ring seal - 5100035182Unknown×1
- o-ring seal - 5100035183Unknown×2
- 35100070721Not stockedlocking screw×2
- 35100074737Not stockedo-ring seal×1
- 35100078998Not stockedlocking screw×1
- 35100079004Not stockedflush valve×1
- 45100079032Not stockedcontrol module×1
- 45100079030Not stockedhousing×1
- 45100079028Not stockedstraight pin×1
- 45100079025Not stockedcompression spring×1
- 45100079021Not stockedcompression spring×1
- 45100079018Not stockedspring plate×1
- 45100079010Not stockedbushing×1
- 45100035207Not stockedbung×2
- threaded pin - 5100035205×1
- 45100035204Not stockedcirclip×1
- compression spring - 5100035200×1
- 45100035198Not stockedspring plate×1
- piston valve - 5100035196×1
- 45100035195Not stockedcontrol bush×1
- 45100035185Not stockedlocking screw×1
- magnet - 5100023186×1
- O-ring seal - 5100013549×1
- Seal nut - 5100013547×1
- Cheese-head screw - 5100012509×4
- 55100079034Not stockedlocking screw×1
- 65100064024Not stockedlocking screw×1
- 95100079037Not stockedset of seals×1
- 105100079040Not stockedthreaded pin×1
- 115100079049Not stockedseal nut×2
- 125100079040Not stockedthreaded pin×2
- 1005100074691Not stockedhydraulic motor×1
