RC110p CAB

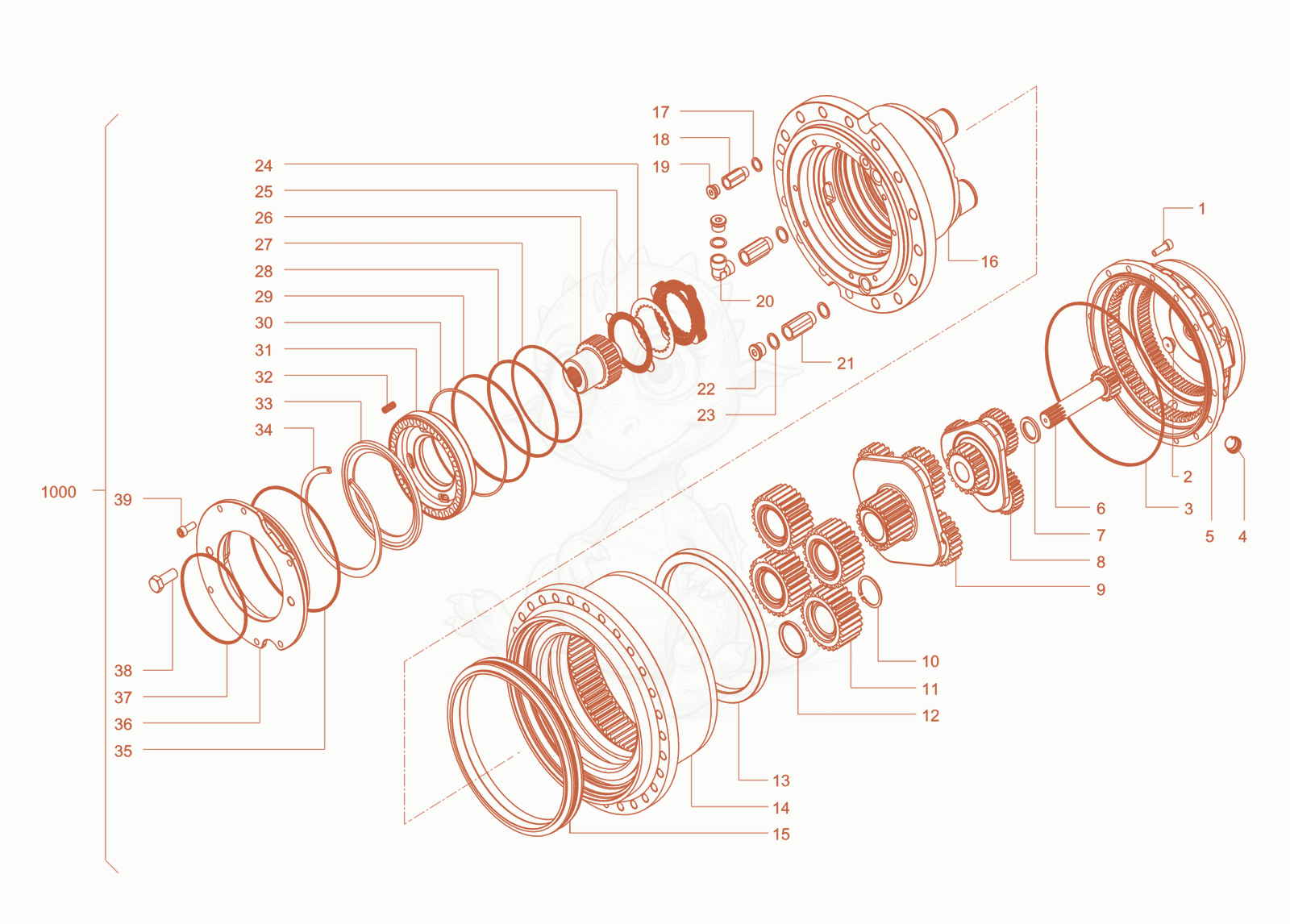

RC110PCAB wheel gear Diagram
- Cheese-head screw - 5100013450×13
- 25100075095Not stockedstop washer×1
- 35100075077Not stockedo-ring seal×1
- 45100075073Not stockedlocking screw×2
- 55100074462Not stockedlid×1
- 65100074464Not stockedpinion shaft×1
- 75100074468Not stockedcentering ring×1
- 85100074474Not stockedsun wheel×1
- 95100075113Not stockedsun wheel×1
- Locking ring - 5100012950×4
- 115100075118Not stockedplanetary wheel×4
- 125100075120Not stockeddistance ring×4
- 135100075122Not stockednut×1
- 145100074477Not stockedhousing×1
- 155100074481Not stockedsealing×1
- 165100074494Not stockedhub×1
- 175100075162Not stockedwasher×1
- 185100075165Not stockedextension×1
- 195100075167Not stockedlocking screw×1
- 205100075159Not stockedsocket×1
- 215100075151Not stockedextension×2
- 225100075155Not stockedlocking screw×2
- 235100075147Not stockedwasher×4
- 245100075170Not stockedwasher×6
- 255100075174Not stockedwasher×7
- 265100074514Not stockedplanetary wheel×1
- 275100074499Not stockedring×1
- 285100074471Not stockedo-ring seal×1
- 295100074537Not stockedo-ring seal×1
- 305100074724Not stockedring×1
- 315100074852Not stockedbrake piston×1
- 325100074943Not stockedspring×18
- 335100074997Not stockedthrust washer×1
- 345100075086Not stockedcirclip×1
- 355100075125Not stockedo-ring seal×1
- 365100074435Not stockedflange×1
- o-ring seal - 5100035124×1
- Hexagon screw - 5100011473×2
- Cheese-head screw - 5100013463×6
- 10005100074518Not stockedwheel gear×1
